Product Overview

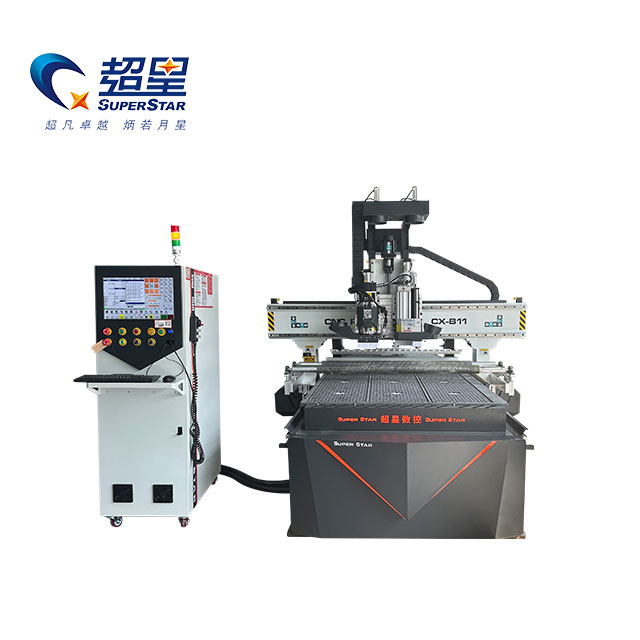

The Superstar CX-B11 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the ultimate solution for factories transitioning to automated panel processing. Standard single-spindle CNC routers require manual tool swaps between cutting profiles and drilling hinge holes, resulting in significant downtime. The CX-B11 solves this by pairing a linear Automatic Tool Changer (ATC) with an independent drilling row.
Constructed on a heavily tempered, seamlessly welded steel frame weighing 2,500 KG, the machine absorbs all operational vibrations. This immense structural rigidity guarantees that the high-speed spindle (rotating up to 18,000 RPM) maintains pinpoint accuracy during aggressive multi-pass cuts on dense materials like solid wood, thick MDF, and epoxy resins.
Core Advantages
Dual-Function Machining: The integration of an ATC spindle and a dedicated multi-bit drilling unit allows the machine to switch instantly between cutting dadoes and punching dowel holes without returning to the tool magazine, doubling production speed.
High-Adhesion Vacuum Table: Equipped with a powerful 7.5KW water-circulation vacuum pump, the multi-zone table aggressively grips porous materials like MDF and particleboard, preventing any panel shifting during high-speed routing.
Precision Drive System: Powered by top-tier 1.5KW Servo motors paired with high-precision helical rack and pinion transmission on the X/Y axes (and a ball screw on the Z axis), ensuring ultra-smooth travel and exact repeatability.
Intelligent Control Integration: The highly intuitive Taiwan LNC-2200 control system seamlessly interprets G-code from major nesting software, optimizing cutting paths and minimizing material waste.
Technical Parameters
Feature | Specification |
Model | CX-B11 (1325) |
Brand | Superstar CNC |
Working Area (X × Y × Z) | 1300 mm × 2500 mm × 200 mm |
Spindle Motor | 9KW Air Cooling ATC Spindle |
Spindle Rotation Speed | 18,000 RPM / min |
Drilling Unit | Independent Vertical Drill Bank |
Control System | Taiwan LNC-2200 |
Drive Motors | 1.5KW Servo Motor |
Inverter | 11KW Inverter |
Transmission Structure | X/Y Rack Rail; Z Screw Rail |
Linear Guide Rails | Taiwan Square Rails (Y: 30mm, X/Z: 25mm) |
Worktable Structure | Vacuum Adsorption Table |
Vacuum Pump | 7.5KW |
Working Voltage | AC 380V / 50Hz |
Machine Weight | 2500 KGS |
Dimensions (L×W×H) | 3500 × 2250 × 2300 mm |
Detailed Component Analysis
Provides massive torque for cutting through thick hardwoods and composite boards. The air-cooling mechanism eliminates the need for water chillers, simplifying daily maintenance in cold-weather factory environments.
The gantry rides on oversized premium Taiwan square guide rails (30mm on the Y-axis), bearing the heavy load of the spindle and drilling unit while delivering frictionless, high-speed movement.
Operating on an 11KW total input power requirement, the machine utilizes highly flexible, shielded domestic first-line cables to prevent electrical interference and signal drops during continuous multi-shift operations.
Applicable Industries & Materials
Panel Furniture & Cabinetry: High-volume nesting, cutting, and drilling of custom wardrobes, kitchen cabinets, sliding doors, and soft-bag furnishings.
Wooden Products & Millwork: Manufacturing speaker boxes, game cabinets, computer desks, and solid wood interior doors.
Board & Synthetic Processing: Precision routing of insulation parts, PCB boards, carbon compounds (epoxy resin), ABS, PP, PE, PVC, and fiberglass.
Why Choose Superstar CNC?
Factory Direct Economics: As a direct manufacturer, we offer industrial-grade CNC nesting centers with high-end imported components (LNC, Taiwan Rails) at a highly competitive price point compared to European brands.
Heavy-Duty Integrity: At 2.5 tons, this is not a lightweight hobby router. It is a heavy-duty industrial workhorse built to survive harsh manufacturing environments 24/7.
Global Export Support: With exports to over 114 countries, we provide comprehensive English technical support, rigorous factory test reports, and highly accessible replacement parts.
Frequently Asked Questions
Q: Can I process standard 4x8 ft plywood sheets on this machine?
A: Yes, the 1300mm x 2500mm (approximately 4x8 ft) working area is specifically designed to accommodate standard-sized MDF, plywood, and particleboard sheets with room to spare for clamping and edge clearance.
Q: Does the machine require manual intervention to change tools?
A: No. The machine utilizes a linear Automatic Tool Changer (ATC). The G-code commands the spindle to automatically drop its current profile bit and pick up a new one from the tool magazine in seconds.
Q: What design software is compatible with this control system?
A: The Taiwan LNC control system is highly versatile and accepts standard G-code from all major nesting and CAD/CAM software, including Cabinet Vision, Mozaik, WoodWOP, and ArtCAM.
