Product Overview

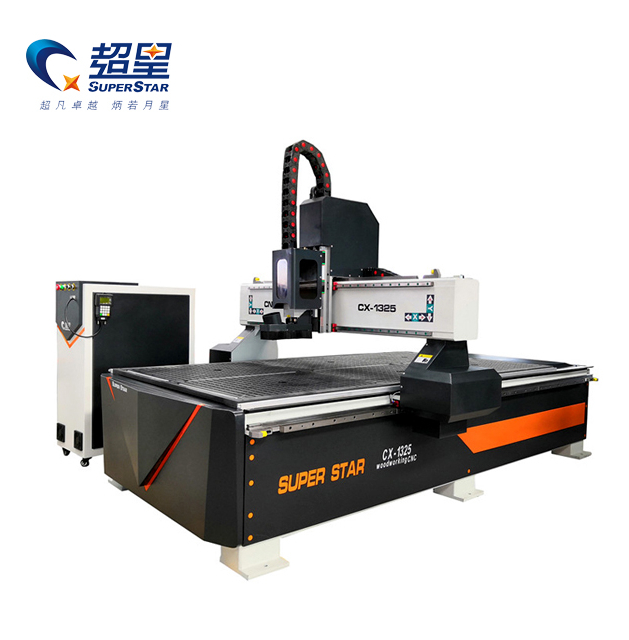

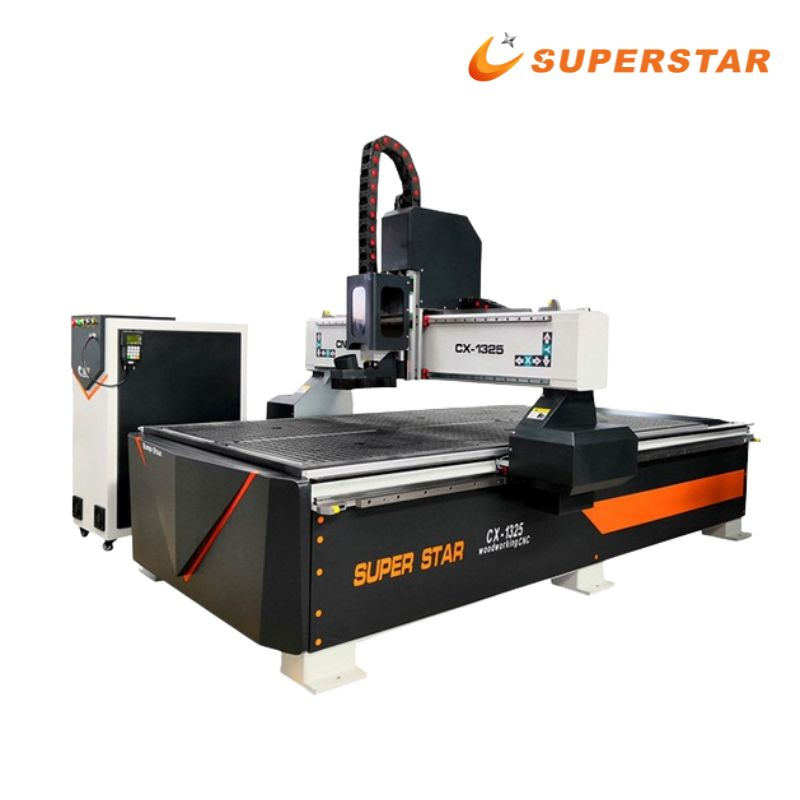

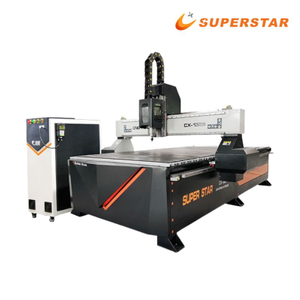

The Superstar CX-1325 Single Head CNC Router (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the essential foundational machine for any growing woodshop or advertising sign business. Acknowledged globally as the industry-standard "4x8 router," it bridges the gap between affordable entry-level machines and high-end automated centers.
Built on a thick-walled, seamlessly welded steel bed, the machine guarantees absolute structural rigidity. This heavily tempered frame absorbs the intense harmonic vibrations generated when routing dense hardwoods at high speeds, ensuring that the gantry does not warp or shake, and that your cuts remain flawlessly square and chatter-free over years of continuous production.
Core Advantages
High-Speed, High-Precision Spindle: Equipped with a premium HQD 3KW (or optional 5.5KW) water-cooled spindle. This motor provides massive torque for aggressive roughing cuts while spinning up to 24,000 RPM for glass-smooth edge finishes.
Intelligent Control Systems: Features anti-interference control systems (such as NC Studio or DSP) that include "breakpoint memory" and "power-down" functions. If you lose power during a long carving job, the machine will resume exactly where it left off, saving your expensive materials.
High-Adhesion Vacuum Table: Features a powerful 5.5KW vacuum pump and a multi-zone vacuum adsorption table. This allows operators to instantly secure large, flat sheets of MDF and plywood without the need for mechanical edge clamps.
Precision Linear Motion: The machine utilizes high-precision Taiwan 20mm/25mm square linear guide rails combined with X/Y rack-and-pinion transmission. This setup provides significantly faster travel speeds and better acceleration than ball-screw-only systems.
Technical Parameters
Feature | Specification |
Model | CX-1325 |
Working Area (X × Y × Z) | 1300 mm × 2500 mm × 200 mm |
Spindle Motor | HQD 3KW / 5.5KW Water Cooling Spindle |
Spindle Speed | Up to 24,000 RPM / min |
Control System | NC Studio / Weihong 95A / DSP A11 |
Drive Motors | Leadshine 860 & Step Motor 450B (Optional Servo) |
Transmission (X/Y) | High-Precision Rack & Pinion |
Transmission (Z) | Precision Ball Screw |
Guide Rails | Taiwan 20mm / 25mm Square Linear Guide Rails |
Working Table | Vacuum Adsorption Table (Optional Aluminum T-Slot) |
Vacuum Pump | 5.5 KW |
Working Voltage | AC 380V 50HZ (Optional 220V 50HZ) |
Machine Weight | 1000 KGS |
Detailed Component Analysis
The water-cooling system ensures the spindle can run continuously for hours during long, intricate 3D sculpting jobs without overheating. It also runs significantly quieter than air-cooled alternatives, improving the working environment of your factory.
The Z-axis relies on a precision ball screw to manage the vertical plunge of the spindle. This guarantees exact depth control, which is absolutely critical when performing intricate 3D relief engraving or V-grooving on cabinet doors.
Powered by Leadshine drivers and 450B stepper motors, the machine offers rapid travel speeds and consistent torque, ensuring exact dimensional accuracy on large sheet goods.

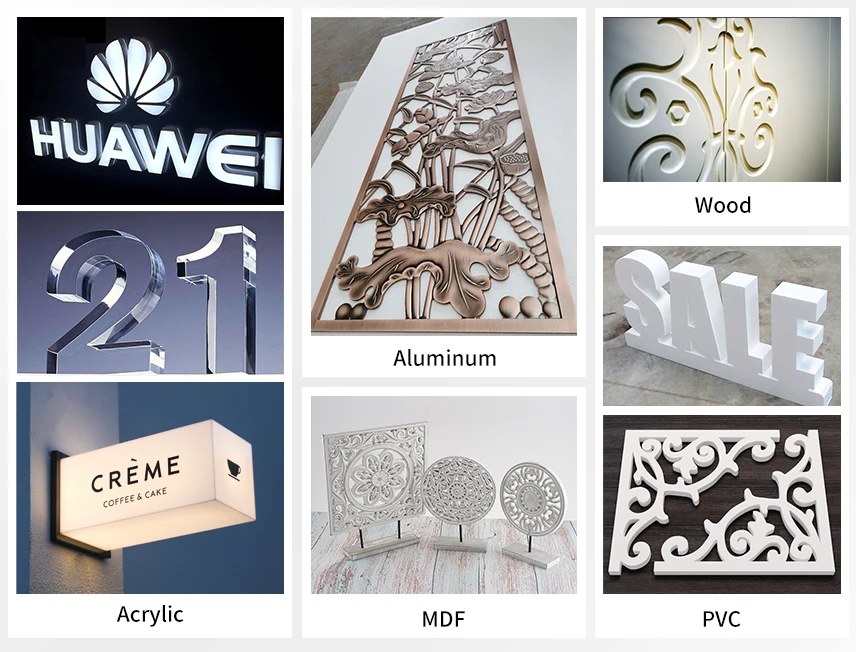

Applicable Industries & Materials
Arts & Crafts: 3D carving of custom wooden gifts, intricate wooden screens, and personalized decor.
Advertising & Signage: Precision cutting and engraving of large-format acrylic letters, PVC signboards, and exhibition displays.
Furniture Manufacturing: Routing, sizing, and grooving for custom cabinets, wardrobes, and wooden doors.
Compatible Materials: Solid Hardwood, MDF, Plywood, Particleboard, Melamine, Acrylic, PVC, and high-density plastics.
Why Choose Superstar CNC?
Simple Operation, High Efficiency: We combine precise drawing mechanisms with artistic styling to create a machine that is easy to learn, highly productive, and visually appealing on your shop floor.
Customization Available: We understand that every shop is different. The CX-1325 supports customization, allowing you to choose between vacuum or aluminum tables, and 220V or 380V power supplies to perfectly match your facility.
Frequently Asked Questions (FAQ)
Q: Does the vacuum table require me to use physical clamps?
A: No. The powerful 5.5KW vacuum pump pulls flat boards (like MDF and plywood) securely against the work surface. This eliminates the need for mechanical edge clamps, allowing the spindle to process the entire board without obstruction.
Q: What happens if the power goes out while I am carving a 3D door?
A: The control system (NC Studio / DSP) features a built-in "breakpoint and power-down memory" function. When power is restored, the machine will resume carving from the exact line of G-code where it stopped, saving your workpiece from ruin.
Q: Do I need a 380V 3-phase power supply to run this machine?
A: While 380V is standard for high-power vacuum pumps and 5.5KW spindles, we can configure the CX-1325 to run perfectly on standard 220V power if your workshop does not have 3-phase electricity available.
