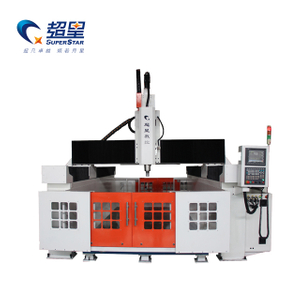

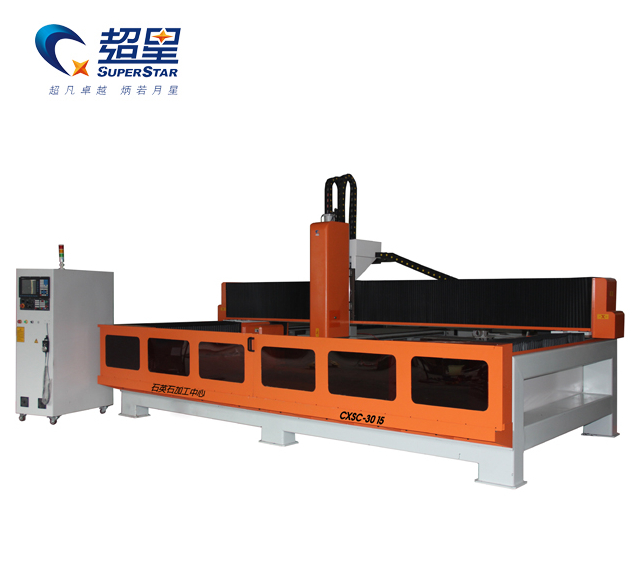

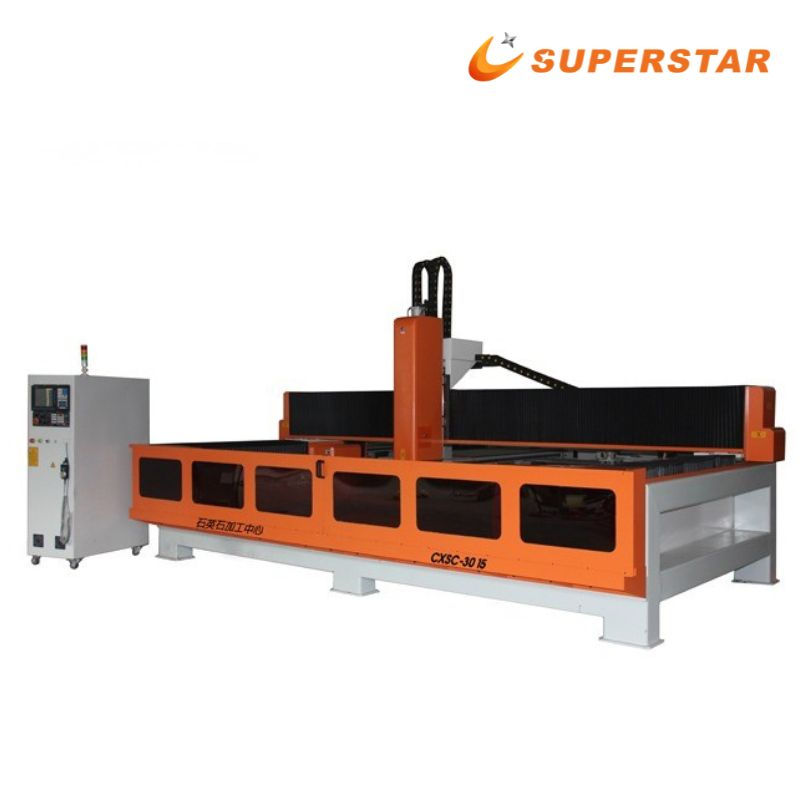

Automatic Quartz Processing Center Stone Cutting Machine CXSC-3015


SKU:
Availability:



Inquire

Quartz stone cutting machine adopts Shanghai Weihong control system and automatic tool change spindle. Side-mounted automatic tool change system with a tool magazine capacity of 18 tools. The high-power vacuum pump is used to absorb the table top, and the board is more fixed and accurate.

Model:
CX-3015
Brand:
Superstar

Working Video

Product Description

Easy to learn and easy to use: workers who can understand the drawings can start to operate in a day, with almost no requirements for operators.
Better efficiency: the processing efficiency of Taizhong basin, edge grinding, back round bottom water retaining and other processes is 1-10 times of that of artificial
Environmental protection and health: the whole machine adopts water dedusting and water cooling to avoid producing a lot of dust and refusing pneumoconiosis.
Complete technology: it can not only be used for grinding the front hanging shape of Roman edge and European edge, but also can be used for various basin technologies such as Taizhong basin, taixia basin, and leach tank, as well as the whole back water retaining round bottom, which is very difficult to be processed manually. At the same time, it can also take into account the special cutting and grinding functions.

Technical Parameter

X Axis Working Size	3000mm
Y Axis Working Size	1500mm
Dimension	5500mm3000mm3000mm
Table	Aluminum alloy plate + vacuum adsorption
Motor	Euro 1.3KW / Weihong 1KW, Z axis brake
Spindle Speed	0-24000rpm/min
Spindle	Taiwan 5.5.kw servo spindle + supersynchronous motor
Control System	Shanghai Weihong system NC60
Vacuum Pump	5.5KW
Weight	5000KGS

Applicable industries

This machine can meet the requirements of personalized home decoration and tooling art design, and can be used as advanced engraving processing equipment for decoration companies, handicraft industry, stone industry, inscription industry, and ceramic companies

it can not only be used for grinding the front hanging shape of Roman edge and European edge, but also can be used for various basin technologies such as Taizhong basin, taixia basin, and leach tank, as well as the whole back water retaining round bottom. At the same time, it can also take into account the special cutting and grinding functions.

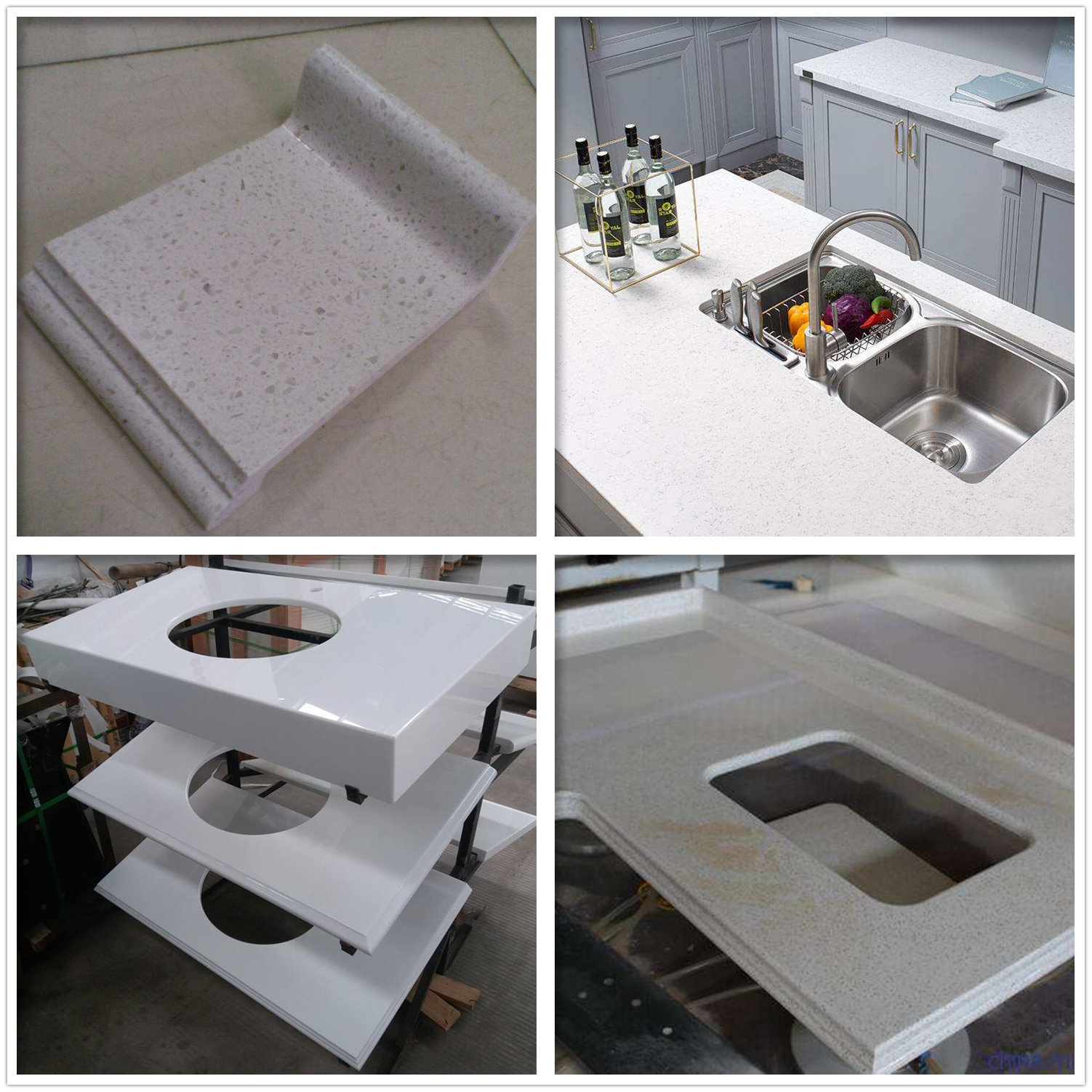

石英石台面
