Product Overview

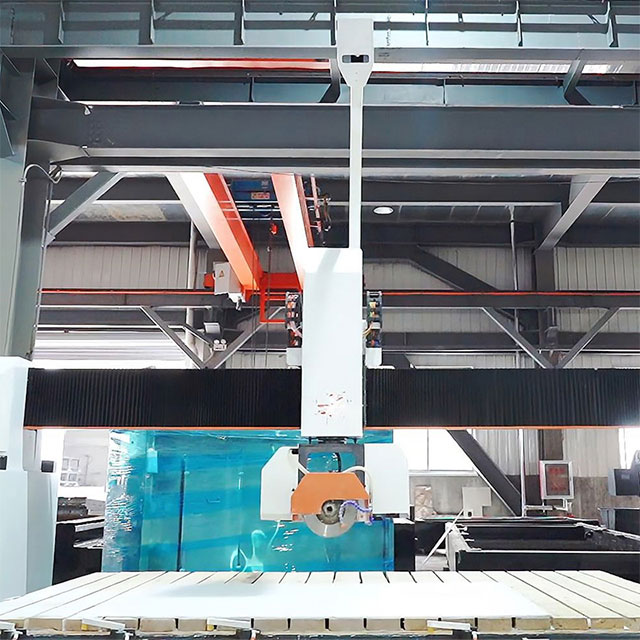

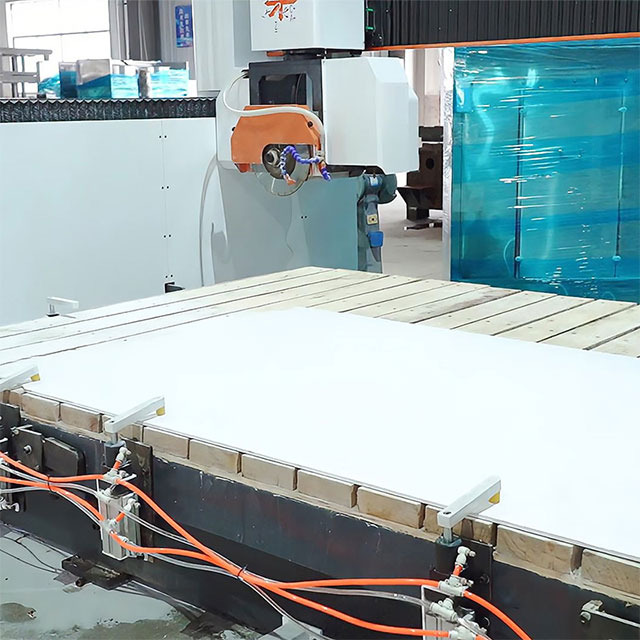

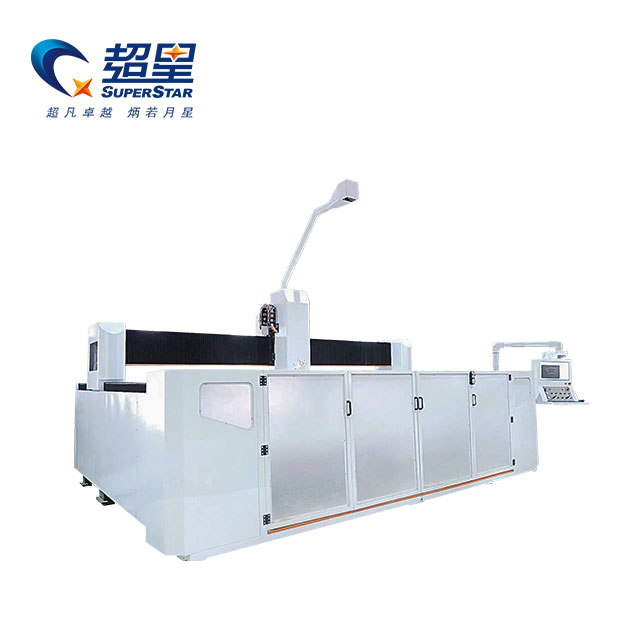

The Superstar 5+1 Five Axis Bridge Saw (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) represents the pinnacle of modern stone fabrication . Traditional stone cutting requires multiple machines to size a slab, cut sink holes, and polish the edges. The "5+1" system integrates all these functions into a single, high-efficiency workstation .
Weighing a massive 4,000 KG, the machine is built on a solid, seamlessly welded steel bed that has undergone strict aging treatment and high-temperature spraying to prevent rust in wet environments . The entire frame is precision-milled by a large 5-axis gantry milling machine to ensure the guide rails are perfectly aligned. This guarantees vibration-free stability when slicing through thick, dense stone slabs .
Core Advantages
True 5-Axis Articulation: The cutting head can swing a full 360 degrees and tilt anywhere from 0 to 90 degrees. This allows for straight cuts, cross cuts, curved contouring, and perfect 45-degree miter cuts for seamless waterfall countertop edges .

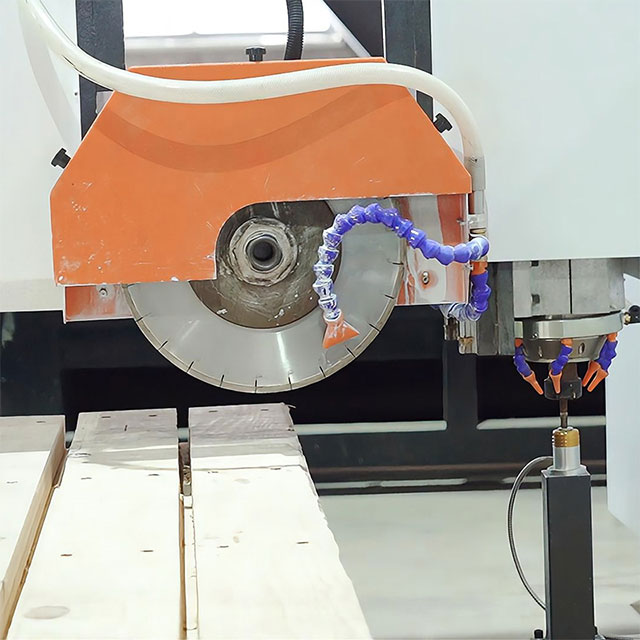

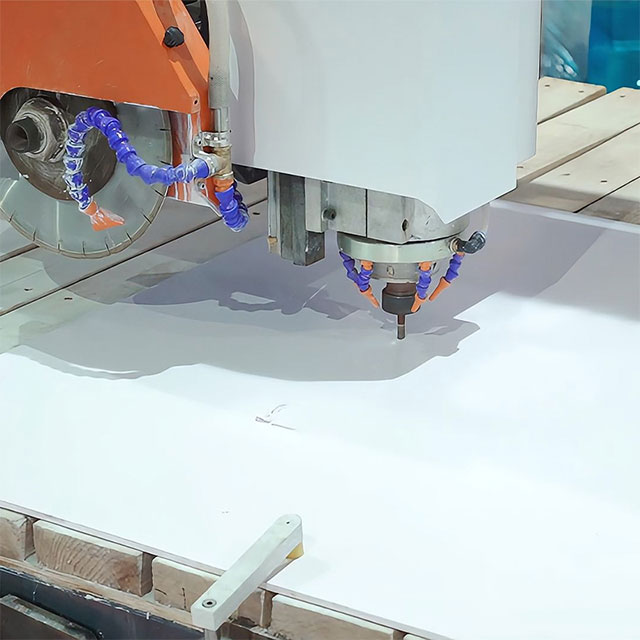

The "+1" Spindle Advantage: In addition to the massive 15KW saw blade motor, the head features an integrated 7.5KW (24,000 RPM) stone-specific spindle . After the saw blade makes the main cuts, the machine automatically switches to the spindle router bit to drill square sink holes, round faucet holes, and mill internal angles .
Hydraulic Tilt Loading Table: Loading a heavy slab of granite onto a flat table is dangerous and difficult. The CX-3220 features an 85-degree hydraulic flap table, allowing operators to safely lean the stone against the table before it lowers into a flat cutting position .
Intelligent Vision System: Equipped with a specialized CNC industrial camera and the Shanghai Weihong control system. The machine can automatically optimize the layout (nesting) of the cuts on the slab to maximize stone yield, and use suction cups to automatically move cut pieces out of the way for subsequent passes .
Technical Parameters
Feature | Specification |
Model | CX-3220 (5+1 Five Axis Bridge Saw) |
Processing Size (X / Y) | 3200 mm (Horizontal) × 2000 mm (Vertical) |
Cutting Thickness | Within 50 mm |
Saw Blade Diameter | 350 mm |
Saw Blade Motor | 15KW Special Cutting Motor (Waterproof) |
Milling Spindle Motor | 7.5KW Stone-Specific Spindle (24,000 RPM) |
Head Rotation Angle | 0 - 360 Degrees |
Head Tilt Angle | 0 - 90 Degrees |
Platform Flap Angle | 0 - 85 Degrees (Hydraulic) |
Control System | Intelligent 5+1 System (Shanghai Weihong) |
Transmission Mode | High-Wear Square Rail + Imported Ball Screw |
Cutting Speed | 1 - 2500 mm/min (Varies by stone thickness) |
Vision System | Special CNC Industrial Camera |
Machine Weight | 4000 KG |
Dimensions (L×W×H) | 6100 mm × 3230 mm × 2530 mm |
Detailed Component Analysis
Key parts are driven by high-precision servo controls, while the angle tilting mechanism utilizes a high-torque servo motor and a hollow reducer on the C-axis . This ensures that the heavy cutting head stops and locks at the exact degree required for complex miter cuts .
Unlike standard machines, it adopts imported high-precision ball screws that have undergone high heat treatment, making them extremely wear-resistant against the abrasive stone slurry created during the wet-cutting process .
Features an automatic oil injection and lubrication system, ensuring that all moving parts remain properly greased, drastically reducing operator maintenance requirements .
Applicable Industries & Materials
Kitchen & Bath Countertops: Automated cutting, sink-hole routing, and edge profiling for granite and quartz kitchen islands and bathroom vanities.
Architectural Stone Elements: Cutting complex curved stair treads, fireplace mantels, and decorative stone facades.
Tile & Flooring: High-speed, high-yield sizing of large-format sintered stone and porcelain rock plates.
Compatible Materials: Granite, Marble, Quartz, Artificial Stone, Sintered Stone (Rock Plate), and Slate .
Why Choose Superstar CNC?
All-in-One Efficiency: The 5+1 configuration eliminates the need to move a heavy slab from a bridge saw to a separate CNC router. The machine cuts the slab, drills the faucet holes, and mills the sink cutout in one continuous program.
Optimized Yield: The onboard camera and intelligent layout software ensure you get the absolute most out of every expensive slab of marble, drastically reducing material waste .
Frequently Asked Questions (FAQ)
Q: Can this machine cut a 45-degree miter for waterfall edges?
A: Yes. The cutting head tilts to any angle between 0 and 90 degrees . You can program precise 45-degree miter cuts for seamless drop-edge (waterfall) countertop installations.
Q: What is the maximum thickness of stone it can cut?
A: Using the standard 350mm diameter saw blade, the machine can comfortably cut stone slabs up to 50mm (approx. 2 inches) thick .
Q: Does it require a separate computer to program the cuts?
A: No. The Shanghai Weihong intelligent control system allows operators to directly modify data and program cuts right on the machine's operating system interface .
