Product Overview

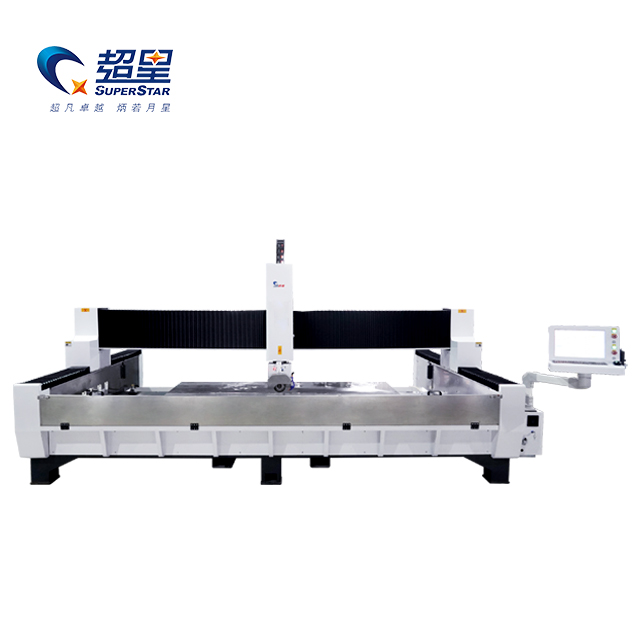

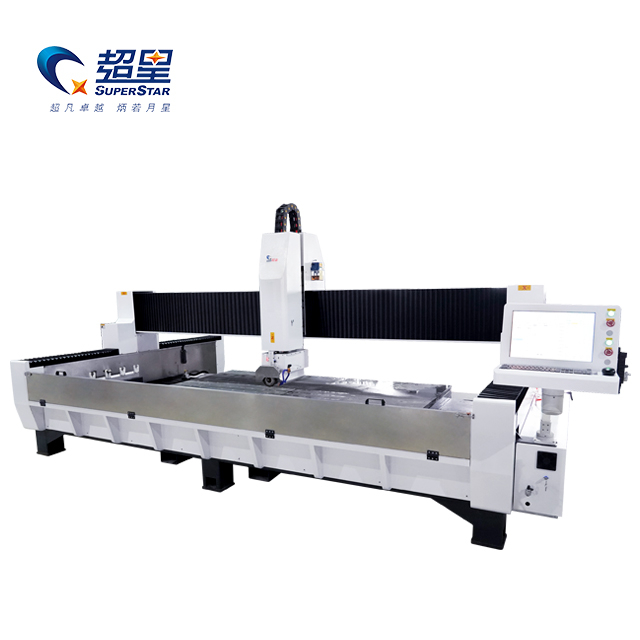

The Superstar CX-3220 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) solves the unique challenges of processing brittle, easily scratched materials like glass . Standard CNC routers are designed for wood and lack the specialized water-cooling, torque, and tooling protection required to carve glass without causing micro-fractures or tool contamination.

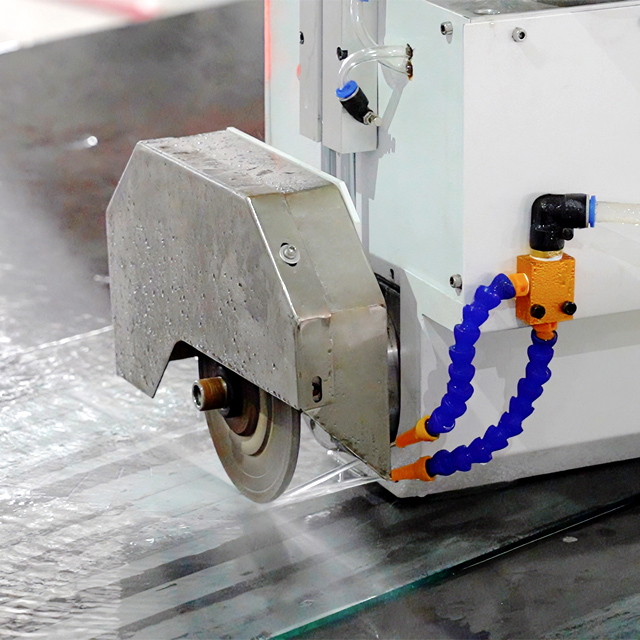

This machine is purpose-built for the glass industry. It features a heavy-duty spindle paired with a copper-core coil gearbox, providing ultra-high torque at low speeds . This high cutting force ensures the diamond bits grind through thick glass smoothly, without shattering the edges. Built with a fully waterproof and dustproof structure, the guide rails and ball screws are perfectly protected from the abrasive glass slurry generated during wet carving .
Core Advantages
360-Degree Swinging Head: The machine head can swing 360 degrees freely. This allows the spindle to precisely carve V-grooves, beveled edges, and complex shapes on the glass surface at any angle, mimicking the intricate cuts of a 4-axis machine .
Invisible Tool Magazine: Glass carving creates an abrasive slurry that ruins tools. The CX-3220 features a specialized "invisible" (enclosed) tool magazine that protects the diamond carving bits from contamination and moisture when not in use .

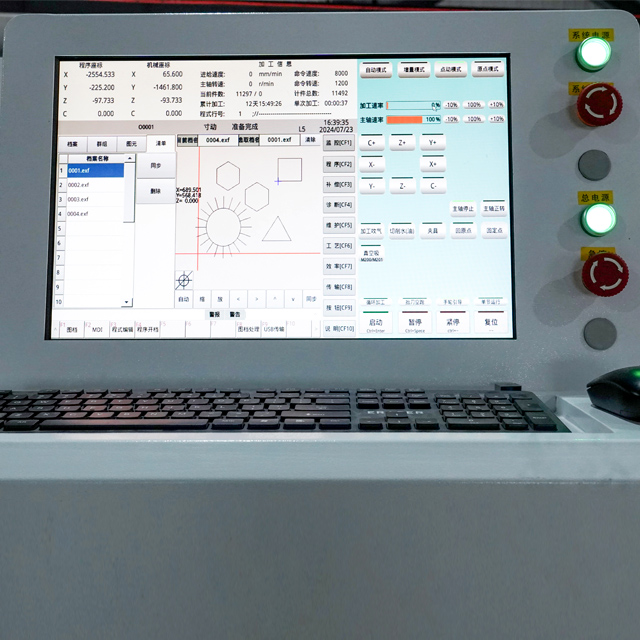

Direct CAD Integration: The highly humanized control system directly recognizes CAD files . Operators can modify dimensions directly on the machine's operating interface without needing to create complex new CNC toolpaths in a separate CAM program, drastically saving setup time .

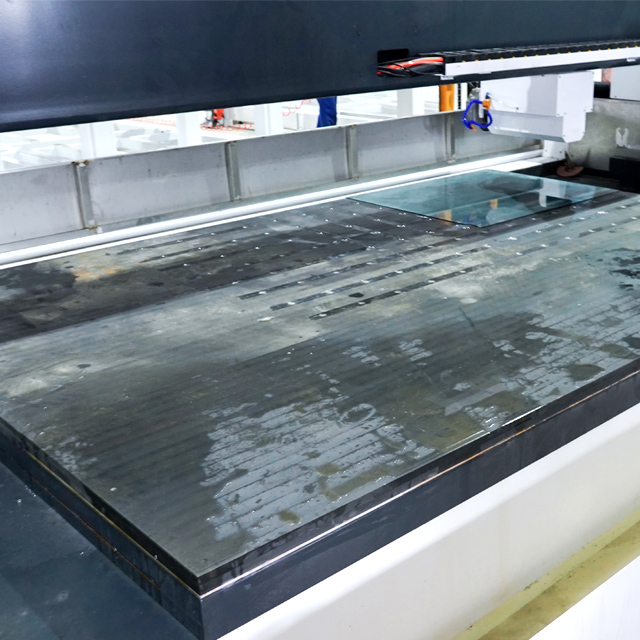

High-Adhesion Vacuum Table: Equipped with a 5.5KW water-type vacuum pump, the platform utilizes a vacuum bag adsorption method that provides immense suction . This guarantees the heavy, slippery glass panels will not shift a single millimeter during aggressive carving .
Technical Parameters
Feature | Specification |
Model | CX-3220 |
Spindle Assembly | High-Power Spindle + Heavy-Duty Gearbox |
Head Movement | 360° Free Swing Capacity |
Drive Motors | 850W Servo Drive Motors |
Tool Magazine | Specialized Invisible (Enclosed) Magazine |
Control System | Dedicated Glass CNC System with Movable Handle |
Machine Protection | Waterproof & Dustproof Structure |
Working Table | Vacuum Bag Adsorption Platform |
Vacuum Pump | 5.5KW Water Type Vacuum Pump |

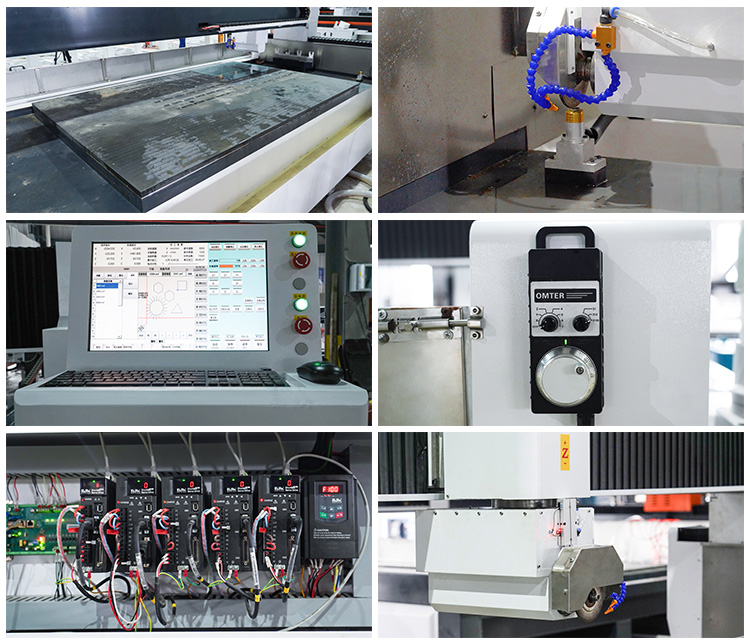

Detailed Component Analysis
The X, Y, and Z axes are driven by premium 850W servo motors . These motors ensure incredibly smooth, low-noise processing. Crucially, the system automatically fluctuates the cutting speed based on the hardness of the glass and the cutting depth, preventing tool breakage and material cracking .
The control cabinet features well-known brand electrical components designed to resist strong electromagnetic interference, moisture, and impact . It also includes a power-off protection function, saving the workpiece if factory power is interrupted .
Utilizes a partitioned drag chain that separates signal lines from power lines to eliminate electronic interference . The internal partition prevents the imported, highly flexible shielded cables from twisting during rapid gantry movement, extending their service life .
Applicable Industries & Materials
Art & Decorative Glass: Carving intricate patterns for KTVs, bars, nightlife venues, and luxury TV background walls .
Furniture & Mirrors: Precision V-grooving and edge carving for decorative mirrors, sliding doors, and hollow doors .
Home Appliances: Shaping and grooving glass panels for gas stoves, range hoods, and refrigerators .
Compatible Materials: Tempered Glass, Art Glass, Mirrors, Quartz, and Medical Equipment Glass .
Why Choose Superstar CNC?
Purpose-Built for Glass: Do not risk expensive glass panels on a standard wood router. The CX-3220's low-speed/high-torque gearbox and waterproof architecture are specifically engineered to handle the wet, abrasive environment of glass carving .
Ease of Use: The point-to-point positioning via the movable handle makes the machine incredibly easy to learn for operators transitioning from manual glass cutting to CNC automation .
Frequently Asked Questions (FAQ)
Q: Do I need to learn complex CAM software to run this machine?
A: No. The machine's highly humanized control system can directly recognize standard CAD files . You can modify dimensions directly at the machine interface without needing to write complex CNC path programs .
Q: Will the water and glass dust ruin the machine's moving parts?
A: The CX-3220 is built with a comprehensive waterproof and dustproof structure that physically shields the guide rails and ball screws from the abrasive glass slurry, preventing corrosion and wear .
Q: Does the glass slip on the table during carving?
A: No. The machine uses a vacuum bag adsorption method powered by a massive 5.5KW water-type vacuum pump . This provides superior suction compared to standard tables, completely preventing the glass from shifting during processing .
