Superstar CNC CX-mobile Tempered Glass Cutting Machine

Share to:
sharethis sharing button
Glass CNC cutting machine can be used for architectural glass, automotive glass, furniture glass, craft glass, decorative glass, cabinet glass, etc.
  • CX-3826

  • Superstar

SKU:
Availability:

Working video

Product Description

Glass CNC Cutting Machine Features:

  • The operation is simple and easy to manage.

  • The machine adopts imported or domestic first-line brand electrical and pneumatic components, which can effectively guarantee the cutting accuracy and stability, and can meet the requirements of various shapes of glass cutting.

  • High intelligent cutting table typesetting optimization software can greatly improve the utilization of glass cutting rate and reduce the production cost.

  • Automatic oiling function and automatic constant pressure adjustment function can effectively ensure the cutting stability and cutting effect

  • The latest Beijing Baolun glass cutting control system is adopted, which has the advantages of faster running speed, stronger stability, higher cutting precision. It can be used in all kinds of glass.

Technical Parameter

Model

CNC-3826

Glass Thickness

3~19mm

Cutting speed

160m/min

Control system

Baolun professional glass cutting

Driving motor and control card

Yaskawa servo motor, Japan. American gevi control card.

The maximum power

4kw (the average power is less than 1 kilowatt hour in normal use)

Working power supply

AC220V / 380V, 50-60Hz

Positioning mode

air bearing platform, red light automatic positioning

Working table

Air floating felt surface, black felt

Position

Japan Yaskawa automatic edge position


Detailed Images

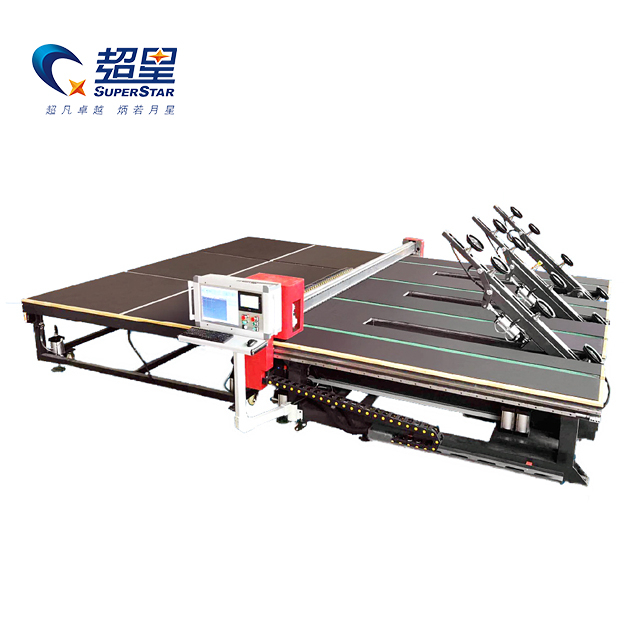

cnc glass cutting machine

Applicable industries

CNC Glass Cutting Machine Sample:

architectural glass, automobile glass, furniture glass, craft glass, decorative glass, cabinet glass, etc

sample
