Product Overview

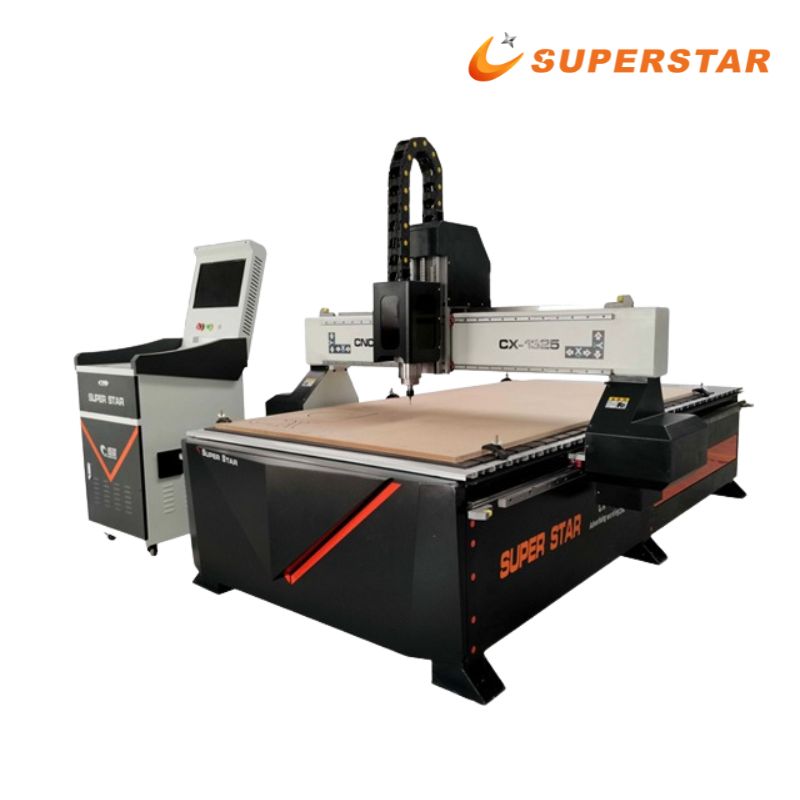

The Superstar 1325 T-Slot CNC Router (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the foundational 3-axis machine for modern job shops. While high-volume cabinet factories rely on vacuum tables to hold flat sheet goods, vacuum systems struggle to hold small cutouts, thick blocks of hardwood, or porous materials.
This machine solves that problem by utilizing a thick Aluminum Profile T-slot table covered with a sacrificial PVC layer. Operators use mechanical edge-clamps to physically bolt down the material. This provides ultimate work-holding versatility, allowing you to carve a massive 4x8 sheet of MDF in the morning, and clamp down a 6-inch block of thick mahogany for 3D relief carving in the afternoon. Built on a heavily tempered, stress-relieved steel bed, it absorbs heavy cutting vibrations to deliver perfectly smooth edges.
Core Advantages
Versatile Aluminum T-Slot Table: Allows for mechanical clamping of irregularly shaped wood blocks, custom jigs, and small acrylic cutouts, offering superior grip for heavy 3D carving where vacuum suction might fail.
3KW Water-Cooled Spindle: Delivers high torque and operates up to 24,000 RPM. Water cooling ensures the motor stays cool during continuous, 10-hour 3D relief carving cycles, extending the spindle's lifespan.
Intuitive DSP Control System: Operates via a handheld DSP offline controller. This system is dust-proof and highly reliable, meaning you do not need to expose an expensive computer to shop dust to run the machine.
Precision Linear Motion: Equipped with Taiwan square linear guide rails and a rack-and-pinion transmission on the X/Y axes, ensuring rapid acceleration and smooth gantry movement without sacrificing positioning accuracy.
Technical Parameters
Feature | Specification |
Model | 1325 Aluminum T-Slot CNC Router |
Working Area (X × Y × Z) | 1300 mm × 2500 mm × 200 mm |
Spindle Motor | 3.0 KW Water Cooling Spindle |
Spindle Speed | 0 – 24,000 RPM |
Control System | DSP / NC Studio Control System |
Drive Motors | Stepper Motors (Servo Optional) |
Transmission (X/Y) | High-Precision Helical Rack & Pinion |
Transmission (Z) | Taiwan Precision Ball Screw |
Guide Rails | Taiwan Square Linear Guide Rails |
Working Table | Aluminum T-Slot Profile with PVC Protection |
Working Voltage | AC 220V or 380V / 50-60HZ |
Detailed Component Analysis
The X and Y axes utilize a robust helical rack and pinion transmission system. This setup provides significantly faster travel speeds and better acceleration than ball-screw-only systems, drastically reducing the "air-cutting" time between carving zones.
The Z-axis relies on a precision Taiwan ball screw to manage the vertical plunge of the spindle. This guarantees exact depth control, which is absolutely critical when performing intricate 2D hollowing, V-grooving, or step-cutting.
The machine frame is welded from thick industrial steel tubing and subjected to a secondary tempering process. This prevents the bed from sagging or twisting under the heavy load of thick hardwood materials.
Applicable Industries & Materials
Decorative Arts & Crafts: 3D carving of custom wooden gifts, jewelry boxes, intricate wooden screens, and personalized decor where mechanical clamping is required.
Advertising & Signage: Precision cutting and engraving of acrylic letters, PVC signboards, and two-color ABS boards.
Custom Furniture: Routing, sizing, and grooving for boutique cabinets, custom doors, and bespoke architectural millwork.
Compatible Materials: Solid Hardwood, MDF, Plywood, Bamboo, Acrylic, PVC, ABS, and high-density foam.
Why Choose Superstar CNC?
Cost-Effective Durability: The T-Slot table configuration does not require an expensive vacuum pump, making this machine an incredibly economical entry point for small-to-medium shops without sacrificing industrial cutting power.
Factory-Direct Customization: As the manufacturer, we can customize the spindle power (up to 4.5KW or 6KW) and Z-axis height to perfectly match the specific thickness and density of your materials.
Global Support: Every machine comes with comprehensive English manuals, training videos, and direct factory technical support to ensure your operators are up and running quickly.
Frequently Asked Questions (FAQ)
Q: Can I cut a full 4x8 foot sheet of plywood on this table?
A: Yes. You simply place the 4x8 sheet onto the PVC surface and use the provided mechanical clamps to secure the edges of the board to the aluminum T-slots.
Q: Can I add a vacuum table to this machine later?
A: While it is possible to place a modular vacuum pod system on top of a T-slot table, if you anticipate needing vacuum hold-down for high-volume cabinet production, we highly recommend purchasing a combined "Vacuum + T-Slot" hybrid table directly from the factory.
Q: Does this machine require a 380V 3-phase power supply?
A: Not necessarily. Because this configuration does not utilize a massive 7.5KW vacuum pump, the 3.0KW spindle and drive motors can easily be configured to run on standard 220V single-phase power, making it ideal for smaller commercial spaces.
