Product Overview

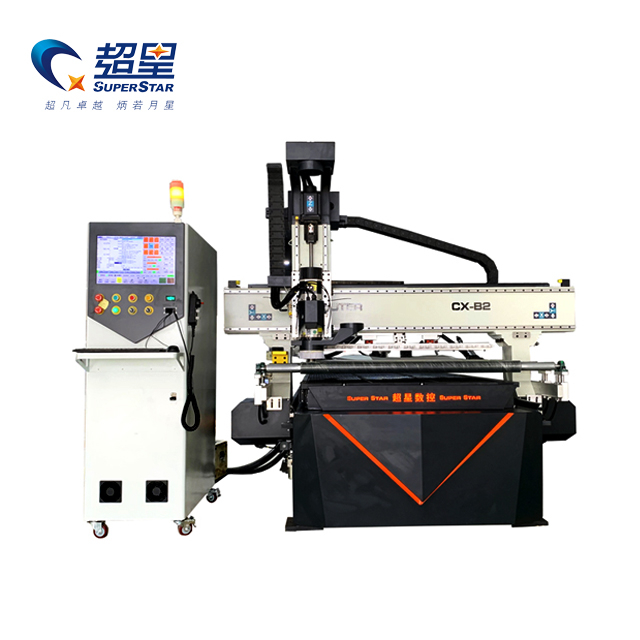

The Superstar CX-1325 B2 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the workhorse of modern panel furniture production. Standard 3-axis routers cause major bottlenecks when operators must stop to manually swap between profile cutters and drill bits. The B2 series solves this by integrating a high-capacity linear tool magazine.
The foundation of the machine is a heavy-duty steel structure that has been entirely welded and subjected to a high-temperature tempering process. This aging treatment provides the bed with extreme structural rigidity, ensuring absolutely no distortion or micro-vibration during high-speed, multi-shift operations. Combined with an advanced control system featuring intelligent cross-border protection, it prevents mechanical crashes and protects your expensive materials.
Core Advantages
12-Slot Linear Automatic Tool Changer: A high-capacity inline tool magazine sits at the rear or side of the bed. The spindle automatically drops and retrieves up to 12 different tools in seconds, allowing complex cabinet designs to be processed in a single, uninterrupted G-code cycle.
Intelligent Syntec Control: The Taiwan Syntec system reads complex nesting software files easily and features intelligent processing cross-border protection, preventing the spindle from traveling outside the safe cutting zone.
High-Adhesion Double-Deck Vacuum: Features a double-deck vacuum adsorption table powered by a massive 7.5KW water vacuum pump (capable of 350m³/h). This ensures uniform air pressure distribution, securely gripping even small, porous MDF offcuts.
Precision Drive Mechanics: X and Y axes utilize high-precision helical gear racks for smooth, quiet, and rapid motion (up to 45m/min), while the Z-axis uses a precise ball screw for exact plunge depth control.
Technical Parameters
Feature | Specification |
Model | CX-1325 B2 Linear ATC CNC Router |
Working Area (X × Y × Z) | 1300 mm × 2500 mm × 200 mm |
Spindle Motor | 9KW ATC CHINA HQD Air Cooling Spindle |
Spindle Speed | 0 – 18,000 RPM / min |
Control System | Taiwan Syntec Controller System |
Drive Motors | China 1.5KW Servo Motor & Servo Driver |
Tool Magazine | 12 PCS for Linear-Type Auto Change |
Transmission (X/Y) | Helical Gears |
Transmission (Z) | Z-Axis Ball Screw |
Max Working Speed | 45 m/min |
Max Engraving Speed | 25 m/min |
Repositioning Accuracy | ± 0.05 mm |
Working Table | Vacuum Table |
Vacuum Pump | 7.5KW Water/Air Vacuum Pump |
Working Voltage | 380V / 50-60HZ / 3-Phase |
Detailed Component Analysis
Provides the massive cutting force required to slice through thick, dense multi-layer boards in a single pass. The air-cooling mechanism eliminates the need for water chillers, significantly reducing daily maintenance.
Unlike stepper motors that can lose steps under heavy loads, the 1.5KW servo motors provide closed-loop feedback. This guarantees ultra-smooth acceleration, high torque, and perfect positioning accuracy (±0.05mm) even when cutting at top speeds.
The strong rigidity of the tempered steel bed ensures the heavy gantry absorbs the intense kinetic energy of rapid direction changes, guaranteeing your cuts are flawless and perfectly square.
Applicable Industries & Materials
Custom Cabinetry & Wardrobes: High-speed nesting, cutting, and drilling of complex panel furniture components.
Wooden Door Manufacturing: Routing 3D relief panels, lock mortises, and hinge pockets on solid wood and MDF doors.
Architectural Millwork: Carving decorative screens, acoustic wall panels, and exhibition displays.
Compatible Materials: MDF, Plywood, Particleboard, Solid Wood, Acrylic, PVC, ABS, and composite plastics.
Why Choose Superstar CNC?
Optimized for Furniture Lines: The CX-1325 B2 is the perfect central hub for a medium-to-large furniture factory. It integrates perfectly with your CAD/CAM nesting software to maximize material yield and minimize waste.
Factory-Direct Value: As the original manufacturer in Jinan, we provide high-end configurations (12-tool ATC, Syntec, 1.5KW Servos) at highly competitive price points compared to Western brands.
Global Export Quality: We offer complete English technical support, rigorous factory testing before shipment, and global access to replacement parts to ensure your production line never stops.
Frequently Asked Questions (FAQ)
Q: Is a linear tool changer better than a disc (carousel) tool changer?
A: A linear tool changer is a highly reliable, straightforward mechanism that sits at the end of the bed and holds more tools (12 pcs) than a standard disc changer (usually 8 pcs). While the spindle must travel to the end of the bed to swap tools, the larger tool capacity is ideal for complex cabinet jobs requiring numerous drilling and profiling bits.
Q: Does the machine require clamps to hold down the wood?
A: No. The double-deck vacuum table, combined with the powerful 7.5KW pump, aggressively pulls the MDF or plywood flat against the table. This eliminates the need for mechanical clamps, saving time and preventing the spindle from accidentally hitting a clamp.
Q: What power supply does this machine require?
A: The CX-1325 B2 is an industrial machine that requires a 380V, 3-Phase power supply (50/60HZ) to operate the 9KW spindle and the 7.5KW vacuum pump efficiently.
