Product Overview

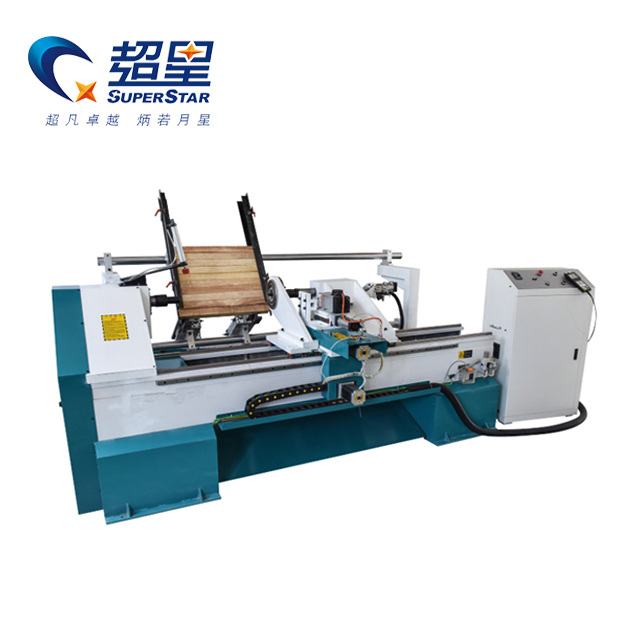

The Superstar CX-1530 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) eliminates the danger and inconsistency of manual wood turning. By automating the carving of cylinders, cones, and curved shapes, this machine guarantees that every table leg or stair baluster in a production run is identical.
Constructed on a heavy cast-iron frame to absorb the intense vibrations of high-speed wood turning, the CX-1530 uses precision Taiwan TBI ball screws to move the cutting tools along the workpiece. Whether you are crafting delicate wooden vases or heavy newel posts, this machine drastically reduces labor time while delivering a surface finish that requires minimal sanding.
Core Advantages
Dual-Knife Turning Configuration: Equipped with two cutting knives that work simultaneously or in sequence. This allows for fast roughing and smooth finishing in a single pass without stopping the machine to change tools.
Heavy-Duty Cast Iron Frame: The lathe body is cast as a single piece and undergoes high-temperature annealing. Weighing up to 1500kg, this immense mass prevents the machine from vibrating, ensuring perfectly smooth turned surfaces.
Multi-Functional Capability: Beyond simple turning, the machine can be equipped with an optional air-cooling spindle (e.g., 3.5KW) for 4-axis carving, allowing for intricate fluting, twisting patterns, and 3D engraving on the cylinder.
Offline Control System: The machine is operated via an intuitive, offline DSP handle (or GXK system). It reads standard G-code from a USB flash drive, meaning you do not need a dedicated computer next to the dusty machine.
Technical Parameters
Feature | Specification |
Model | CX-1530 |
Max. Processing Length | 100 - 1500 mm |
Max. Turning Diameter | 300 mm |
Max. Side Length of Wood Logs | 200 mm |
Quantity of Spindles | 1 |
Quantity of Knives | 2 |
Max. Feeding Speed | 40 mm/s |
Spindle Motor Power | 4KW / 5.5KW |
Transmission System | Taiwan TBI Ball Screw |
Drive System | Stepper Motor (Yako 2811 Driver) |
Machine Body | Cast Iron Frame |
Working Voltage | AC 380V / 50HZ (3-Phase) |
Machine Dimensions | 3000mm × 1500mm × 1400mm |
Package Dimensions | 3100mm × 1600mm × 1600mm |

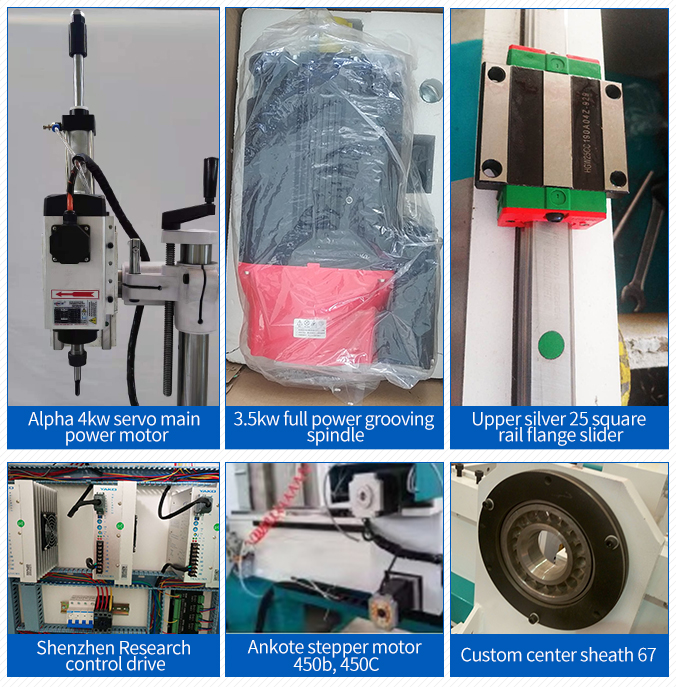

Detailed Configuration & Component Analysis

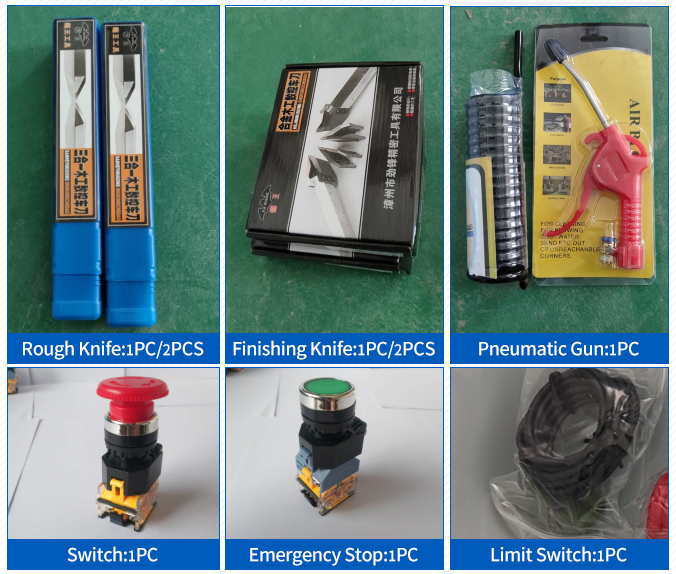

The lathe uses specialized, super-hard alloy V-shape or U-shape cutters. These are highly resistant to wear when turning dense hardwoods like oak or maple, reducing the frequency of tool sharpening.
The rotation speed of the main shaft can be infinitely adjusted via the built-in Best inverter. This allows the operator to dial in the perfect RPM based on the thickness of the log and the density of the wood species.
The tool carriage rides on premium linear guide rails, ensuring that the movement along the 1500mm X-axis remains perfectly straight, preventing any tapering or unevenness in long cylindrical parts.
Applicable Industries & Materials
Furniture Manufacturing: Dining table legs, end table legs, sofa feet, chair arm posts, and bar stool legs.
Staircase Construction: Regular and irregular stair balusters, handrails, and large stairway newel posts.
Crafts & Sporting Goods: Baseball bats, wooden vases, bowls, pen barrels, and rolling pins.
Compatible Materials: Solid hardwoods (Oak, Beech, Maple, Walnut), softwoods, MDF, and other cylindrical wooden composites.
Why Choose Superstar CNC?
Factory Direct Quality: As a leading manufacturer since 2003, we control the entire casting and assembly process, ensuring your lathe delivers years of reliable service.
Customization Available: Need to turn longer logs? We can customize the bed length to 2000mm, 2500mm, or 3000mm upon request.
Turnkey Training: We provide comprehensive operation manuals and video guides for the CAD/CAM software (like Powermill or AutoCAD) so you can start generating complex turning profiles immediately.
Frequently Asked Questions (FAQ)
Q: Can this machine carve spiral grooves (fluting) into a table leg?
A: Yes. If you require fluting or 3D engraving, we can add a milling spindle (e.g., 3.5kw air-cooled) to the machine. The lathe will then turn the wood slowly while the router bit carves the grooves.
Q: How do I load heavy logs onto the lathe?
A: The machine features a heavy-duty tailstock and a centering thimble. For very heavy logs, operators typically use a small shop hoist to align the wood between the chuck and the tailstock before clamping.
Q: What file format does the control system read?
A: The machine accepts standard G-code files (like *.dxf or *.nc) generated from drawing software. The DSP controller makes it easy to load these files directly via USB.
Automate Your Wood Turning
Stop turning by hand. Increase your factory's output and consistency with the Superstar CX-1530 CNC Wood Lathe.
