Product Overview

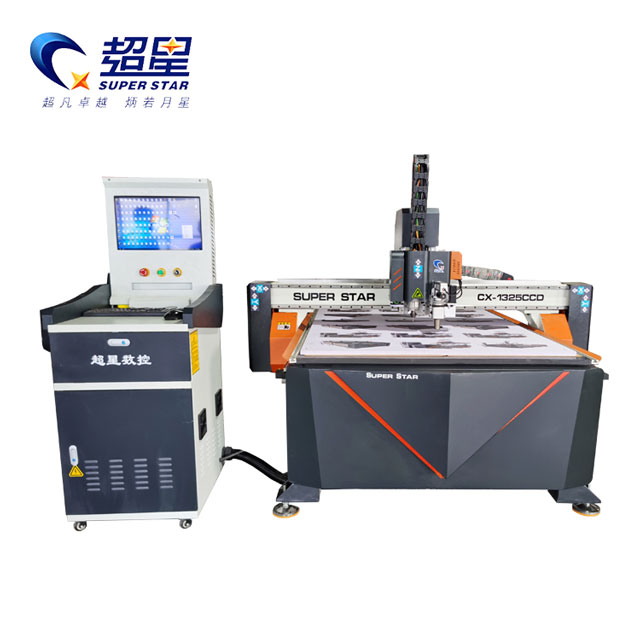

The Superstar CX-1325CCD (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) solves the biggest challenge in the advertising industry: accurately cutting out pre-printed graphics . Standard CNC routers operate strictly by G-code coordinates. If a printed sheet of acrylic or foam board is loaded onto the table slightly misaligned, the router will ruin the print.
The CX-1325CCD eliminates this issue. Utilizing a high-definition CCD camera, the machine scans the registration marks on the printed material . The intelligent Xingduowei 204A control system automatically recalculates the toolpath to match the exact position and rotation of the print, guaranteeing flawless contour cuts every time . Built on a rigid, seamlessly welded steel bed that has undergone high-temperature aging, the machine maintains absolute stability even when cutting at top speeds .
Core Advantages
Intelligent CCD Edge Detection: The integrated camera system recognizes printed registration marks, automatically adjusting the cutting path to perfectly match the printed graphics, eliminating manual alignment errors .
Ultra-High-Speed Spindle: Equipped with a 3KW water-cooled spindle featuring high-precision ceramic bearings . It operates at an astounding 40,000 RPM, allowing for incredibly fast, melt-free cutting of sensitive plastics, acrylics, and density boards .
High-Adhesion Vacuum Table: Features a powerful 7.5KW vacuum pump that securely grips large, flexible sheets of media flat against the 1300x2500mm table, entirely eliminating the need for mechanical clamps .
Rapid Processing Capabilities: Driven by Leadshine 750W servo motors and a precision rack-and-pinion transmission, the machine achieves maximum empty travel speeds of 80m/min and cutting speeds of up to 50m/min .
Technical Parameters
Feature | Specification |
Model | CX-1325CCD |
Working Area (X × Y × Z) | 1300 mm × 2500 mm × 120 mm |
Spindle Motor | 3KW / 220V Water Cooling (Ceramic Bearings) |
Spindle Speed | Up to 40,000 RPM / min |
Control System | XINGDUOWEI 204A High-Speed Control System |
Drive Motors | Leadshine 750W Servo Motors |
Transmission | Rack Drive (X/Y) / Screw Drive (Z) |
Guide Rails | Taiwan 20mm Square Linear Guide Rails |
Maximum Empty Travel | 80 m/min |
Maximum Processing Speed | 50 m/min |
Repetitive Accuracy | ± 0.05 mm |
Vacuum Adsorption | 7.5KW Vacuum Pump |
Working Voltage | 380V / 50HZ |
Detailed Component Analysis
Unlike stepper motors, the closed-loop Leadshine servo motors provide continuous positional feedback to the controller . This guarantees rapid acceleration, superior torque, and ensures the machine never "loses steps" during high-speed, complex contour cutting .
All three axes (X, Y, Z) ride on premium Taiwan 20mm square linear guide rails . These widened rails provide a massive contact surface, bearing heavy loads while delivering ultra-smooth, friction-free movement critical for clean edge finishes on acrylic.
Equipped with an electric automatic lubrication system that periodically delivers oil to the guide rails and drive components, minimizing operator maintenance and drastically extending the machine's service life .
Applicable Industries & Materials
Advertising & Signage: Large-format word cutting, contour cutting of printed labels, and LED/neon light groove routing .
Mold Making: High-speed processing of MDF and medium fiberboards for vacuum-molded (blister) light box molds .
Display Fabrication: Hole-shaped literal cutting and intricate hollowing out of display stands .
Compatible Materials: Acrylic, PVC, Density Boards (MDF), Medium Fiber Boards, KT boards, and composite plastics .
Why Choose Superstar CNC?
Optimized for the Sign Industry: This machine is purpose-built for the unique demands of modern sign makers—combining the heavy-duty rigidity of an industrial wood router with the intelligent camera technology required for print-to-cut finishing .
Factory-Direct Value: As the original Jinan manufacturer, we provide high-end configurations (CCD camera, Leadshine Servos, 40K RPM Spindle) at highly competitive prices compared to Western brands .
Global Export Quality: We utilize imported, high-flexible shielded cables to prevent electronic interference, ensuring your machine runs flawlessly 24/7 in demanding factory environments .
Frequently Asked Questions (FAQ)
Q: Do I need special software to use the CCD camera?
A: The Xingduowei control system is designed to work seamlessly with the CCD hardware . You will output your designs from standard CAD/CAM or design software (accepting G Code, DXF, PLT formats) including the registration marks, and the machine's onboard system handles the alignment .
Q: Can this machine cut standard, unprinted wood?
A: Absolutely. While the CCD camera is designed for printed materials, the machine itself is a heavy-duty, high-speed CNC router. It can easily cut and engrave non-printed MDF, plywood, and solid wood just like a standard router .
Q: Why is 40,000 RPM important for acrylic?
A: Cutting plastics and acrylics at high speeds can cause the material to melt and fuse back together behind the bit. A 40,000 RPM spindle allows for extremely fast feed rates (up to 50m/min) while ensuring a clean, glass-like chip-free edge that doesn't melt .
