Superstar CX-1500S Intelligent CNC Fiber Laser Tube Cutting Machine

The Superstar CX-1500S CNC Fiber Laser Tube Cutting Machine is an intelligent, high-efficiency solution designed for the rapid processing of metal pipes. Unlike traditional saws or milling machines, the CX-1500S requires no technical drawings—operators simply input parameters to start cutting. Equipped with a 1500W Gangchun Laser Head and a robust 4-linkage dual chuck system, it handles round, square, rectangular, and elliptical tubes (10-108mm diameter) with zero surface damage. Ideal for furniture, fitness equipment, and construction industries, it delivers burr-free edges and complex hole cutting in a single pass.

Model:
CX-1500S
Brand:
Superstar CNC


SKU:
Availability:



Inquire

Product Description

Product Overview

The Superstar CX-1500S (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) revolutionizes pipe fabrication by simplifying the workflow. Traditional tube cutting often involves complex CAD drawing and manual programming. The CX-1500S eliminates this barrier with its parametric input system—users just enter the tube dimensions and cutting type (e.g., cut-off, hole, bevel), and the machine automatically generates the path.

Capable of processing standard 6-meter pipes, its segmented body design allows for easy transport and installation. Whether you are cutting stainless steel handrails or carbon steel structural parts, the CX-1500S ensures high speed (up to 8000mm/min) and high precision (±0.2mm).

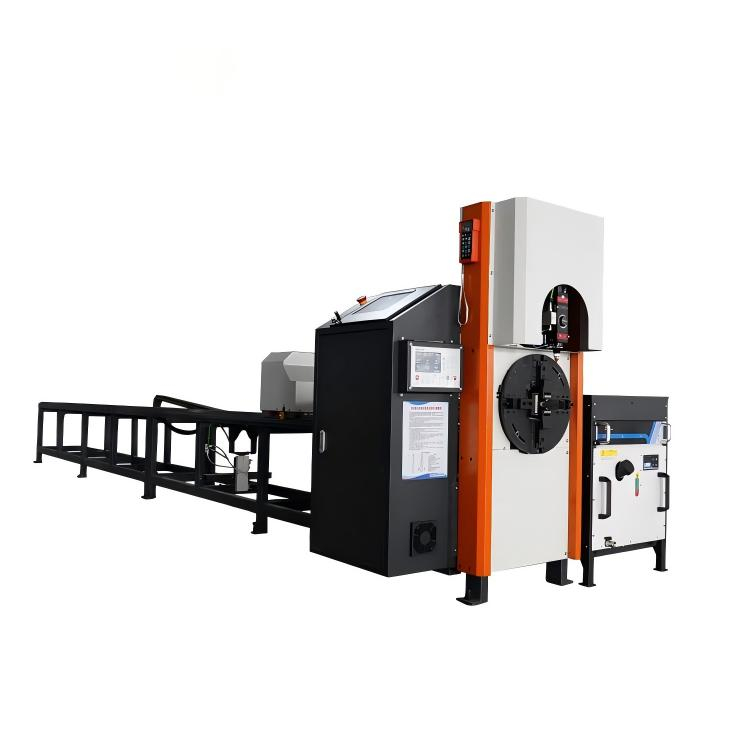

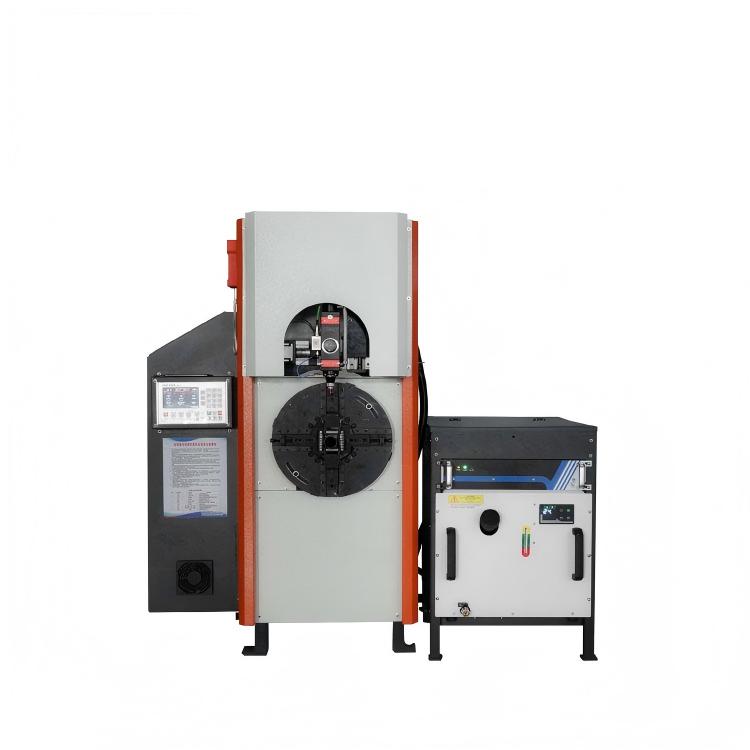

CX-1500S CNC Fiber Laser Tube Cutting Machine

Core Advantages (The "Why Us")

Draw-Free Operation: The system features a graphical interface where operators simply input numbers (length, diameter, angle). No CAD drawing skills are required, significantly reducing training time.
Non-Destructive Clamping: Featuring Four-Linkage Dual Chucks, the machine grips tubes firmly without scratching or deforming the surface, crucial for polished stainless steel or aluminum pipes.

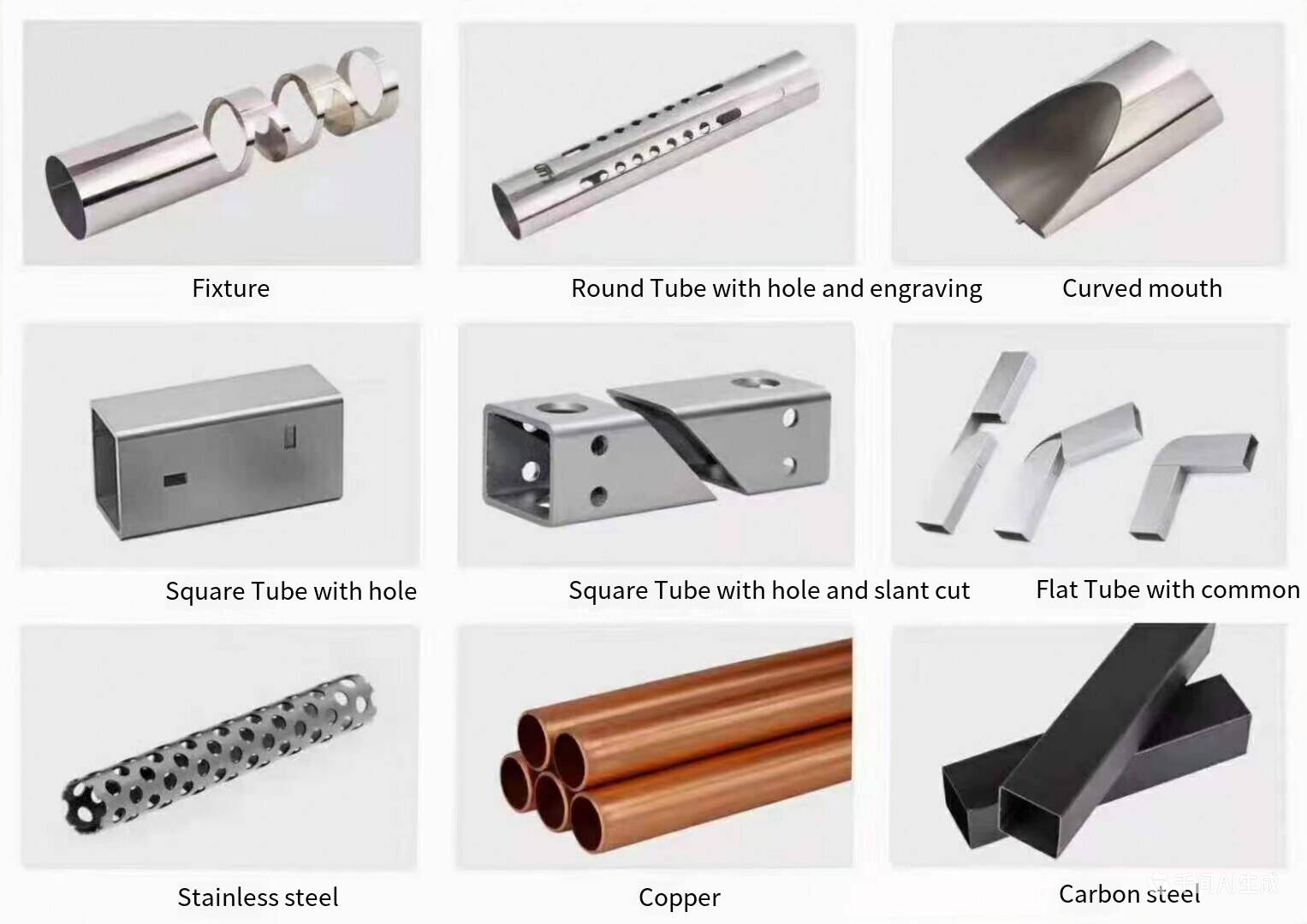

Versatile Cutting Capabilities: As shown in our sample gallery, it handles not just straight cuts but also 45° bevels (splicing), intersecting holes, arc mouths, and slotted patterns on round, square, and flat tubes.
Split-Body Design: The machine body is designed in two sections, solving the logistical challenge of transporting long machines and making it easier to fit into smaller workshops.

Technical Parameters

Feature	Specification
Model	CX-1500S
Laser Source	1500S Fiber Laser
Laser Head	Gangchun Precision Head
Tube Diameter Range	10mm - 108mm
Control System	Fangling LX4510H
Servo Motors	Y: 750W
Max. Cutting Speed	0 - 8000 mm/min
Positioning Accuracy	±0.2 mm
Repeatability	±0.01 mm
Applicable Tube Types	Round, Square, Rectangular, Elliptical, Angle Iron
Max. Cutting Thickness	3mm (Material dependent)
Drive System	Precision Rack & Pinion
Guide Rails	Precision Square Guide Rails
Chuck Type	Manual Self-Centering Chuck
Tail Material Length	~120 mm
Machine Dimensions	6600mm × 830mm × 1330mm
Total Weight	470 KG
Power Supply	AC 220V / 50HZ

Detailed Configuration & Component Analysis

Fangling LX4510H Control System:

A dedicated CNC system for tube cutting that supports multi-axis interpolation. Its user-friendly interface displays real-time cutting paths and supports "One-Click" processing for common shapes like elbows and tees.

Precision Servo Drive:

The combination of 750W and 400W servo motors ensures the chuck rotates and feeds with high torque and agility. This allows for rapid acceleration when cutting complex patterns (e.g., lace designs on lamp tubes).

Water Chiller 1500S:

Includes a matched industrial water chiller to keep the fiber laser source at optimal temperature, ensuring stable beam quality even during 24/7 continuous operation.

CX-1500S CNC Fiber Laser Tube Cutting Machine

Applicable Industries & Materials

Metal Furniture: Cutting legs for tables, chairs, and bed frames (Square/Round/Oval tubes).
Fitness Equipment: Precision cutting of heavy-gauge carbon steel pipes for gym machines.
Lighting & Decoration: Intricate pattern cutting on thin-walled stainless steel or copper tubes for lamps (as seen in sample images).
Construction: Angle iron and channel steel cutting for shelving and structural supports.
Materials: Stainless Steel, Carbon Steel, Galvanized Pipe, Copper, Aluminum, and Alloy Steel.

Why Choose Superstar CNC?

Humanized Design: All buttons and switches are ergonomically placed for comfort. The menu-driven operation prompts the user at every step, minimizing errors.
Cost-Effective Efficiency: Compared to million-dollar laser centers, the CX-1500S offers 80% of the capability at a fraction of the cost, making it perfect for SMEs.
Proven Reliability: Backed by Jinan Jinshengxing Machinery, a trusted manufacturer with global export experience. We provide video tutorials (see YouTube link below) and remote technical support.

Frequently Asked Questions (FAQ)

Q: Can it cut angle iron and channel steel?

A: Yes, the CX-1500S is capable of cutting angle iron and channel steel in addition to standard round and square pipes.

Q: Do I need to buy special gas?

A: The machine can cut using compressed Air, which is the most economical option. For thicker or higher-quality finishes on stainless steel, Nitrogen or Oxygen can be used.

Q: How long is the tail waste?

A: The tail material length is approximately 12cm, which is highly efficient for a machine of this class, reducing material waste.

Q: Is the machine hard to install?

A: The split design makes it easy to move. We provide a detailed installation video. Connect the two sections, align the rail, plug in power (220V), and you are ready to cut.
