Product Overview

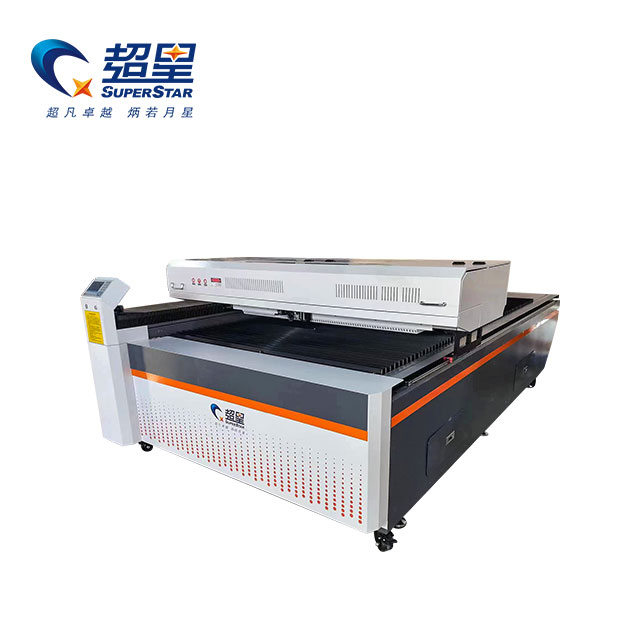

The Superstar 1325-300W Screw CO2 Laser (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is engineered for the heavy signage and architectural modeling industries. When cutting thick acrylic or wood, standard belt-driven lasers often leave a "sawtooth" or ribbed effect on the cut edge due to micro-vibrations in the belt.
This machine eliminates that problem by utilizing rigid, high-precision ball screws. This mechanical upgrade, paired with an ultra-high-power 300W laser tube, ensures that the laser head moves with absolute stability. The result is a flame-polished finish on thick acrylics and a clean, vertical kerf on thick MDF, saving your factory hours of manual sanding and polishing.
Core Advantages
Precision Ball Screw Transmission: Replaces standard rubber timing belts with Taiwan TBI ball screws. This guarantees zero-backlash motion, ensuring perfectly smooth curves and highly accurate repositioning (±0.01mm) on heavy materials.
300W Ultra-High Power: The high-capacity 300W sealed CO2 glass laser tube provides the intense energy required to cut through thick materials (up to 30mm acrylic or 20mm MDF) in a single, continuous pass.
Heavy-Duty Lathe Bed: The machine body is constructed from heavily welded steel tubes that undergo high-temperature stress relief. This industrial mass absorbs kinetic vibrations, keeping the focal point perfectly stable.
Full-Sheet Capacity: The 1300mm x 2500mm (4x8 ft) blade working table easily accommodates standard large-format sheets of wood and plastic, eliminating the need to pre-cut raw materials.
Technical Parameters
Feature | Specification |
Model | 1325-300W Screw CO2 Laser Cutting Machine |
Working Area | 1300mm × 2500mm |
Laser Power | 300W |
Laser Type | Sealed Water-Cooling CO2 Laser Tube |
Transmission System | High-Precision Ball Screw (X, Y Axis) |
Guide Rails | Taiwan HIWIN / PMI Square Linear Guide Rails |
Cutting Speed | [e.g., 0 - 600 mm/s (Depends on material thickness)] |
Repositioning Accuracy | ± 0.01 mm |
Control System | Ruida / Trocen DSP Controller (USB Offline Support) |
Cooling Method | Industrial Water Chiller (CW-6000 or CW-6200) |
Supported Formats | PLT, DXF, DST, BMP, AI, etc. |
Compatible Software | CorelDraw, AutoCAD, Photoshop |
Working Voltage | AC 220V ±10% / 50-60HZ |
Detailed Configuration
A 300W laser tube generates significant heat. The machine is paired with a high-capacity, dual-temperature industrial water chiller equipped with a refrigerant compressor to maintain the laser tube at an optimal, stable temperature, ensuring a long lifespan.
The industry-standard Ruida DSP controller features a color screen display and supports offline operation via USB flash drive. It offers advanced toolpath optimization, reducing laser head travel time and increasing overall cutting efficiency.
Specifically configured with a heavy-duty aluminum blade table. This design reduces the contact area with the thick material, preventing laser bounce-back that could scorch the underside of your acrylic or wood.
Applicable Industries & Materials
This high-power machine is strictly optimized for Thick Non-Metallic Materials:
Signage & Advertising: Cutting thick acrylic letters, illuminated sign boxes, and heavy plastic displays.
Woodworking & Furniture: Precision cutting of MDF, plywood, and solid wood for decorative screens, acoustic panels, and custom furniture parts.
Die Board Making: Cutting precision slots in thick wooden die boards for the packaging industry.
Compatible Materials: Acrylic (Plexiglass), MDF, Plywood, Bamboo, Plastics, PVC, and thick Leather/Rubber.
Why Choose Superstar CNC?
Specialized Engineering: Not all manufacturers can effectively integrate a 300W tube with a ball screw system. Jinan Jinshengxing Machinery has the precise milling capabilities required to perfectly align ball screws over a 2.5-meter bed.
Lower Running Costs: Compared to buying a fiber laser to cut thick plastics or wood (which fiber cannot do effectively), this 300W CO2 system offers the perfect balance of massive cutting power and low initial investment.
Global Support: We provide comprehensive English manuals, video training for the Ruida software, and remote technical support to get your heavy-duty cutting operations running immediately.
Frequently Asked Questions
Q: Can this 300W CO2 machine cut thin sheet metal?
A: This specific configuration is optimized for non-metals. However, if you need to cut thin metals (like 1-2mm carbon steel) alongside thick acrylic, we can upgrade the cutting head to a "Mixed Metal/Non-Metal" auto-focus laser head. Please specify this requirement when requesting a quote.
Q: Why choose Ball Screw over Belt Transmission?
A: Belt transmissions are excellent for fast, lightweight engraving. However, when cutting thick materials slowly, belts can stretch or vibrate microscopically. Ball screws are rigid, meaning the cut edge on thick acrylic will be perfectly smooth and glass-like, requiring no flame polishing.
Q: What is the lifespan of a 300W CO2 laser tube?
A: With proper maintenance and strict temperature control using the provided water chiller, a premium 300W CO2 tube typically lasts between 8,000 to 10,000 working hours before needing replacement.
Cut Thicker, Cut Smoother
Eliminate the bottleneck of post-cut polishing. Upgrade to the extreme precision and power of the Superstar 1325-300W Screw CO2 Laser Cutting Machine.
Request a Custom Factory Quote Today
