Product Overview

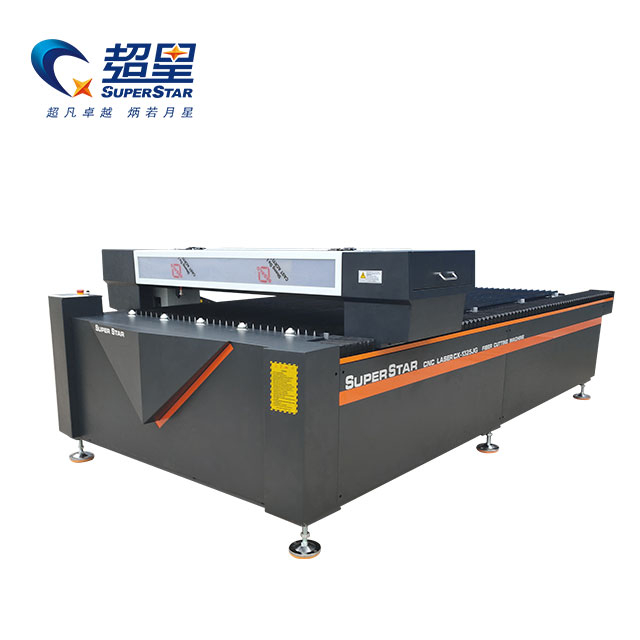

The Superstar 1325-300WCCD (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) merges extreme cutting power with intelligent optical recognition. Traditional laser cutters require manual alignment when cutting printed materials, leading to slow production and high scrap rates. This machine integrates a CCD vision system that scans the material, adjusts for any print distortion, and cuts exactly along the printed contour.
Coupled with a heavy-duty rack rail transmission—which replaces standard rubber belts on the Y-axis—the machine maintains absolute rigidity. This prevents the "sawtooth" effect when cutting thick 20mm+ acrylics or dense wood, making it the ultimate tool for the advertising, garment, and craft industries.
Core Advantages
Intelligent CCD Vision System: The integrated camera system automatically locates registration marks or printed outlines, enabling fast and flawless contour cutting of printed fabrics, leather, and advertising boards.
High-Quality Rack Transmission: Upgraded with 20mm guide rails and a Y-axis gear rack. This provides higher speed, superior wear resistance, and much higher accuracy than standard belt-driven CO2 lasers.
Continuous 24-Hour Operation: Equipped with premium Leadshine 758 easy Servo motors and drivers, guaranteeing that the machine can run continuously for 24 hours at high speeds without losing steps or synchronization.
Advanced Breakpoint Memory: Features an intuitive touch screen control system with USB offline capabilities. If power is interrupted, the breakpoint continuation function ensures the laser resumes exactly where it left off, saving expensive raw materials.
Technical Parameters
Feature | Specification |
Model | 1325-300WCCD Rack Co2 Laser Cutting Machine |
X. Y Cutting Area | 1300 × 2500mm |
Laser Power | 300W Xinrui |
Laser Type | Hermetic and detached CO2 laser tube, water-cooling |
Engraving Speed | 0 -- 1200 mm/s |
Cutting Speed | 0 -- 600 mm/s |
Re-position Accuracy | ± 0.01 mm |
Maximum Scanning Precision | 0.0254 mm |
Minimum Letter Size | English 1mm |
X.Y Guiding System | Guide Rails 20mm and Y rack, Z screw |
Driving System | Leadshine 758 easy Servo Motor |
Controller System | RD (Ruida) system with CCD |
Water Chiller | CW5300 water chiller |
Supported Format | HPGL(PLT), DXF, G-CODE, DST, AI |
Working Voltage | Single phase AC220V 50-60Hz |
Packing Size | 3005 × 1925 × 1050 mm |
Detailed Configuration
This ultra-high-power glass tube provides the intense thermal energy needed to slice through thick wood, MDF, and acrylics in a single pass while maintaining a concentrated beam profile for detailed engraving.
The industry-leading Ruida controller is seamlessly integrated with the optical CCD camera. It is highly compatible with CorelDraw, AutoCAD, and Photoshop, allowing for direct original output functions with zero data translation errors.
Bridging the gap between stepper and full servo motors, the Leadshine 758 provides closed-loop feedback. This means the motor constantly checks its position, entirely eliminating the risk of lost steps during rapid direction changes.
Applicable Industries & Materials
This high-power, vision-enabled machine is perfectly suited for diverse non-metallic applications:
Advertising & Signage: Cutting printed double-color plates, thick acrylic letters, and display stands.
Textile & Garments: Contour cutting of printed plastic cloth, clothing patterns, leather goods, and embroidered patches.
Woodworking & Crafts: Engraving and cutting wooden crafts, bamboo carving, and paper-cut toys.
Compatible Materials: Wood, stone (engraving only), acrylic, plastic, cloth, leather, paper, and bamboo.
Why Choose Superstar CNC?
Humanized Industrial Design: From the user-friendly touch screen to the offline USB operation, every aspect is designed to make your factory floor more flexible and efficient.
Complete Cooling Solution: The package includes a high-capacity CW5300 industrial water chiller, ensuring the 300W laser tube remains at optimal temperatures for a maximized lifespan.
Reliable Factory Warranty: Jinan Jinshengxing Machinery provides a one-year warranty for the whole machine (with specific coverage for the laser tube up to 2500 hours and optical lenses), backed by our global technical support team.
Frequently Asked Questions (FAQ)
Q: Do I need to manually align printed materials before cutting?
A: No. The CCD camera system automatically scans the material's printed registration marks or contours and adjusts the cutting path in the software, compensating for any skew or distortion in the material placement.
Q: Can a 300W laser engrave fine details?
A: Yes. While 300W is incredibly powerful for cutting, the machine's precision transmission and RD controller allow for engraving speeds up to 1200mm/s with a maximum scanning precision of 0.0254mm, making it fully capable of detailed work.
Q: What is the advantage of Rack transmission on the Y-axis?
A: Standard lasers use rubber belts which can stretch or vibrate when moving a heavy 300W laser carriage over a 2.5-meter bed. The steel gear rack provides rigid, positive engagement, ensuring smooth, high-speed travel without the "wobble" that ruins edge quality on thick acrylics.
Cut Smart, Cut Fast, Cut Thick
Combine massive CO2 cutting power with intelligent visual recognition. Maximize your output with the Superstar 1325-300WCCD Rack CO2 Laser Cutting Machine.
