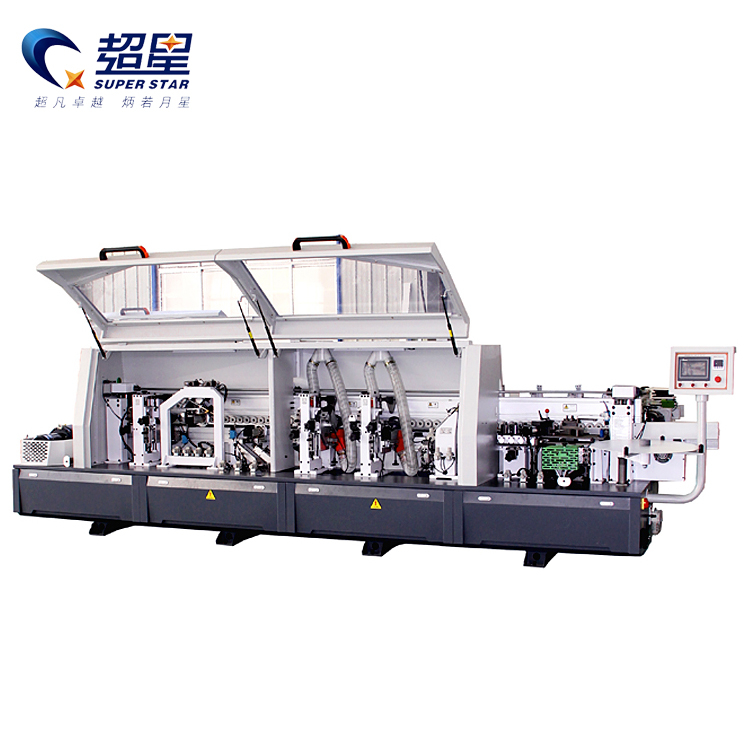

Superstar CX-465D Industrial Automatic Edge Banding Machine

Product Overview

The Superstar CX-465D (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is a heavy-duty edge bander engineered to eliminate manual reworking. In competitive markets, the quality of the edge defines the quality of the furniture. The CX-465D ensures that every panel leaving your factory has clean, rounded, and polished edges that are soft to the touch.

With its comprehensive 7-station layout, including the critical Pre-Milling and Corner Rounding functions, it processes melamine, PVC, ABS, and wood veneer strips with equal precision. This machine effectively replaces 4-5 manual workers, delivering consistent output shift after shift.

Core Advantages

• Diamond Pre-Milling Station: Dual high-frequency milling cutters remove up to 1-2mm of the panel edge before gluing. This removes "saw marks" or swelling caused by humidity, creating a perfectly flat surface for an invisible glue bond.

• High-Speed Corner Rounding: A dedicated motor contours the front and rear corners of the panel, eliminating the sharp, square edges typical of cheaper machines. This feature is essential for high-end cabinet doors and office desktops.

• Stable Gluing Mechanism: Features a Teflon-coated glue pot with precise dosing control. The quick-melt system ensures glue is ready fast without overheating or burning.

• Heavy-Duty Chain Conveyor: The track uses industrial chain pads with wide contact surfaces to grip the panel firmly, preventing it from shifting or vibrating during high-speed trimming (up to 23m/min).

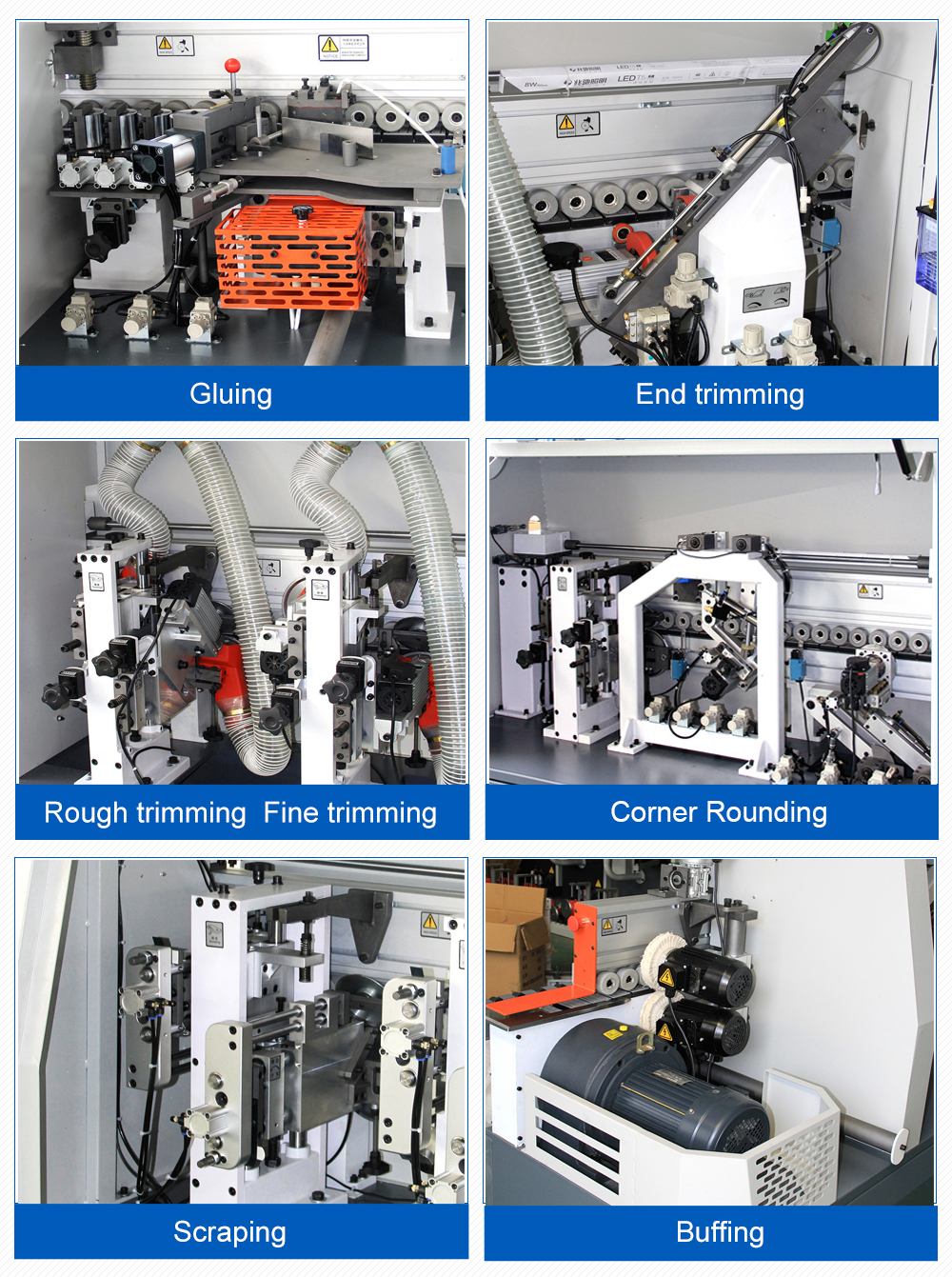

Detailed Configuration & Component Analysis

• Touch Screen Control:

The suspended PLC touch screen allows operators to monitor glue temperature and turn individual stations on/off with a tap. Fault diagnostics are displayed in clear English, making troubleshooting simple.

• Double Trimming Units:

The machine performs two passes of trimming: Rough Trimming removes the bulk of the excess tape, while Fine Trimming uses a radius cutter to create a smooth curve on 2mm/3mm PVC tape.

• Buffing Unit:

Cloth buffing wheels at the exit station polish the finished edge, restoring the color of the PVC (which can turn white after scraping) and removing any residual glue for a clean, retail-ready look.

Applicable Industries & Materials

• High-End Cabinetry: Producing frameless kitchen cabinets with seamless fronts.

• Office Furniture: Manufacturing heavy desks and conference tables with thick (3mm) impact-resistant edges.

• Commercial Fit-outs: Shop displays and hotel furniture requiring durability.

• Materials: MDF, Particle Board, Plywood, Blockboard banded with PVC, ABS, Acrylic, or Wood Veneer tape.

Why Choose Superstar CNC?

• Complete Solution Provider: We don't just sell the router; we equip your entire factory. The CX-465D is designed to keep up with the output of our Nesting CNC machines.

• Quality Components: We use premium pneumatic components (AirTAC/SMC) and electrical parts (Delta/Siemens) to ensure the complex sequence of pneumatic actuations happens flawlessly millions of times.

• Spare Parts Availability: Edge banders have wear parts (buffing wheels, scraper blades). We keep a full stock ready for express shipment to keep your line running.

Frequently Asked Questions (FAQ)

Q: Why do I need Pre-Milling?

A: Even with a good saw blade, cut edges may not be 100% square or may have minor chipping. Pre-milling shaves off a thin layer to create a fresh, perfect edge right before the glue is applied, guaranteeing a tight, gap-free bond.

Q: Can it handle 45-degree bevel edges?

A: No, the CX-465D is for standard 90-degree straight edges. For bevel edging (handle-less doors), please ask about our specialized bevel edge banding models.

Q: How long does the glue take to heat up?

A: Typically 20-30 minutes from a cold start. We recommend turning it on first thing in the morning while prepping materials.

Q: Is installation difficult?

A: The machine is large (5.5m long) but ships mostly assembled. You need to connect power and air, and level the machine. We provide video guides, but for a machine of this complexity, we can also arrange a technician if needed.

The Perfect Finish, Every Time.

Don't let poor edging ruin your CNC work. Invest in the Superstar CX-465D Edge Bander for professional results.
