Product Overview

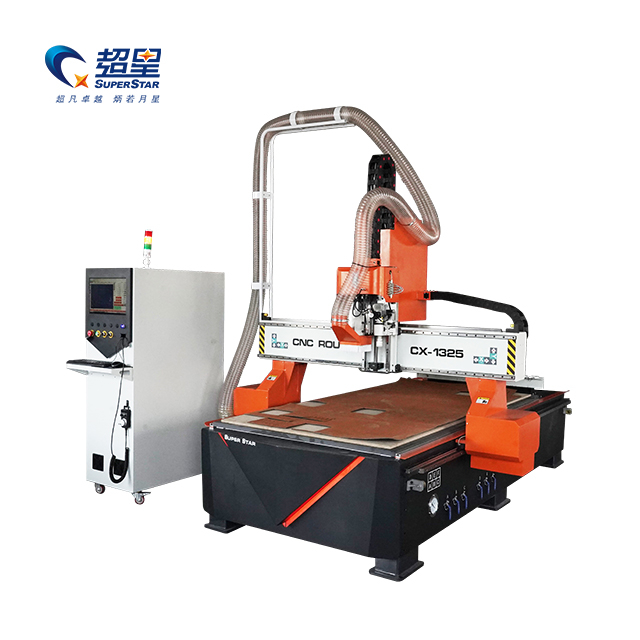

The Superstar 1325 ATC CNC Router (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the ultimate solution for marine fabricators producing custom EVA foam boat floors and traction pads. Machining soft, flexible EVA foam presents unique challenges; standard routers often tear the material or fail to mill crisp, clean V-grooves for faux-teak designs.
This machine is purpose-built to solve those issues. Utilizing an ultra-high-speed 9KW spindle (up to 24,000 RPM), it cleanly slices through dual-layer marine foam without fraying the edges. The 1300x2500mm (4x8 ft) table size perfectly accommodates standard oversized EVA foam sheets. Built on a heavily tempered steel bed to prevent micro-vibrations, the 1325 ATC ensures that every logo, ruler mark, and border groove is engraved with absolute ±0.05mm precision.
Core Advantages

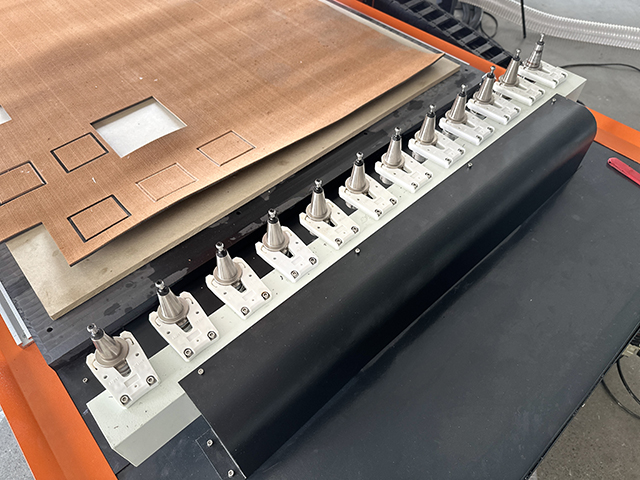

Linear Automatic Tool Changer (ATC): Features a high-capacity inline tool magazine. The machine automatically switches between a V-bit (for teak grooving), a ball-nose bit (for 3D logos), and an end-mill (for perimeter cutting) in seconds, allowing you to finish an entire boat deck layout in a single, uninterrupted program.
Ultra-High Suction Vacuum Table: EVA foam is lightweight and flexible, making it prone to lifting during cutting. The machine is equipped with a high-power vacuum adsorption table that aggressively pulls the foam flat against the bed, eliminating the need for adhesives or mechanical clamps during the cutting process.

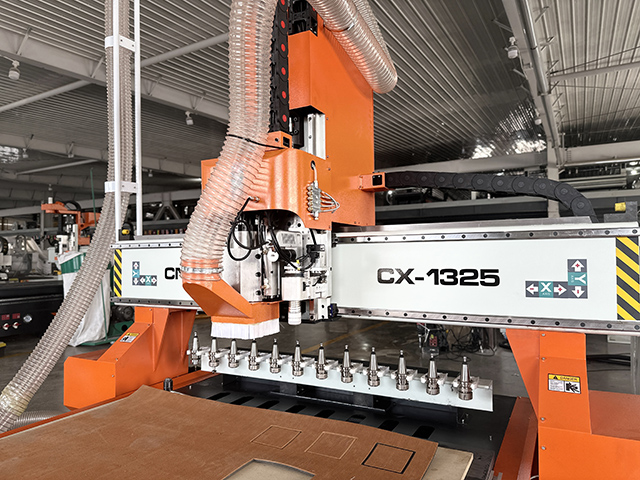

High-Speed Spindle Dynamics: The 9KW air-cooled spindle operates at exceptionally high RPMs, which is critical for cutting soft polymers like EVA without melting or tearing the material.
Intelligent Control System: Driven by a premium industrial controller (such as Taiwan Syntec or LNC), it seamlessly processes complex CAD/CAM files, optimizing tool paths for complex boat deck geometries.
Technical Parameters
Feature | Specification |
Model | 1325 ATC CNC Router (EVA Boat Special) |
Working Area (X × Y × Z) | 1300 mm × 2500 mm × 200 mm |
Spindle Motor | 9KW Air Cooling ATC Spindle |
Spindle Speed | Up to 24,000 RPM / min |
Control System | Taiwan Syntec / LNC Control System |
Drive Motors | High-Power Servo Motors & Drivers |
Tool Magazine | Linear Type Auto Tool Changer (8-12 Slots) |
Transmission (X/Y) | Helical Gear Rack & Pinion |
Transmission (Z) | Precision Ball Screw |
Guide Rails | Taiwan Square Linear Rails |
Machine Accuracy | ± 0.05 mm |
Working Table | Multi-Zone Vacuum Adsorption Table |
Working Voltage | AC 380V / 50-60Hz / 3-Phase |
Detailed Component Analysis
The heavy gantry is driven by closed-loop servo motors. This guarantees ultra-smooth, rapid acceleration along the X and Y axes, ensuring perfectly fluid curves and arcs when cutting complex boat deck templates, without the "stuttering" often seen in cheaper stepper-driven machines.
The steel bed is seamlessly welded and undergoes a high-temperature aging treatment. This prevents the frame from warping over time, ensuring that the Z-axis depth remains perfectly consistent—which is vital when you need to mill through only the top color layer of a two-tone EVA foam sheet without cutting into the bottom layer.
Equipped with a high-efficiency dust collection hood that immediately extracts foam shavings, keeping the tool path clear and preventing the static-cling dust from clogging the tool changer or guide rails.
Applicable Industries & Materials

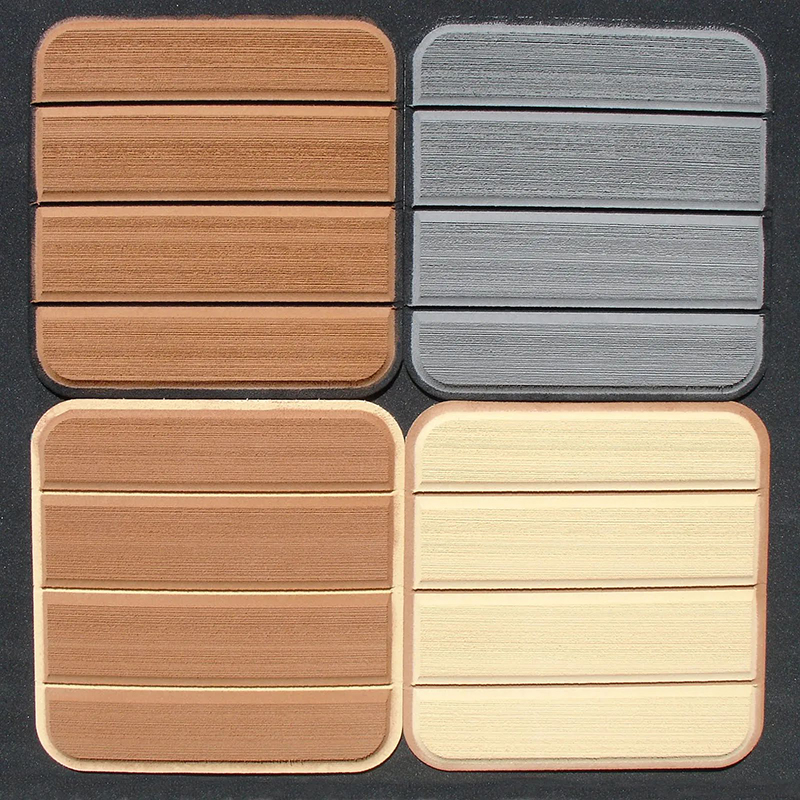

Marine Fabrication: Custom EVA foam boat decking, traction pads, helm station pads, and faux-teak flooring.
Custom Furniture & Cabinetry: High-volume nesting, grooving, and cutting of MDF and solid wood cabinets.
Advertising & Signage: Precision engraving and cutting of acrylic, PVC, and two-color boards.
Compatible Materials: EVA Foam, PE Foam, MDF, Plywood, Solid Wood, Acrylic, PVC, ABS, and composite plastics.
Why Choose Superstar CNC?
Versatility: While specifically optimized for the high speeds required by EVA foam, this is a heavy-duty router. When you aren't cutting boat decks, it effortlessly transitions to cutting thick solid wood doors or dense cabinet panels.
Factory-Direct Value: As the original manufacturer in Jinan, we provide high-end ATC configurations at highly competitive price points compared to Western brands.
Global Export Quality: We offer complete English technical support, rigorous factory testing before shipment, and global access to replacement parts to ensure your production line never stops.
Frequently Asked Questions (FAQ)
Q: Why do I need an ATC machine for EVA boat decking?
A: Creating a custom boat deck usually requires three steps: 1) Engraving logos/text with a fine bit, 2) Routing the faux-teak lines with a V-groove bit, and 3) Cutting the final perimeter shape with an end mill. An ATC machine swaps these tools automatically in seconds, whereas a manual machine forces the operator to stop and change bits three times per sheet, severely slowing down production.
Q: Can this machine maintain the exact depth needed to reveal the bottom color of two-tone EVA foam?
A: Yes. Because the machine utilizes a heavily tempered, perfectly flat bed combined with high-precision Taiwan ball screws on the Z-axis, it offers ±0.05mm depth accuracy. This allows you to precisely mill away the top layer (e.g., grey) to expose the bottom layer (e.g., black) with flawless consistency across the entire 4x8 sheet.
Q: Does the vacuum table hold down the foam securely?
A: Yes, the multi-zone vacuum table provides powerful, uniform suction. It is highly effective at holding down flexible, porous materials like EVA foam, completely eliminating the need for double-sided tape or physical clamps during the routing process.
