Two Machines, Zero Manual Tool Changes, Delivered Two Days Early: How We Equipped a Spanish Advertising Workshop for the Next Level — CX-1325 Linear ATC Case Study

A Note Before We Begin

Spain's advertising and decorative fabrication industry is one of the most design-forward in Europe. Workshops producing custom acrylic signage, PVC display systems, and solid wood decorative pieces are serving clients who expect precision, consistency, and fast turnaround — all at once.

The gap between what those clients expect and what most mid-sized workshops can actually deliver often comes down to a single, unglamorous bottleneck: tool changes.

Our Spanish client knew this better than anyone. They had been living with that bottleneck for years. In 2026, they decided to solve it — permanently.

This is the story of how we helped them do it.

1. The Client's Situation: A Skilled Workshop Held Back by a Manual Process

The client operates an advertising and custom woodworking factory in Spain. Their production covers three core material categories:

• Acrylic: Custom signage, illuminated letters, display panels, retail fixtures

• PVC: Exhibition displays, signboards, interior cladding panels, point-of-sale systems

• Solid wood: Decorative custom pieces, architectural millwork, bespoke interior elements

This is a materials-diverse, design-intensive operation. A typical job might require a profile cutting pass, a V-groove engraving pass, a pocket drilling sequence, and a finishing contour pass — each requiring a different tool geometry and cutting parameter set.

On their existing equipment, every one of those tool transitions meant the same thing: stop the machine, open the collet, pull the bit, insert the new bit, re-tighten, re-zero the Z-axis, restart.

Multiplied across dozens of jobs per day, across two machines, with operators who each had their own re-zeroing habits and tightening torques — the consequences were predictable:

❌ Problem 1: Manual Tool Changes Were Eating Production Time

Each manual tool change took 3–8 minutes depending on the operator and the bit type. On complex multi-tool jobs — common in advertising and decorative work — a single panel might require four or five tool changes. That is up to 40 minutes of non-cutting time per complex job, per machine, per shift. The machines were running. The spindles were not.

❌ Problem 2: Re-Zeroing Errors Were Causing Scrap

Every manual tool change requires the operator to re-establish the Z-axis zero reference. On expensive acrylic sheet or premium solid wood, a re-zeroing error of even 0.3mm means a ruined workpiece. The client's scrap rate on multi-tool jobs was a persistent problem — not because their operators were careless, but because manual re-zeroing at production pace is inherently imprecise.

❌ Problem 3: Delivery Commitments Were Under Pressure

With slow cycle times and unpredictable scrap rates, the workshop was consistently under pressure on delivery. When a client came to us, they had a specific, non-negotiable requirement: 25-day delivery from order to machine arrival. Their production schedule — and their client commitments — depended on it.

They were not just buying machines. They were buying back time.

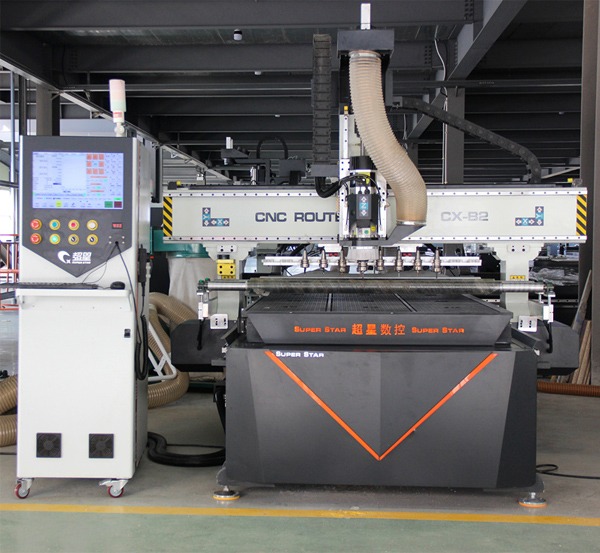

2. Why We Recommended Two CX-1325 Linear ATC Routers

After a detailed consultation covering the client's production mix, shift structure, material types, and output targets, our recommendation was specific: two units of the Superstar CX-1325 Linear ATC Woodworking CNC Router.

Not one machine. Two.

Here is the reasoning behind both the model choice and the quantity:

On the Model: Why Linear ATC Was the Only Correct Answer

The client's core problem was manual tool changes. The solution is, by definition, Automatic Tool Change (ATC). But not all ATC systems are equal — and for this client's production profile, the 12-slot linear ATC was the right architecture.

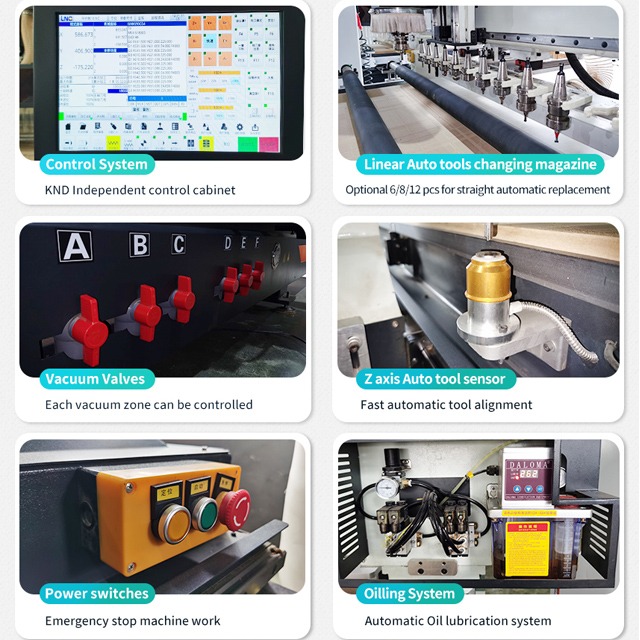

12-Slot Linear Tool Magazine — Complete Job in One Cycle

The linear tool magazine sits at the rear of the machine bed and holds 12 tools simultaneously. The spindle travels to the magazine, drops the current tool into its slot, picks up the next tool, and returns to the workpiece — automatically, in seconds, without operator intervention.

For a workshop producing multi-tool advertising and decorative jobs on acrylic, PVC, and solid wood, 12 tool slots means a complete job — profiling, engraving, V-grooving, pocket drilling, contour cutting — can be programmed and executed in a single uninterrupted cycle. The operator loads the sheet, starts the program, and the machine handles every tool transition autonomously.

The manual tool change bottleneck is not reduced. It is eliminated.

9KW Air-Cooled ATC Spindle — Power for Every Material

The 9KW air-cooled ATC spindle provides the cutting force to handle the full range of the client's materials without compromise:

• Acrylic: High-speed clean cuts at 24,000 RPM with appropriate single-flute bits — no melting, no chipping

• PVC: Smooth profiling and engraving with consistent chip evacuation

• Solid wood: Deep relief carving and full-depth profiling with the torque to maintain speed through dense grain

Air cooling eliminates the water chiller maintenance associated with water-cooled spindles — a practical advantage for a busy production environment where maintenance downtime has a direct cost.

Servo Drive System + ±0.05mm Accuracy — Precision That Does Not Drift

Unlike stepper motors that can lose position under heavy cutting loads, the closed-loop servo drive system provides continuous position feedback. The machine always knows exactly where the spindle is — and corrects in real time if any deviation occurs.

Combined with Taiwan square linear guide rails and helical gear rack and pinion transmission on X/Y axes, the CX-1325 Linear ATC maintains ±0.05mm positioning accuracy across the full working area, across the full shift, across the full production week. For a workshop where re-zeroing errors were causing scrap on premium materials, this consistency is transformative.

Taiwan Syntec Controller — Intelligent, Nesting-Ready

The Taiwan Syntec control system reads complex nesting software files directly and features intelligent cross-border protection — preventing the spindle from traveling outside the safe cutting zone, which protects both the machine and expensive sheet materials from crash damage.

For advertising and decorative work involving complex multi-tool toolpaths on premium acrylic and solid wood, the Syntec controller's toolpath management and parameter memory mean that once a job is set up correctly, it runs correctly — every time.

Multi-Zone Vacuum Adsorption Table — Full Sheet, No Clamps, No Interruptions

The multi-zone vacuum table holds acrylic, PVC, and wood panels firmly without mechanical clamps. For advertising work where the full panel surface is often in play — edge-to-edge cutting, full-surface engraving — the absence of clamps means the spindle has unobstructed access to the entire workpiece in a single setup.

On the Quantity: Why Two Machines

The client's production volume and shift structure required two machines — not as redundancy, but as parallel capacity. With two CX-1325 Linear ATC units running simultaneously:

• Material specialization: One machine optimized for acrylic and PVC work; the other for solid wood and mixed decorative jobs — tool magazines loaded with material-specific bit sets, no cross-contamination of cutting parameters

• Continuous throughput: While one machine runs a long 3D carving cycle on solid wood, the second handles high-speed acrylic cutting — no production waiting on a single machine's cycle time

• Redundancy: If one machine requires maintenance or a tool change outside the magazine, production continues on the second — delivery commitments are protected

For a workshop with the client's order volume and material diversity, two machines was not an upsell. It was the correct engineering answer.

Full Technical Specifications

3. The Delivery Commitment: 25 Days — Beaten by Two

The client's 25-day delivery requirement was not a preference. It was a hard constraint tied to their own client commitments and production ramp-up schedule. When they stated it, they were watching to see how we responded.

We did not hedge. We confirmed the timeline, locked it into our production schedule as a hard constraint, and then managed every stage of the process against it — exactly as we described in our Bolivia case study.

The result: both machines shipped on Day 23 — two full days ahead of the client's deadline.

How we achieved it:

① Dual-machine production scheduling from day oneTwo machines in parallel production requires careful scheduling to avoid resource conflicts on shared components — spindles, control cabinets, guide rail sets. We planned the production sequence for both units simultaneously, identifying and pre-staging long-lead components before assembly began.

② Parallel QC inspectionBoth machines were inspected simultaneously by two QC engineers rather than sequentially — cutting the inspection phase time in half without reducing the depth of inspection on either unit.

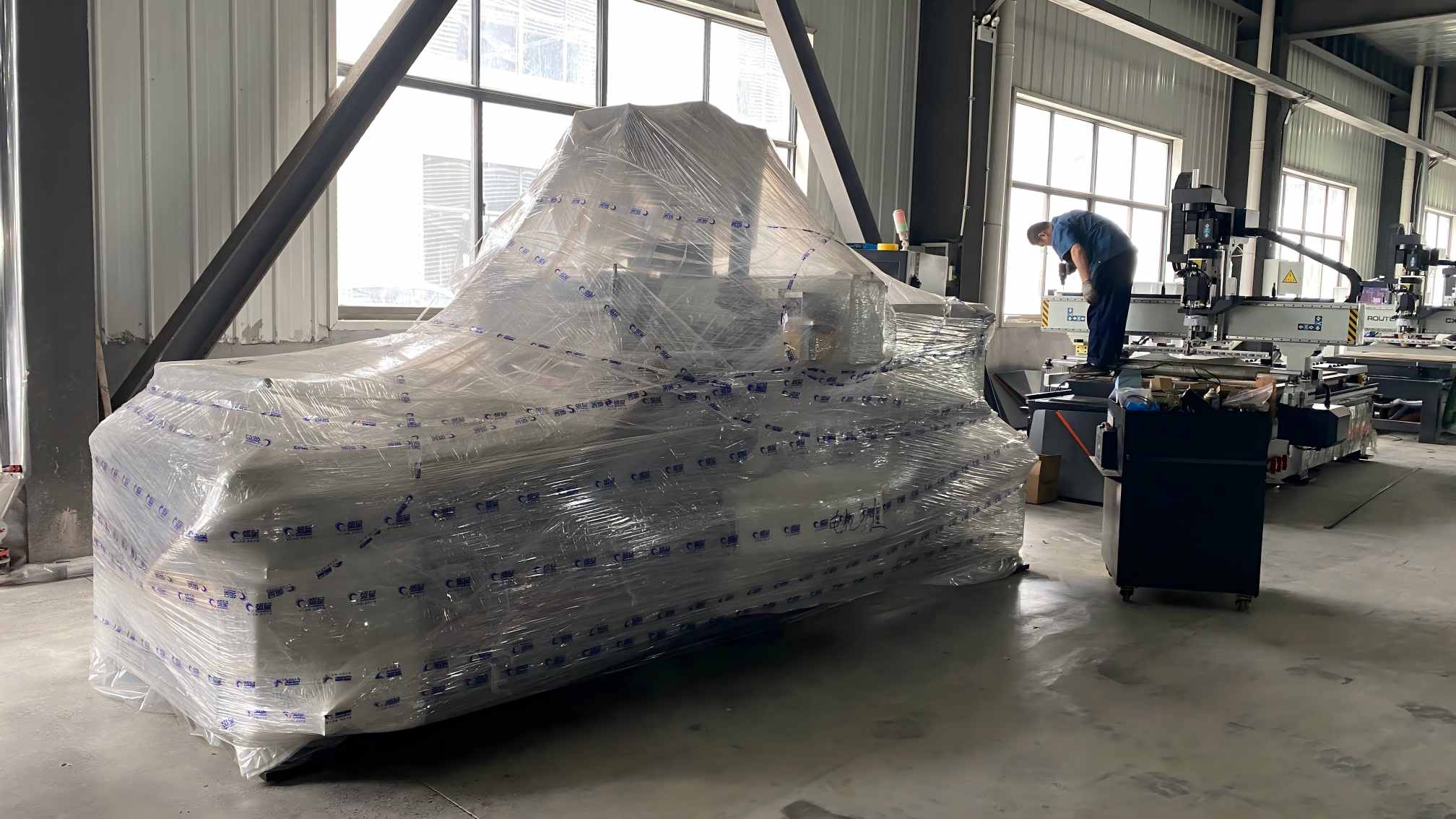

③ Pre-staged packaging materialsExport crating materials for both machines were pre-built and staged before the machines completed final assembly. The moment both units passed QC sign-off, packaging began immediately — no waiting for materials to be sourced or constructed.

④ Coordinated freight bookingBoth machines were booked as a single coordinated consignment — same vessel, same container where possible — simplifying customs documentation and ensuring the client received both units together rather than in separate shipments with separate arrival dates.

The client received the shipping confirmation for both machines on Day 23. Their response was immediate: "Two days early, two machines. We did not think this was possible."

4. Quality Inspection: What We Verified Before Packaging

Two machines. Two complete inspection protocols. No shortcuts.

For each unit, our pre-shipment QC covered:

• Frame geometry: Gantry squareness verified across full Y-axis travel on both machines

• ATC function test: All 12 tool slots cycled — automatic tool pickup, secure retention, and release confirmed for every slot position

• Tool change repeatability: Z-axis zero reference verified as consistent across 20 consecutive automatic tool changes — the critical test for scrap elimination

• Servo positioning accuracy: Repeated positioning test patterns on all three axes — results within ±0.05mm specification on both machines

• Vacuum table suction test: All zones tested at production vacuum levels; uniform hold confirmed across full table surface

• Syntec controller function: Complex multi-tool toolpath loaded and executed; cross-border protection triggered and verified; all axis movements confirmed

• Full material cutting test: Each machine ran a complete multi-tool job — acrylic profiling, PVC engraving, solid wood relief carving — recorded on video

Both test videos were sent to the client simultaneously. Both were approved the same day.

5. The Service Journey: Timeline

Days 1–2 Needs assessment: production mix (acrylic/PVC/solid wood),

shift structure, tool change pain points, delivery deadline confirmed

Two-machine recommendation presented and rationale explained

Days 3–4 CX-1325 Linear ATC × 2 approved; specifications confirmed

25-day delivery deadline locked into production schedule as hard constraintDay5 Contracts signed; dual-machine production begins immediately

Days 6–19Both machines manufactured in parallel

Long-lead components (9KW ATC spindles, Syntec controllers,

servo drive sets) pre-staged fromdayone

Export crating pre-built and staged during final assembly phase

Days 20–21 Parallel QC inspection: both machines inspected simultaneously

ATC cycle test, servo accuracy test, vacuum test, full cutting test

Test videos forboth machines sent to client — approved same day

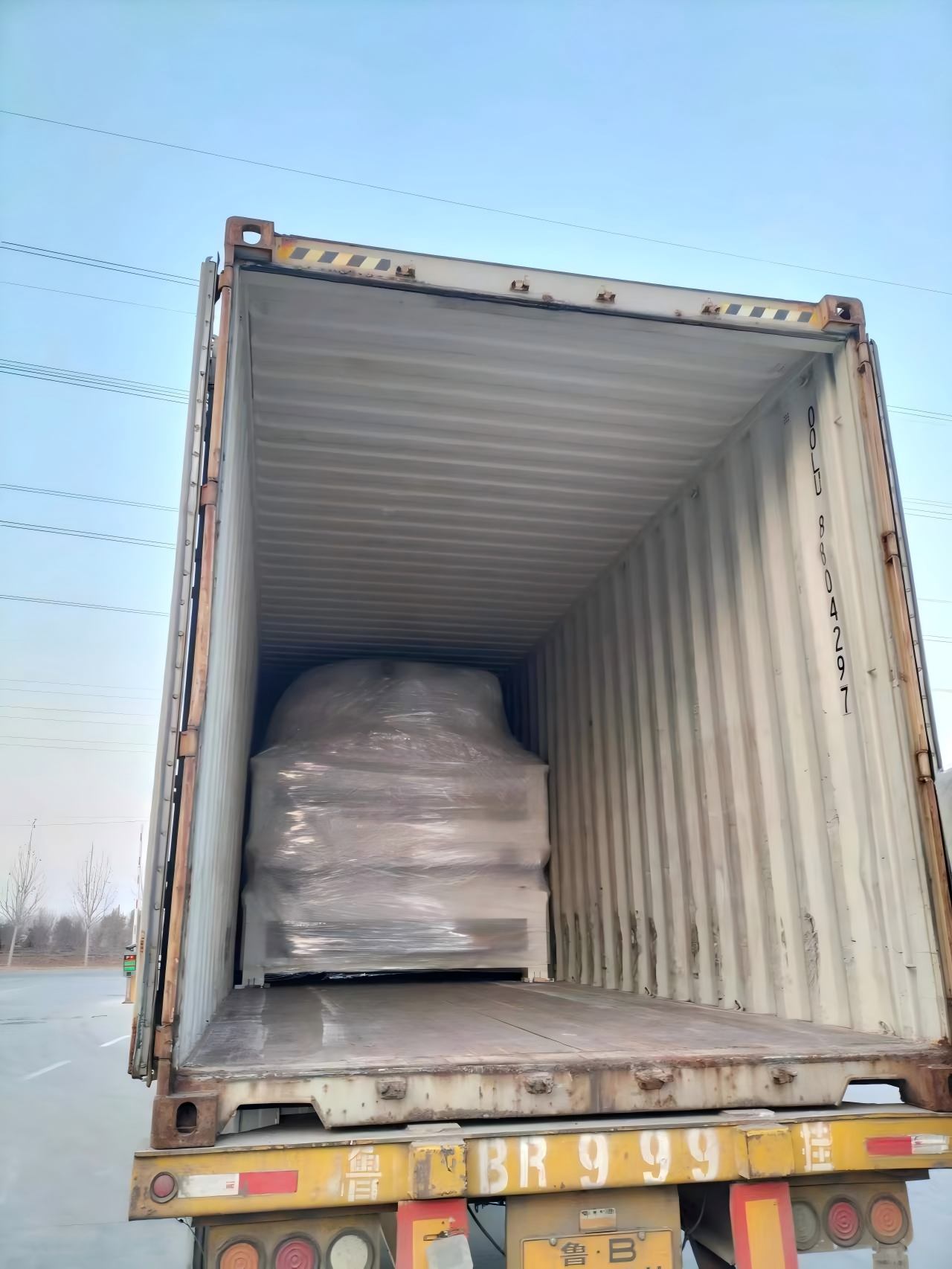

Days 22–23Both machines packaged and loaded as coordinated consignment

Day23Both machines shipped — TWO DAYS AHEAD OF25-DAY DEADLINE ✓

Shipping confirmation, B/L, andfull documentation sent to client

Days 24–38 Ocean freight transit to Spain

Post-arrival Remote video commissioning forboth machines:

Installation, vacuum connection, Syntec setup, ATC calibration,

first production runs on acrylic, PVC, and solid wood

Day42 Client infull dual-machine production

6. What Changed After Installation

The impact of replacing manual tool-change machines with two Linear ATC units was immediate and measurable:

✅ Tool Change Time: From Minutes to Seconds

Automatic tool changes on the CX-1325 complete in under 8 seconds. A complex 5-tool job that previously required 25–40 minutes of manual tool-change time now runs as a single uninterrupted cycle. The spindle is cutting, not waiting.

✅ Scrap Rate on Multi-Tool Jobs: Eliminated

With automatic tool changes maintaining consistent Z-axis zero reference across every tool transition, the re-zeroing errors that had been generating scrap on premium acrylic and solid wood disappeared. The client reported zero scrap attributable to tool change errors in the first month of operation.

✅ Throughput: Dramatically Increased

With two machines running uninterrupted multi-tool cycles, the workshop's daily output increased substantially. Jobs that previously occupied a full shift now completed in half the time. The client began accepting order volumes they had previously considered beyond their capacity.

✅ Delivery Reliability: Transformed

With predictable, consistent cycle times and near-zero scrap on premium materials, the workshop's ability to commit to and meet delivery deadlines improved fundamentally. The unpredictability that had been putting delivery commitments under pressure was gone.

"Before, every complex job was a negotiation between what the design required and what our machines could do without wasting material. Now the machine handles the complexity. We just load the sheet and run the program."

7. The Value We Delivered

8. What This Case Means for Workshops Like Yours

✅ Manual tool changes are not a workflow — they are a bottleneck with a known solutionIf your operators are stopping the machine to change bits multiple times per job, that time is not being spent making parts. It is being spent on a process that technology solved years ago. An ATC machine does not just save time — it removes an entire category of production interruption from your operation.

✅ Re-zeroing errors are a machine architecture problem, not an operator problemManual Z-axis re-zeroing after tool changes is inherently imprecise at production pace. The solution is automatic tool change with consistent, repeatable Z-axis reference — which is exactly what the linear ATC delivers. If your scrap rate on multi-tool jobs is higher than it should be, this is likely why.

✅ 12 tool slots means one program, one cycle, one finished partFor advertising and decorative work requiring multiple tool geometries — profiling, engraving, drilling, contouring — 12 slots means the entire job runs without interruption. Load the sheet, start the program, unload the finished part. That is the production model the CX-1325 Linear ATC enables.

✅ Two machines is not always twice the cost — it is sometimes the only way to meet volumeIf your production requires parallel material processing — acrylic and wood running simultaneously, or long carving cycles that cannot be interrupted for rush jobs — a single machine creates scheduling conflicts that two machines eliminate. The right number of machines is the number that matches your actual production structure, not the minimum you can get away with.

✅ Servo drives are non-negotiable for ATC machinesAn ATC machine running stepper motors is a compromise. Stepper motors can lose position under the heavy cutting loads that a 9KW spindle generates — and a lost-position error on a premium acrylic sheet is an expensive mistake. Servo drives with closed-loop feedback guarantee that the machine's position is always verified, always corrected, always accurate.

✅ A hard delivery deadline is a test — choose a supplier who passes itWhen you tell a supplier you need delivery in 25 days, the answer tells you everything about how they operate. We confirmed the timeline, locked it in, and shipped two days early. That is the standard we hold ourselves to on every order, regardless of size.

Final Thoughts

This Spanish workshop did not have a design problem. They did not have a skills problem. They did not even have a demand problem — their order book was full. What they had was a production architecture that was no longer fit for the work they were being asked to do.

Two CX-1325 Linear ATC machines changed that architecture. Manual tool changes became automatic. Re-zeroing errors became a memory. Cycle times became predictable. Delivery commitments became reliable.

And both machines arrived two days before they were needed — because that is what a hard deadline means to us.

If your workshop is producing complex multi-tool jobs on acrylic, PVC, or wood — and manual tool changes are the ceiling on your throughput and quality — the conversation we need to have is a short one.

Tell us your production mix, your shift structure, and your delivery requirements. We will tell you exactly what configuration solves it.
