Cutting Every Shape, Wasting Nothing: How We Delivered a Five Axis Bridge Saw to a Philippine Stone Factory

A Note Before We Begin

Stone fabrication is one of the most unforgiving industries in manufacturing. The material is heavy, expensive, and fragile in ways that only reveal themselves mid-cut. A wrong angle, a blade that drifts, a positioning error on a 300kg marble slab — any of these can turn a premium piece of rock plate into an expensive pile of offcuts.

For small and mid-sized stone factories across Southeast Asia, this is not a hypothetical risk. It is a daily reality. And for our client in the Philippines, it had become the single biggest constraint on their business.

This is the story of how a five axis bridge saw changed that.

1. The Client's Situation: Skilled Craftspeople, Limited by Their Equipment

The client operates a stone processing factory in the Philippines, specializing in two premium materials:

• Sintered rock plates : Large-format, ultra-dense sintered stone panels used in high-end interior design, kitchen countertops, and architectural cladding

• Marble slabs: Natural marble in standard and oversized formats for countertops, flooring, feature walls, and custom decorative applications

Their market is growing. Philippine construction and interior design demand for premium stone surfaces has been rising steadily, and the client had the supplier relationships and the client base to capitalize on it. What they did not have was the equipment to deliver on that demand consistently.

Their existing setup — typical of mid-sized stone factories in the region — was built around conventional straight-cut bridge saws and manual repositioning for anything beyond a 90-degree cut. The consequences showed up in three specific ways:

❌ Problem 1: Irregular and Angled Cuts Were Extremely Difficult

Any cut that deviated from a straight 90-degree line required manual repositioning of the slab, manual angle setting, and multiple trial passes. For 45-degree miter cuts — essential for countertop edge joints and feature wall corners — the process was slow, imprecise, and operator-dependent. For arc cuts, elliptical profiles, or custom shapes, it was effectively impossible at production scale. These jobs were either declined or heavily outsourced.

❌ Problem 2: Cutting Precision Was Insufficient for Premium Materials

Sintered rock plates are among the most demanding materials in the stone industry. They are extremely hard, dimensionally unforgiving, and expensive — a single large-format panel can represent significant material cost. On the client's existing equipment, dimensional tolerances were inconsistent. Pieces that should have been identical came off the machine with measurable variation, requiring hand-finishing or, in the worst cases, rejection.

❌ Problem 3: Material Waste Was Eroding Margins

The combination of imprecise cutting, manual repositioning errors, and the inability to optimize cutting layouts meant that material utilization was poor. On premium rock plate and marble, every percentage point of waste has a direct and significant cost impact. The client estimated that material waste was one of their largest controllable cost items — and their existing equipment gave them no tools to address it.

The client came to us with a clear objective: "We need a machine that can cut any shape we need, hold the precision our materials demand, and stop wasting stone."

2. Why We Recommended the Superstar 5+1 Five Axis Bridge Cutting Saw (CX-3220)

After reviewing the client's material range, cut type requirements, slab sizes, and production volume, our recommendation was the Superstar 5+1 Five Axis Bridge Cutting Saw (Model CX-3220). This is not an entry-level stone machine. It is a fully automated, industrial-grade stone processing center — and for this client's requirements, it was the only configuration that addressed every problem they described.

Here is the engineering case:

Core Advantage 1: True 5+1 Axis Linkage — Cut Any Shape, At Any Angle

The defining capability of the CX-3220 is its five-axis plus one linkage architecture:

• X axis: Longitudinal beam movement

• Y axis: Lateral transverse movement

• Z axis: Vertical spindle plunge

• A axis: Blade tilt — 0° to 90° (vertical to horizontal)

• C axis: Head rotation — full 360°

• +1: Independent 7.5KW high-speed drilling spindle

With the cutting head able to tilt to any angle from vertical to fully horizontal, and rotate to any compass direction, the machine executes cuts that are physically impossible on conventional bridge saws — without repositioning the slab.

What this means in practice for the client:

For a factory that had been declining or outsourcing irregular shape orders, this table represents an entirely new product catalogue — available from day one of operation.

Core Advantage 2: 15KW Cutting Motor + 7.5KW Drilling Spindle — Power for the Hardest Materials

Sintered rock plates are among the hardest materials processed in the stone industry — significantly harder than standard granite and far more demanding than marble. Cutting them at production speeds requires serious motor power.

The CX-3220 is equipped with:

• 15KW specialized cutting motor: Provides the sustained torque to drive diamond saw blades (350–500mm diameter) through dense sintered stone and thick marble at production feed rates — without the motor laboring or the blade deflecting

• 7.5KW independent high-speed drilling spindle: Handles basin holes, faucet cutouts, and edge grinding operations as an integrated function — no manual tool swap, no slab repositioning, no separate machine required

The two-spindle architecture means that a complete countertop — cut to shape, chamfered on all edges, with sink cutout and faucet holes — can be produced in a single automated cycle.

Core Advantage 3: Shanghai Weihong Intelligent Control + Industrial Camera — Precision and Layout Optimization

The Shanghai Weihong CNC control system with integrated industrial camera vision is the intelligence layer that transforms raw cutting power into precision manufacturing:

Automatic stone thickness measurement: The system measures actual slab thickness before cutting begins, automatically adjusting Z-axis parameters. No manual measurement, no depth errors from thickness variation.

Automatic blade diameter measurement: Monitors diamond blade wear in real time, adjusting cutting parameters to compensate — maintaining consistent cut quality as the blade wears, and alerting the operator when replacement is needed.

One-click photo layout: The wide-angle industrial camera captures the full slab surface in a single image. The operator marks defect areas, grain features, or color zones directly on the screen. The system automatically optimizes the cutting layout to avoid defects and maximize material yield — the most direct technological answer to the client's material waste problem.

DXF file import: Custom shapes designed in CAD are imported directly into the control system. No manual programming, no re-drawing on the machine. The operator imports the file, positions it on the slab image, and runs the program.

Core Advantage 4: 85° Hydraulic Tilt Table + Suction Cup Slab Mover — Safe Handling of Heavy Slabs

A 300kg marble slab or large-format rock plate is not a workpiece you handle carelessly. The CX-3220's material handling system addresses this directly:

• 85° hydraulic tilt table: The worktable tilts to near-vertical for slab loading and unloading — the slab slides onto the table rather than being lifted onto it, dramatically reducing the physical risk of slab damage and operator injury during loading

• Suction cup slab mover: Four industrial suction cups with a combined capacity of 360kg handle slab positioning and movement automatically — no manual lifting, no repositioning errors

• Pneumatic pressing rods: Secure the slab firmly against the table surface during cutting, preventing any movement that could cause dimensional error or blade binding

• Pneumatic roller auto-lift: After cutting is complete, pneumatic rollers automatically lift the finished pieces for easy unloading

For a factory processing heavy marble slabs and large-format rock plates daily, this material handling system is not a convenience feature. It is a safety system and a quality system simultaneously.

Full Technical Specifications

3. What the Machine Enables That the Client Could Not Do Before

The installation of the CX-3220 did not just improve the client's existing production. It expanded what they were capable of producing — permanently.

✅ Irregular and Custom Shape Orders: Now Accepted In-House

Arc countertops, elliptical feature panels, custom polygon shapes, profiled edges — all of these are now produced in-house on a single machine, in a single cycle. Jobs that were previously declined or outsourced at margin-eroding rates are now part of the client's standard product offering.

✅ 45° Miter Cuts: Automated and Repeatable

The miter joints that define high-end countertop and feature wall installations — where two stone panels meet at a precise 45° angle with no visible seam — are now produced automatically, with the same dimensional accuracy on every piece. The manual re-setting and trial-pass process is gone.

✅ Material Utilization: Significantly Improved

The industrial camera layout optimization system directly addresses the waste problem. By photographing each slab, marking defects, and automatically optimizing the cutting layout before a single cut is made, the system extracts maximum usable area from every slab. For premium rock plate and marble, this improvement in material yield has a direct and measurable impact on production economics.

✅ Slab Handling: Safer and Faster

The hydraulic tilt table and suction cup system reduced slab loading and positioning time significantly while eliminating the manual handling risks associated with moving 200–300kg stone panels. Fewer handling steps also means fewer opportunities for slab damage during production.

"Before this machine, every unusual shape was a problem. Now it is just another program. We load the slab, import the file, and the machine does the rest."

4. The Service Journey: From Consultation to Shipment

Days 1–3 Needs assessment:

Materials confirmed: sintered rock plate + marble

Cut types required: straight, 45° miter, arc, basin holes, edge grinding

Slab size range confirmed: up to3200×2000mm

Pain points documented: irregular cut difficulty,

precision issues, material waste

Days 4–5 CX-32205+1 Five Axis Bridge Saw recommended

Full specification and capability comparison presented

Industrial camera layout system demonstrated via video

Days 6–7 Contract signed; production begins

Days 8–35 Machine manufactured and assembled

15KW cutting motor and7.5KW drilling spindle installed and tested

Hydraulic tilt table and suction cup system calibrated

Weihong control system configured with client's material parameters

Industrial camera system calibrated and tested

Days 36–40 Pre-shipment QC inspection:

5-axis linkage accuracy test across full working range

45° chamfer cut test on marble — dimensional accuracy verified

Arc profile cut test on sintered rock plate — edge quality confirmed

Basin hole cutting test — position accuracy and edge finish verified

Hydraulic tilt table and suction cup function test

Full cutting demonstration video produced and sent to client

Day 41 Client approves test video

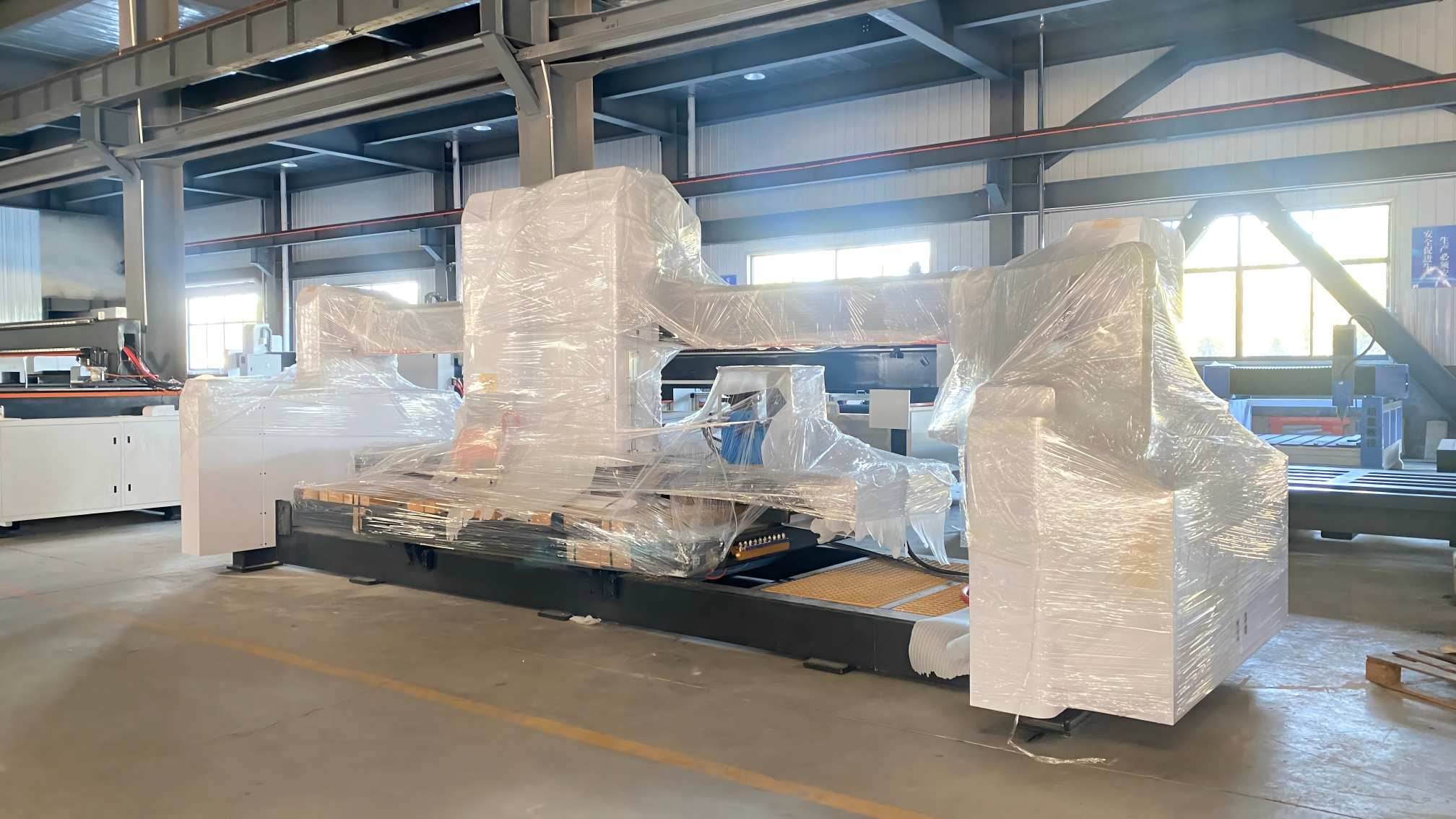

Days 42–44 Export packaging completed:

4,600kg machine on reinforced steel-base export pallet

All axes travel-locked for shipping

Hydraulic system drained andprotected

Full documentation dispatched

Day 45 Machine shipped to Philippines ✓

Shipping confirmation and tracking sent to client immediately

Days 46–60 Ocean freight transit to Philippines

Post-arrival On-site commissioning support:

Machine leveling and axis calibration

Weihong system parameter setup for rock plate and marble

Industrial camera calibration

First production cuts: straight, 45° miter, arc profile

Operator training on layout optimization workflow

5. The Value We Delivered

6. What This Case Means for Stone Factories Like Yours

✅ If you are declining irregular shape orders, you are leaving your most profitable work on the tableCustom arc countertops, profiled edges, elliptical features — these are the jobs that command the highest margins in the stone industry. They are also the jobs that conventional 3-axis bridge saws cannot execute reliably. A five-axis machine does not just improve your existing production — it opens an entirely new category of work.

✅ Material waste on premium stone is a machine problem, not a layout problemManual cutting layout on expensive rock plate and marble is inherently suboptimal. An industrial camera system that photographs the slab, marks defects, and automatically optimizes the cutting path before the first cut is made is the only reliable way to maximize material yield on premium materials.

✅ 45° miter precision is non-negotiable for high-end installationsA 45° miter joint on a stone countertop or feature wall is only invisible if both pieces are cut to exactly the same angle. Manual angle setting on conventional saws cannot achieve this consistency at production pace. Automated 5-axis cutting can — and does, on every piece.

✅ Heavy slab handling is a safety issue and a quality issue simultaneouslyEvery time a 300kg marble slab is manually repositioned, there is a risk of slab damage, dimensional error, and operator injury. A hydraulic tilt table and suction cup handling system eliminates all three risks in a single design decision.

✅ The +1 drilling spindle is not optional for countertop productionBasin holes, faucet cutouts, and edge grinding are part of every countertop job. If these operations require a separate machine or manual process, you are adding handling time, handling risk, and positioning error to every countertop you produce. The integrated 7.5KW drilling spindle completes these operations in the same cycle as the cutting — no slab movement, no repositioning, no additional setup.

Final Thoughts

The Philippine stone market is growing. Demand for premium sintered rock plates and marble in high-end residential and commercial interiors is increasing, and the clients placing those orders expect precision, consistency, and the ability to execute complex designs.

The factories that will capture that demand are the ones with the equipment to deliver it. A five-axis bridge saw is not a luxury upgrade for a stone factory at this stage — it is the production infrastructure that makes premium work possible at scale.

Our client understood that. They invested in the right machine, and the machine delivered exactly what the investment promised: every shape they need, at the precision their materials demand, with the material utilization their margins require.

If your stone factory is ready to move beyond straight cuts and start winning the irregular shape work your market is asking for — let's talk.
