Superstar 3050 Large-Scale CNC Router for Foam & Wood Molds

Product Overview

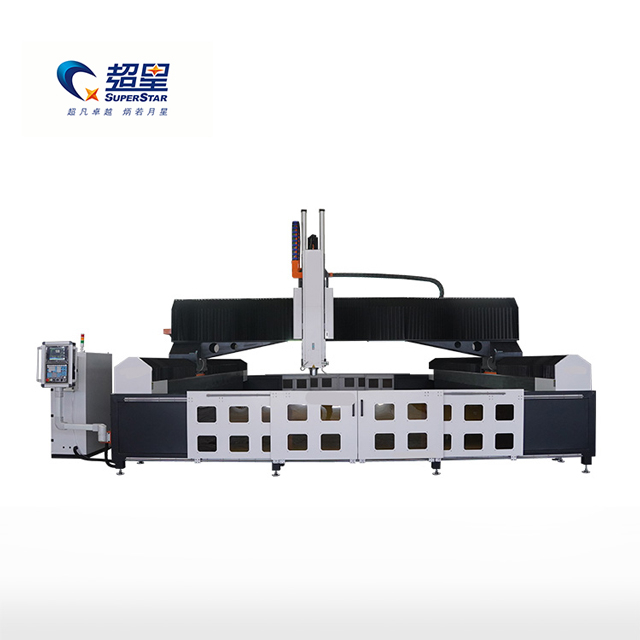

The Superstar 3050 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is a specialized machining center for large-volume fabrication. Standard wood routers are too small for vehicle molds or giant statues. The 3050 bridges this gap, offering a production platform capable of handling blocks of foam, wood, and resin tooling board up to 5 meters long.

It is the industry standard solution for producing "Lost Foam" patterns for engine blocks, large-scale industrial pumps, and architectural props. By milling directly from CAD data, you eliminate the inaccuracies of hand-carving and reduce pattern production time by weeks.

Core Advantages

• Massive Work Envelope: The 3m x 5m table allows for the machining of full-size car bodies or boat hulls in a single setup, eliminating the need to glue smaller sections together.

• Deep Z-Axis Machining: With a standard Z-travel of 1000mm (customizable to 1200mm+), you can use extra-long tooling to reach deep into mold cavities without the gantry colliding with the workpiece.

• Heavy-Duty Structure: The machine weighs over 8 tons. The bed is constructed from oversized steel I-beams and thermally stress-relieved to prevent warping, even when supporting heavy blocks of dense wood or resin.

• High-Speed Finishing: Powered by Yaskawa Servo Motors and a high-performance Syntec Control System, it executes smooth 3D surfacing toolpaths at speeds up to 20m/min, minimizing sanding labor.

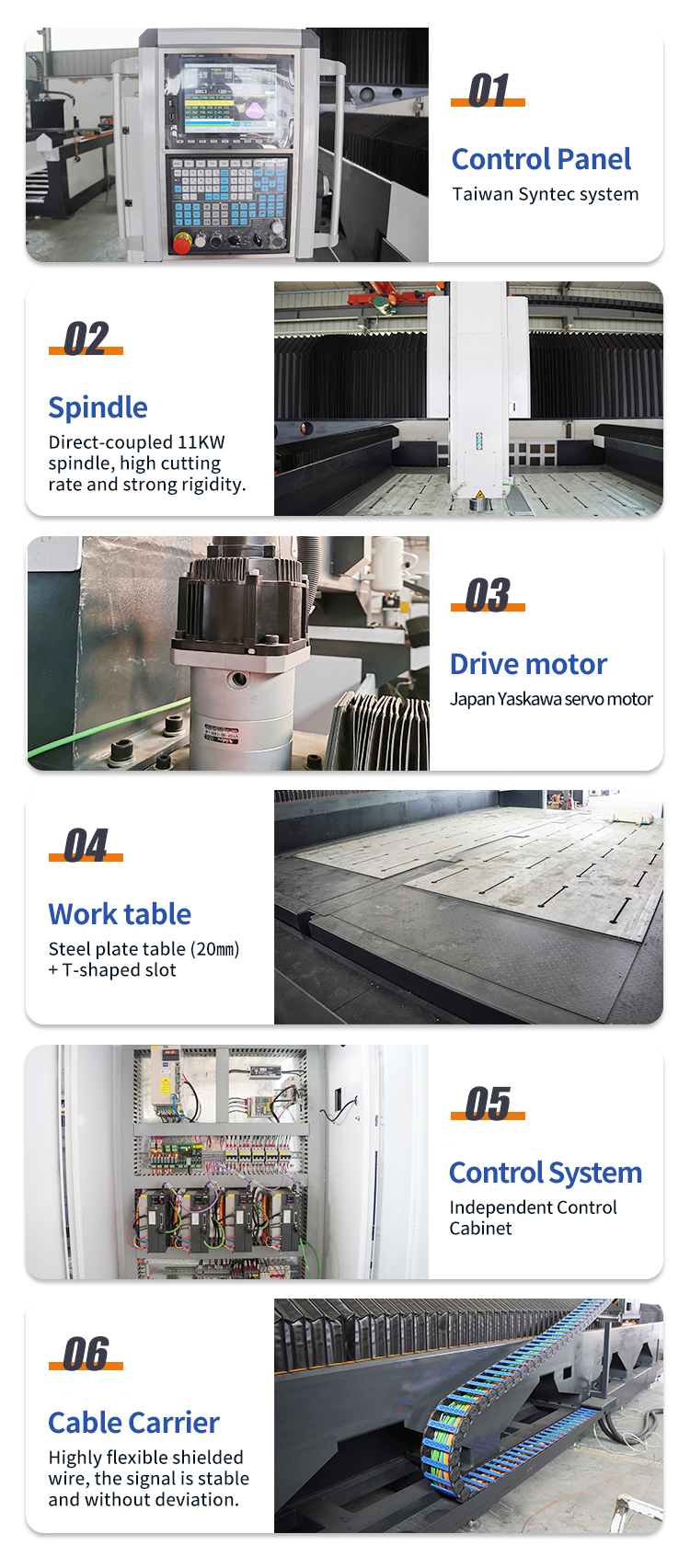

Detailed Configuration & Component Analysis

• Dust-Proof Axis Design:

Machining EPS foam generates static-charged dust that clings to everything. Our Z-axis and guide rails are fully enclosed in accordion bellows to prevent foam particles from entering the ball screws, ensuring smooth motion and reduced maintenance.

• High-Torque Spindle:

We use industrial spindles with large ceramic bearings (ISO30 or BT40 taper optional). These are designed to withstand the side-loads of using long, large-diameter foam cutting tools (e.g., 200mm long ball nose mills).

• Syntec Industrial Controller:

For large mold files (often gigabytes in size), a standard DSP handle is insufficient. The Syntec system has a fast "Look-Ahead" processor that reads thousands of lines of G-code in advance, ensuring the machine doesn't stutter or slow down during complex 3D curves.

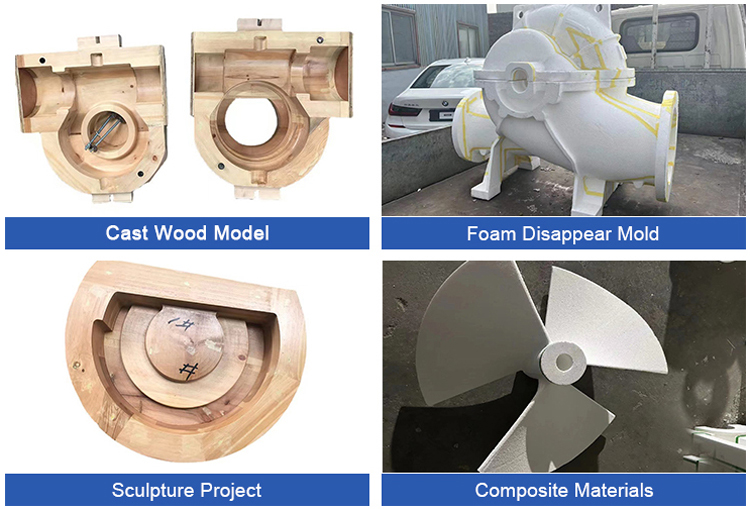

Applicable Industries & Materials

• Foundry Casting: Machining "Lost Foam" (EPS) patterns and wooden patterns for sand casting metal parts (engine blocks, valves, pipes).

• Automotive & Aerospace: Milling full-size clay or foam styling models and carbon fiber layup molds.

• Theme Parks & Props: Carving giant statues, movie set decorations, and architectural columns from Styrofoam.

• Marine: Milling plugs and molds for fiberglass boat hulls and decks.

Why Choose Superstar CNC?

• Custom Engineering: Need a 4th axis rotary for statues? Need 2 meters of Z-travel? As a manufacturer, we build the frame to your specifications.

• Tooling Support: We don't just sell the machine; we can recommend and supply the specialized extra-long foam cutting bits and tapered ball nose end mills you need.

• Turnkey Installation: For machines of this size, we offer on-site installation and training services to ensure your team is producing molds from day one.

Frequently Asked Questions (FAQ)

Q: Can this machine cut aluminum molds?

A: It is primarily designed for soft materials (foam, wood, resin). For aluminum molds, we recommend our heavier "Metal Mold" series which uses a cast iron bed and coolant system, though this machine can do light aluminum finishing.

Q: How do I hold down large foam blocks?

A: The table is a T-slot design. Most users use mechanical clamps or screw the foam block directly to a sacrificial wooden baseboard attached to the table.

Q: What software is compatible?

A: It works with any 3D CAM software capable of outputting G-code, such as PowerMill, Mastercam, UG/NX, or Aspire.

Q: Is the machine shipped fully assembled?

A: Due to its size (3m x 5m), the gantry is typically removed for shipping. It requires assembly on-site, which our team can guide via video or in-person service.

Scale Up Your Manufacturing

Don't be limited by size. Build the biggest molds and models with the Superstar 3050 Large-Format CNC.
