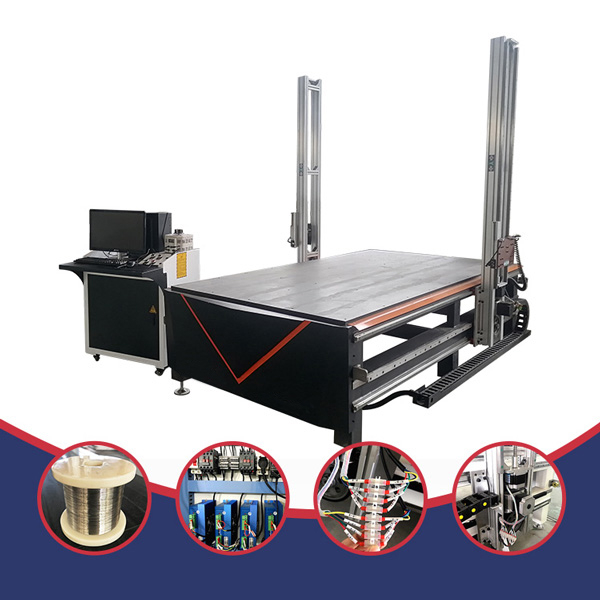

Product Overview
The Superstar CX-1330 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) revolutionizes how polystyrene is shaped. Traditional manual cutting or standard spindle routing generates massive amounts of static foam dust and leaves rough, open-cell edges. This hot wire machine melts the EPS foam upon contact, delivering a flawless, glass-smooth finish while keeping your factory floor completely clean.
Equipped with a thick welded steel bed, this 850KG machine eliminates the vibration commonly found in lightweight kit cutters. Whether you are producing complex 3D architectural pillars or high-volume protective packaging, the CX-1330 provides the stability and continuous cutting capabilities required for rigorous industrial environments.
Core Advantages
Zero-Dust Thermal Cutting: The hot wire vaporizes the foam, meaning there is no mechanical friction, no static dust storms, and no need to sand the finished product.
Precision Ball Screw Transmission: Unlike belt-driven models, this machine uses high-precision ball screws for all axis movements. This guarantees a perfectly smooth travel speed (up to 5000mm/min), ensuring the melted kerf remains entirely uniform.
Massive Volumetric Capacity: The 1300mm x 3000mm x 1300mm (X, Y, Z) working area accommodates standard, oversized industrial EPS blocks, allowing you to cut multiple parts from a single block to maximize material yield.
Flexible Control Options: Available with DSP, NC Studio, or Mach3 control systems. (NC Studio and Mach3 systems include the dedicated computer, providing a turnkey setup).
Technical Parameters
Feature | Specification |
Model | CX-1330 |
Brand | Superstar |
X-Axis Working Area | 1300 mm |
Y-Axis Working Area | 3000 mm |
Z-Axis Working Area | 1300 mm |
Transmission Way | Ball Screw |
Working Speed | 600 mm/min |
Travelling Speed | 5000 mm/min |
Control System | DSP / NC Studio / Mach3 (NC/Mach3 includes computer) |
Machine Bed Structure | Thick Welded Steel |
Machine Weight | 850 KGS |
Detailed Configuration & Component Analysis
The foundation of the machine is a thick welded steel structure. This 850KG frame absorbs any operational harmonics, ensuring that the gantry moves the hot wire with extreme smoothness. This prevents "ribbing" or wave marks on the final foam product.
For clients choosing the Mach3 or NC Studio configuration, we supply the complete industrial computer setup. This allows for independent axis control (crucial for cutting tapered 3D shapes like cones or wings) right out of the box.
The machine maintains constant tension on the cutting wire as it heats and expands, ensuring the wire remains perfectly straight and perpendicular to the material for accurate architectural cuts.
Applicable Industries & Materials
This machine is a highly profitable addition to a wide variety of sectors:
Packaging Industry: Creating custom EPS foam cushions and protective inserts for shipping fragile electronics and appliances.
Architecture & Construction: Cutting decorative exterior insulation (EIFS), foam pillars, window trim, and parapets.
Advertising & Signage: Manufacturing large, lightweight 3D EPS foam letters and logos for trade shows.
Arts & Crafts: Rapid prototyping of theatrical props, theme park decorations, and foam molds.
Why Choose Superstar CNC?
Industrial-Grade Manufacturing: As a direct manufacturer in Jinan, China, we don't build hobbyist equipment. The 850KG weight of this machine is a testament to its heavy-duty, factory-ready construction.
Ready to Run: When you select the Mach3 or NC Studio option, we provide the integrated computer. You don't have to worry about sourcing compatible hardware or dealing with complex software installations.
Global Export Expertise: Having exported high-precision machinery to over 114 countries since 2003, we understand how to configure our machines for your local power grid and provide comprehensive English support.
Frequently Asked Questions
Q: Can this machine cut standard solid wood or MDF?
A: No. The hot wire machine is exclusively designed to melt low-melting-point foams like EPS and EPP. It cannot cut wood, plastic, or metal. (Please view our Wood CNC Router series for those materials).
Q: How do you cut tapered shapes (like a cone) on this machine?
A: Using the Mach3 or NC Studio software, you can control the X and Y axes independently. By moving one side of the wire at a different speed or distance than the other, the machine easily executes 3D tapered and conical cuts.
Q: Is the computer included with the DSP system?
A: No. The DSP control system uses a standalone offline handheld controller, so it does not require a computer to be attached to the machine. However, if you choose the Mach3 or NC Studio system, we will provide the computer together with the machine.
Cut Foam Flawlessly, Every Time
Eliminate dust and maximize your foam production efficiency. Upgrade your workshop with the Superstar CX-1330 CNC Hot Wire 3D Foam Cutting Machine.
Request a Factory-Direct Quote Today
