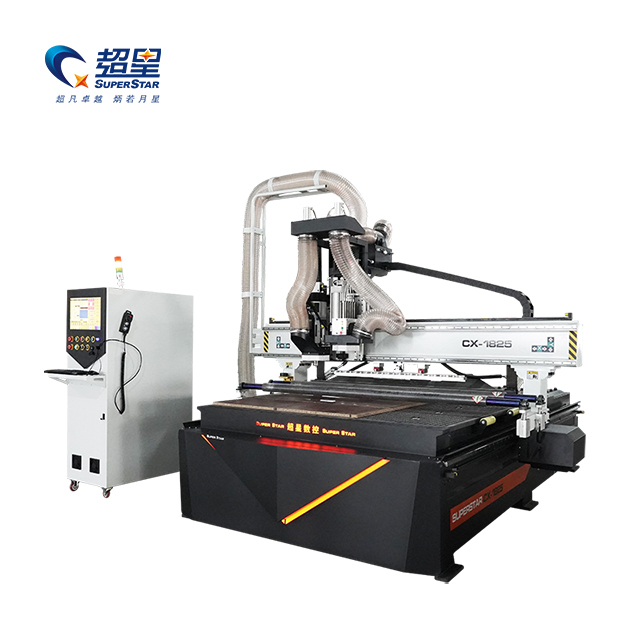

CX-1825 B11 ATC CNC Router Wood Drilling Machine
You are here: Home » Products » Wood CNC Router » ATC CNC Router » Automatic straight tools changing and Saw Blade » CX-1825 B11 ATC CNC Router Wood Drilling Machine
CX-1825 B11 ATC CNC Router With Drilling Unit

loading

CX-1825 B11 ATC CNC Router With Drilling Unit CX-1825 B11 ATC CNC Router With Drilling Unit

loading

CX-1825 B11 ATC CNC Router Wood Drilling Machine

SKU:
Availability:
Inquire
This ATC CNC router with punching is mainly used in the panel furniture industry and panel processing. It adopts a 9kw air-cooled spindle with high processing accuracy. Vacuum suction table structure.

  • CX-1825

  • Superstar CNC

Product Description

Specification:

Model
 CX-1825B11
X Y Z Working Area
 1800mm*2500mm*200mm
Countertop Structure
 Vacuum Adsorption Table
Command Code
 G code
Xyz Axis Structure
 X/Y Rack Rail; Z Screw Rail
Input Power
 11KW
Power
 AC380V / 50Hz
Spindle
 9kw Air Cooling Spindle
Spindle Rotation Speed
 18000rpm / min
Inverter
 11KW Inverter
Drive Motor
 1.5KW Servo Motor
Control System
 Taiwan LNC2200
Vacuum Pump
 7.5kw Variable frequency air pump
Linear Rail
 Y Taiwan30, XZ 25
Weight
 2500KGS
Size
 L3500*W2250*H2300mm
Application:
Furniture industry: panel furniture, cabinet, moving door, soft bag, office furniture, wooden door;
Wooden products: speaker, game cabinet, computer desk, sewing machine table;
Board processing: insulation parts, plastic chemical parts; PCB; bowling track;carbon compounds such as anti betel

board, epoxy resin, ABS, PP, PE, etc;PVC, plastic processing.
