Receiving your first CNC router is an exciting moment. It also marks the beginning of a setup process that, if done correctly, will give you a machine that runs accurately, reliably, and safely from the very first job. If done carelessly, it can lead to alignment problems, electrical issues, software errors, and a frustrating start that takes weeks to resolve.
The good news is that setting up a wood CNC router is a straightforward process when you follow the right sequence of steps. Most problems that new owners encounter — inaccurate cuts, axis errors, vacuum leaks, software communication failures — are not caused by machine defects. They are caused by skipping steps or rushing through the setup process.
This guide walks you through every stage of setting up a new CNC router for the first time, from unpacking and positioning the machine to running your first successful test cut. Whether you have just taken delivery of a 1325 wood CNC router for a cabinet shop or a 6090 CNC router for a sign making studio, the principles in this guide apply to all standard wood CNC router configurations.
Work through each step in sequence. Do not skip ahead. A careful setup takes a few hours and saves days of troubleshooting later.
Step 1: Prepare Your Workshop Before the Machine Arrives
The best time to prepare your workshop for a CNC router is before the machine is delivered — not after it is sitting in the middle of your floor.
1.1. Floor Space and Access
Measure your workshop carefully and confirm that the machine will fit with adequate working space around it. As a general guideline:
Allow at least 600–800mm of clearance on all sides of the machine for operator access, material loading, and maintenance
The front of the machine — where the operator loads and unloads sheets — needs the most clearance, ideally 1,000–1,500mm for comfortable full-sheet handling
Confirm that the machine can be moved from the delivery vehicle into the workshop through your doorways and corridors — check both width and height clearances
For a standard 1325 wood CNC router, the overall machine footprint including the gantry overhang is typically around 2,000×3,200mm. Measure your available space against the actual machine dimensions provided by your supplier before delivery day.
1.2. Floor Condition
A CNC router must sit on a flat, level, and stable floor. Concrete floors are ideal. Timber floors can flex under the machine's weight, which affects leveling stability over time.
Confirm the floor can support the machine's weight — a 1325 CNC router typically weighs 800–1,500kg depending on configuration
If the floor surface is uneven, plan for shimming or leveling pads under the machine feet
Avoid positioning the machine near doorways or loading areas where vibration from passing equipment could affect machining accuracy
1.3. Power Supply
Confirm your power supply before the machine arrives. Most industrial wood CNC routers require:
Three-phase power — typically 380V/50Hz in most markets, though this varies by country
A dedicated circuit with appropriate breaker rating for the machine's total power consumption
Correct cable sizing for the distance from the distribution board to the machine
If you are unsure about your power supply requirements, consult a qualified electrician before delivery. Connecting a machine to an incorrect power supply can damage the control system, spindle drive, and motors — damage that is not covered under warranty.
Confirm the voltage and phase requirements with your supplier when ordering. A reliable manufacturer should configure the machine's electrical system for your local power supply specification. If you purchased your machine from our wood CNC router range, our team will have confirmed the electrical specification during the order process.
1.4. Dust Extraction
Plan the location of your dust extraction system before positioning the machine. The dust extraction hose connection point on the spindle must reach the extraction unit without excessive tension or sharp bends in the hose.
Position the dust extractor close enough to the machine for the hose to reach comfortably at all axis positions
Ensure the extraction unit has adequate capacity for the machine's production volume — undersized extraction leads to dust accumulation in the machine and workshop
Plan the hose routing to avoid trip hazards and interference with the machine's axis movement
1.5. Lighting and Ventilation
Ensure the work area has adequate lighting for the operator to monitor the machine during operation
Provide adequate ventilation, particularly if cutting MDF — the fine dust produced is a health hazard and requires effective extraction and air movement
Step 2: Unpack and Inspect the Machine
2.1. Unpacking Sequence
CNC routers are shipped in wooden crates or on reinforced pallets. Unpack carefully and methodically.
Remove the outer crating carefully — use a pry bar rather than a hammer to avoid vibration damage
Remove all packing materials, foam blocks, and securing straps from the machine
Do not discard packing materials until you have completed the full inspection — if a shipping damage claim is needed, the original packaging may be required
2.2. Inspect for Shipping Damage
Before moving the machine to its final position, inspect it thoroughly for any damage that may have occurred during shipping.
Check the following:
Machine frame — look for cracks, bent sections, or distortion
Guide rails — check for dents, scratches, or deformation along the full length
Gantry — confirm it moves freely along the X-axis by hand (with power off)
Spindle — check for visible damage to the spindle body and collet area
Control cabinet — inspect for dents or damage, and check that the door closes and seals correctly
Cables and cable chain — confirm no cables are pinched, cut, or disconnected
Vacuum pump (if included) — check for damage to the pump body and connections
Accessories box — confirm all accessories, collets, tools, and documentation are present
Document any damage immediately. Photograph all damage and contact your supplier before attempting to power on the machine. Shipping damage claims must typically be filed within a specific timeframe after delivery.
2.3. Check the Accessories and Documentation
Your machine should arrive with:
Collet set (various sizes)
Spanners and tools for collet tightening
USB drive with control software, machine parameters, and documentation
Operator manual
Electrical wiring diagram
Spare parts list
Any additional accessories specified in your order (extra bits, vacuum fittings, etc.)
Confirm all items are present and contact your supplier if anything is missing.
Step 3: Position and Level the Machine
3.1. Moving the Machine into Position
CNC routers are heavy. Use appropriate lifting equipment — a forklift, pallet jack, or machinery skates — to move the machine into its final position. Do not attempt to drag or push a heavy machine across the floor without proper equipment, as this can damage the frame and leveling feet.
Position the machine with the operator side facing the direction that gives the most comfortable access for sheet loading and unloading.

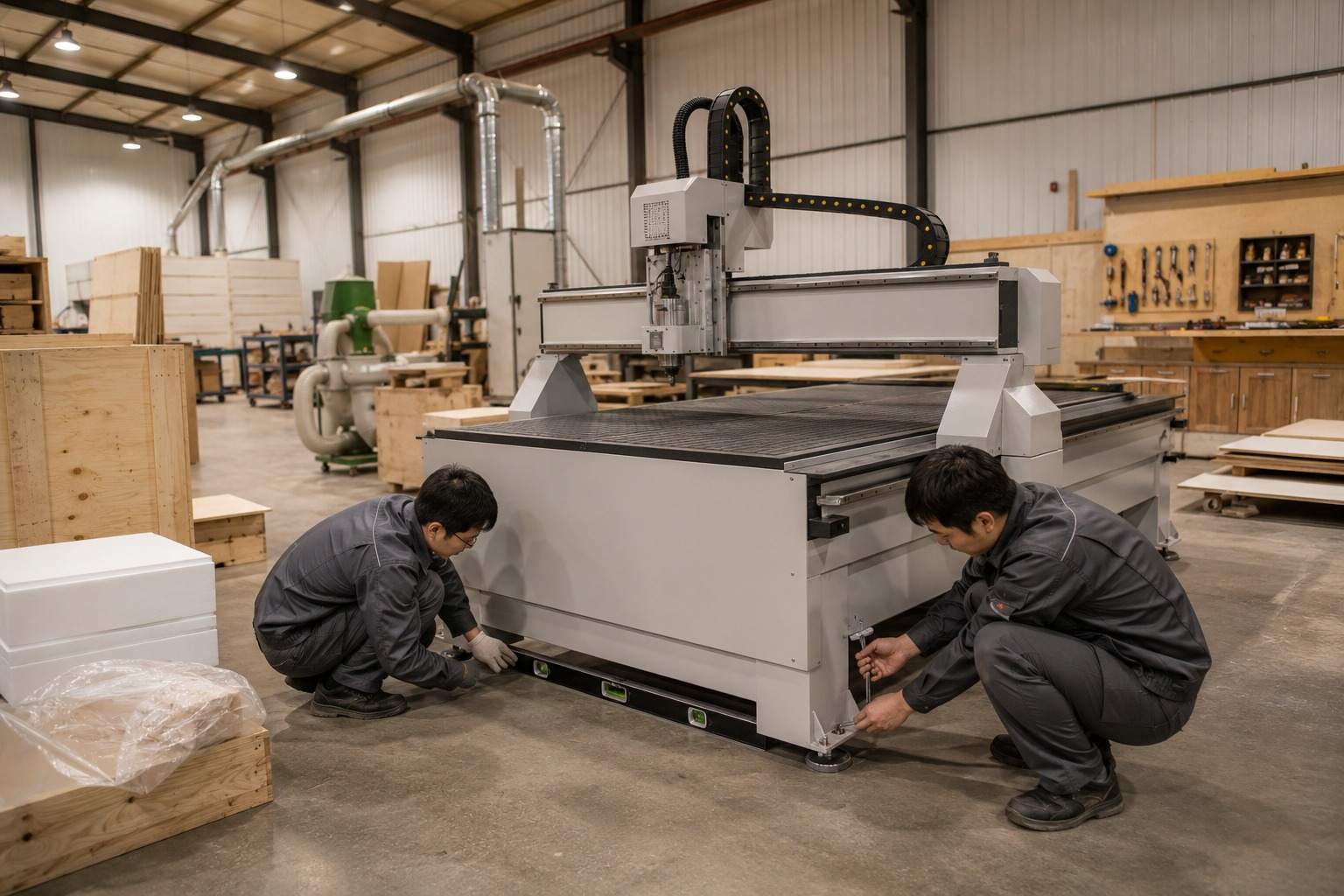

3.2. Leveling the Machine
Leveling is one of the most important steps in the entire setup process. A machine that is not level will produce cuts that vary in depth across the working area, and the gantry may not travel squarely along the table.
Most CNC routers have adjustable leveling feet at each corner and sometimes at intermediate points along the base frame.
Leveling procedure:
Place a precision spirit level or machinist's level on the machine table surface — not on the floor
Check the level in both the X direction (across the width) and the Y direction (along the length)
Adjust the leveling feet to bring the table surface to level in both directions
Work systematically — adjusting one foot affects the others, so make small adjustments and recheck after each change
Once level, tighten the locking nuts on all leveling feet to prevent movement
Recheck the level after tightening — locking can sometimes shift the position slightly
Acceptable tolerance: For most woodworking applications, a level tolerance of 0.1–0.2mm per meter is adequate. For high-precision work, aim for 0.05mm per meter or better.
3.3. Checking Gantry Squareness
After leveling, check that the gantry is square to the table — that is, that the Y-axis (gantry) travels at exactly 90° to the X-axis (table length).
Simple squareness check:
Move the gantry to a known position using the control system
Measure from a fixed reference point on the table to both ends of the gantry beam
Both measurements should be equal — if they differ, the gantry is not square
Gantry squareness adjustment varies by machine design. Consult your machine's manual for the specific adjustment procedure. On most machines, squareness is adjusted by slightly offsetting one side of the dual-drive X-axis.
Step 4: Electrical Connection
Important: All electrical connections must be made by a qualified electrician or following the wiring diagram provided with the machine. Incorrect wiring can damage the machine and create serious safety hazards.
4.1. Main Power Connection
Confirm the incoming power supply matches the machine's specification (voltage, phase, frequency)
Connect the main power supply cable to the machine's input terminal following the wiring diagram
Confirm correct phase rotation for three-phase connections — incorrect phase rotation will cause motors to run in reverse and can damage the spindle drive
Install an appropriately rated isolator switch within reach of the machine for emergency power disconnection
4.2. Grounding
Proper grounding is essential for both safety and machine performance. CNC routers generate electrical noise during operation that can interfere with the control system if grounding is inadequate.
Connect the machine frame to a proper earth ground following the wiring diagram
Confirm that the ground connection is solid and has low resistance
Do not share the machine's ground connection with other high-power equipment
4.3. Vacuum Pump Connection (if separate)
If the vacuum pump is a separate unit, connect it according to the wiring diagram. Confirm the pump motor rotation direction before connecting the vacuum hose — a pump running in reverse will not generate vacuum.
4.4. Initial Power-On Check
Before powering on for the first time:
Confirm all access panels and covers are in place
Confirm no tools or foreign objects are on the machine table
Confirm all axis drives are free to move (no packing materials remaining)
Turn on the main power and observe the control system startup sequence
Check for any error messages or alarm indicators on the control panel
Confirm the emergency stop button functions correctly — press it and confirm the system responds
Step 5: Install and Configure the Control Software
5.1. DSP Offline Controller Setup
If your machine uses a DSP offline controller, the control system is self-contained in the handheld unit. The main setup tasks are:
Confirm machine parameters are loaded:
The machine parameters (axis travel limits, motor settings, home position offsets) should be pre-loaded by the manufacturer before shipping
Connect the controller to the machine and power on — confirm all axes respond correctly to manual jog commands
Check that the axis travel directions are correct — X should move the gantry left/right, Y should move the gantry forward/back, Z should move the spindle up/down
Set the machine home position:
Run the homing sequence to establish the machine's reference position
Confirm the machine homes correctly on all axes without hitting limits or producing errors
Load a test file:
Copy a simple test file (provided by the manufacturer on the USB drive) to the DSP controller
Load the file and confirm it displays correctly before attempting to run it
5.2. PC-Based Controller Setup (Mach3 or Similar)
If your machine uses a PC-based controller such as Mach3, additional setup steps are required.
Install the software:
Install the control software on the dedicated PC following the manufacturer's instructions
Install the motion control interface driver (parallel port or USB motion controller depending on the hardware)
Load machine configuration:
Load the machine configuration file provided by the manufacturer — this sets axis steps per unit, travel limits, home switch configuration, and spindle speed control
Do not modify the machine configuration parameters unless you fully understand what each parameter controls
Test axis movement:
Use the software's manual jog function to move each axis and confirm correct direction and distance
Verify that the axis moves the correct distance for a given command — jog 100mm and measure the actual movement
Configure the spindle:
Set up the spindle speed control in the software
Confirm the spindle starts and stops correctly from the software interface
5.3. Install CAM Software
Install your CAM software (such as Vectric VCarve Pro, Ucancam, or your preferred option) on the design computer. This may be the same PC as the controller or a separate design workstation depending on your workflow.
Configure the CAM software's post-processor to match your machine's control system. The post-processor determines the format of the G-code or machine file that the CAM software outputs. Using the wrong post-processor produces files that the machine cannot read correctly.
Your machine manufacturer should provide the correct post-processor file for your control system. For guidance on choosing the right CAM software for your application, see our guide on best CNC router software for woodworking.
Step 6: Install the Spoilboard
The spoilboard is a sacrificial sheet of MDF that sits on top of the machine table and protects the table surface during through-cutting operations. It must be installed and surfaced flat before any production work begins.
6.1. Fitting the Spoilboard
Cut an MDF sheet to fit the machine's working area — typically 18mm or 25mm thick MDF
For vacuum tables, the spoilboard must have holes or a grid pattern to allow vacuum to pass through to the workpiece surface — your machine supplier should provide guidance on the correct spoilboard specification for your vacuum table design
Secure the spoilboard to the table using the table's T-slots or vacuum zones
6.2. Surfacing the Spoilboard
Even a new, flat MDF sheet will have slight variations in thickness and will not be perfectly parallel to the machine's XY plane. Surfacing the spoilboard removes these variations and creates a perfectly flat reference surface.
Surfacing procedure:
Install a spoilboard surfacing cutter (fly cutter) in the spindle
Set the Z-axis to skim the surface of the spoilboard — typically a 0.5–1.0mm depth of cut
Run a full-area surfacing program that covers the entire working area
After surfacing, the spoilboard surface should be uniformly flat and show consistent machining marks across the full area
A properly surfaced spoilboard ensures consistent cutting depth across the full working area and is the foundation of accurate panel production. For cabinet shops and furniture factories, resurface the spoilboard regularly as part of routine machine maintenance. See our article on CNC router maintenance tips for a full maintenance schedule.
Step 7: Set Up the Vacuum System
If your machine has a vacuum table, setting up the vacuum system correctly is essential for reliable material holding during production.
7.1. Connect the Vacuum Hose
Connect the vacuum pump to the table using the hose and fittings provided
Confirm all hose connections are tight and sealed — air leaks reduce vacuum effectiveness significantly
For multi-zone tables, confirm that the zone isolation valves are accessible and labeled correctly
7.2. Test the Vacuum System
Power on the vacuum pump and confirm it reaches operating vacuum pressure
Place a flat sheet of MDF or plywood on the table and activate the vacuum — the sheet should hold firmly and resist being lifted by hand
Check for air leaks around the hose connections and table surface — a hissing sound indicates a leak that needs to be sealed
7.3. Vacuum Table Zones
For multi-zone vacuum tables, understand which zones cover which areas of the table and how to activate individual zones for smaller workpieces.
Activate only the zones covered by the workpiece — activating zones that are not covered by material allows air to bypass the workpiece and reduces vacuum on the zones that matter
For small remnant pieces, use a rubber sealing strip or additional MDF offcuts to cover unused zones and maintain vacuum pressure
Step 8: Calibrate the Axes
Axis calibration confirms that the machine moves the correct distance for each command. Even if the manufacturer has pre-configured the machine parameters, it is good practice to verify calibration on-site after installation.
8.1. Steps-Per-Unit Calibration
Procedure:
Mark a reference point on the machine table
Command the machine to move a known distance — for example, 500mm in the X direction
Measure the actual distance moved using a steel rule or digital caliper
If the actual distance differs from the commanded distance, adjust the steps-per-unit parameter in the control system
Repeat this process for the Y and Z axes.
Acceptable tolerance: For most woodworking applications, calibration accuracy of ±0.1mm over 500mm is adequate. For precision cabinet work, aim for ±0.05mm.
8.2. Squareness Verification
After calibrating axis distances, verify that the X and Y axes are truly perpendicular to each other.
Simple squareness test:
Command the machine to cut or mark a 300×300mm square on a piece of MDF
Measure both diagonals of the square — they should be equal
If the diagonals differ, the axes are not square — consult your machine manual for the squareness adjustment procedure
8.3. Z-Axis Repeatability
The Z-axis must return to exactly the same position each time it homes. Test Z-axis repeatability by:
Homing the Z-axis
Moving the Z-axis down 50mm and back up to home
Repeat 5 times and measure whether the home position is consistent each time
Inconsistent Z-axis homing causes variable cutting depth between jobs and is usually caused by a worn or dirty home switch.
Step 9: Run Your First Test Cut
With the machine leveled, calibrated, and the vacuum system working, you are ready to run your first test cut. Do not skip this step and go straight to production — a test cut confirms that everything is working correctly before you commit real materials.
9.1. Prepare a Simple Test File
Create or load a simple test file in your CAM software. A good first test cut includes:
A 100×100mm square — tests X and Y axis accuracy and squareness
A 100mm diameter circle — tests circular interpolation and axis coordination
A simple text engraving — tests Z-axis depth control and spindle performance
Use a piece of scrap MDF for the test cut — not a valuable workpiece.
9.2. Set the Work Origin (Zero Point)
Before running the file, set the work origin — the reference point from which all movements in the program are measured.
Procedure:
Position the spindle over the corner or center of the workpiece (depending on how the file was programmed)
Lower the spindle to just touch the material surface
Set this position as X0, Y0, Z0 in the control system
Raise the spindle to a safe height before starting the program
Setting the work origin incorrectly is the most common cause of the machine cutting in the wrong position or cutting into the table. Take your time with this step.
9.3. Run the Test Cut
Confirm the spindle speed is set correctly for the material and bit
Confirm the feed rate in the program is appropriate

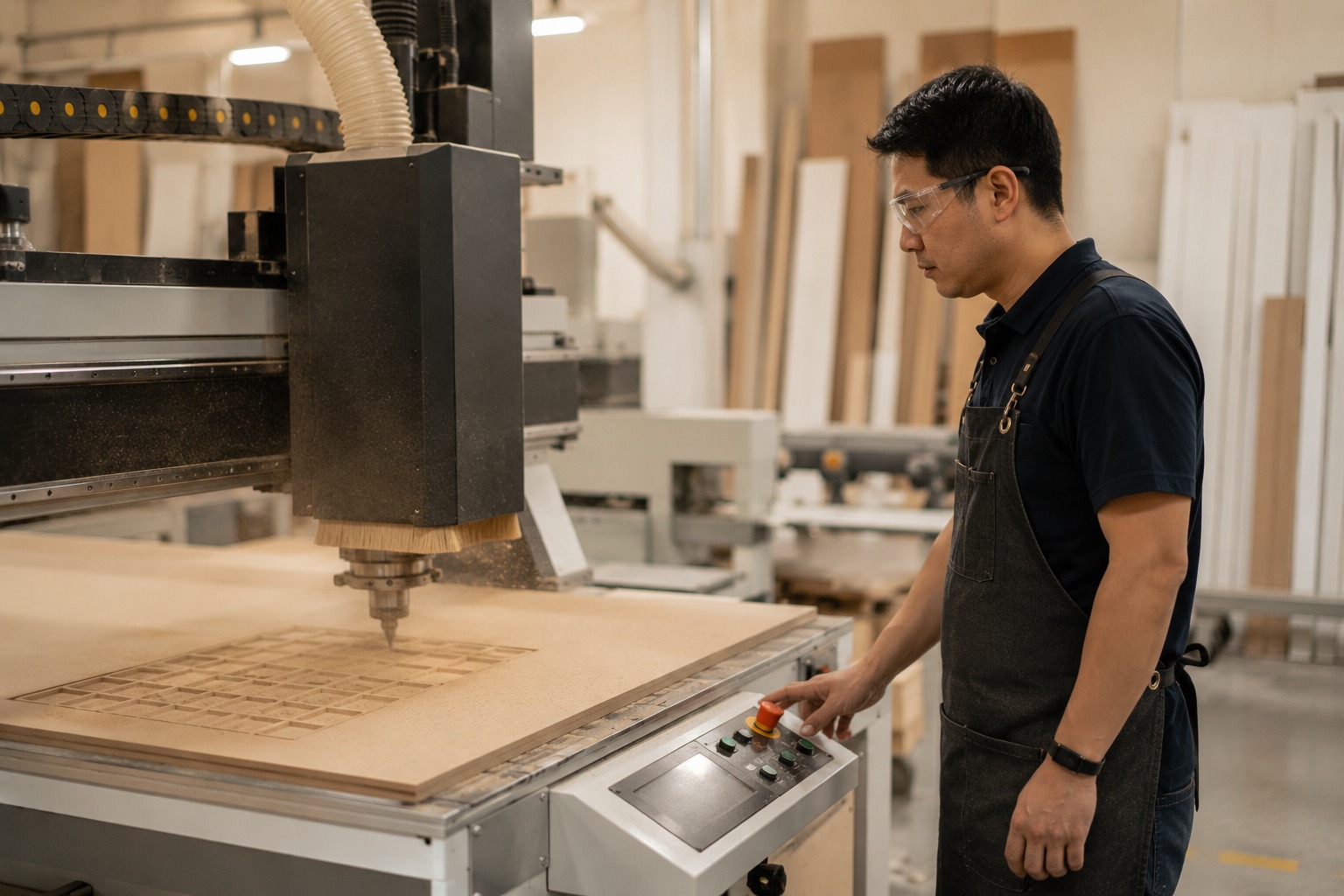

Stand at the control panel with your hand near the emergency stop button
Start the program and observe the first few movements carefully
If anything looks wrong — incorrect movement direction, unexpected sounds, wrong position — press emergency stop immediately
9.4. Measure the Test Cut Results
After the test cut is complete, measure the results:
Square dimensions — Measure both sides of the square. They should be within ±0.1mm of 100mm
Diagonal measurements — Both diagonals should be equal (confirming squareness)
Circle diameter — Measure in multiple directions. Should be within ±0.1mm of 100mm
Cutting depth — Confirm the depth is consistent across the full cut area
Edge quality — Inspect the cut edges for roughness, chipping, or burning
If the test results are within acceptable tolerances and the edge quality is good, your machine is set up correctly and ready for production.
If the results show problems — incorrect dimensions, unequal diagonals, inconsistent depth — work through the calibration steps again before proceeding to production work.
Step 10: Train Your Operators
A well-set-up machine is only as productive as the operators running it. Before starting production, ensure all operators are trained on the essential daily procedures.
10.1. Daily Startup Procedure
Train operators to follow a consistent daily startup sequence:
Inspect the machine for any visible damage or loose components
Check guide rail lubrication and apply if needed
Power on the machine and run the homing sequence
Check the vacuum system pressure
Inspect the current bit for sharpness and damage
Load the first job file and set the work origin
10.2. Work Origin Setting
Setting the work origin correctly is the single most important daily operation skill. Train operators to:
Understand the difference between machine home and work origin
Set the work origin accurately for each new workpiece
Verify the origin position before starting each program
10.3. Emergency Stop Procedure
Every operator must know:
The location of all emergency stop buttons on the machine
When to use the emergency stop — any unexpected movement, sound, or situation that looks wrong
What to do after an emergency stop — do not restart the program without understanding what caused the stop
10.4. Daily Maintenance Tasks
Train operators to perform basic daily maintenance as part of their routine. For a complete maintenance schedule, see our guide on CNC router maintenance tips. Key daily tasks include:
Cleaning dust and debris from guide rails and the machine table after each shift
Checking and applying lubrication to guide rails as needed
Inspecting the vacuum system for leaks
Checking the spindle cooling water level (for water-cooled spindles)
Common First-Time Setup Problems and Solutions
Even with careful setup, new owners sometimes encounter problems during the initial installation. Here are the most common issues and how to resolve them.
Problem: Machine Does Not Home Correctly
Symptoms: The machine moves to the home position but stops in the wrong place, produces an error, or does not stop at all.
Likely causes:
Home switch not triggered correctly — check that the switch is positioned correctly and functioning
Home switch wiring loose or disconnected — check connections in the control cabinet
Machine parameters set incorrectly — confirm the home switch type and direction are set correctly in the control system
Problem: Axis Moves in the Wrong Direction
Symptoms: When jogging X+, the machine moves in the negative direction, or similar reversal on any axis.
Likely causes:
Motor direction parameter set incorrectly in the control system
Motor wiring reversed
Solution: Reverse the direction parameter for the affected axis in the control system settings. Do not reverse the physical wiring unless directed by the manufacturer.
Problem: Cutting Dimensions Are Incorrect
Symptoms: A commanded 100mm move produces 98mm or 103mm of actual movement.
Likely causes:
Steps-per-unit parameter set incorrectly
Mechanical issue such as a loose coupling between motor and drive shaft
Solution: Recalibrate the steps-per-unit parameter for the affected axis. If calibration correction is very large, check for mechanical slippage.
Problem: Vacuum Is Not Holding the Material
Symptoms: Sheets lift or shift during cutting despite the vacuum pump running.
Likely causes:
Air leak in the vacuum hose connections
Spoilboard holes blocked with dust
Unused vacuum zones not covered, allowing air bypass
Solution: Check all hose connections for leaks, clean the spoilboard surface and vacuum holes, cover unused zones, and check the vacuum pump filter.
Problem: Cut Edges Are Rough or Burning
Symptoms: Cut edges show roughness, fuzz, or burn marks.
Likely causes:
Incorrect spindle speed or feed rate for the material
Dull or damaged bit
Incorrect bit type for the material
Solution: Check cutting parameters against recommended values for the material and bit. Inspect the bit and replace if worn. Confirm the correct bit type is being used. For guidance on bit selection, see our guide on CNC router bits for woodworking.
Problem: Control Software Cannot Communicate with the Machine
Symptoms: PC-based controller shows communication error or machine does not respond to software commands.
Likely causes:
Motion control interface driver not installed correctly
USB or parallel port connection issue
Incorrect port selected in the software configuration
Solution: Reinstall the motion control driver, check the physical connection, and confirm the correct port is selected in the software settings. Restart both the PC and the machine control system.
Setup Checklist: Summary
Use this checklist to confirm you have completed every step before starting production.
Workshop Preparation
Floor space and clearance confirmed
Power supply installed and verified by electrician
Dust extraction positioned and connected
Adequate lighting and ventilation in place
Unpacking and Inspection
Machine unpacked and inspected for shipping damage
All accessories and documentation present
Any damage documented and reported to supplier
Positioning and Leveling
Machine positioned with adequate operator clearance
Machine leveled in both X and Y directions
Gantry squareness checked and adjusted if needed
Leveling feet locked
Electrical Connection
Power supply connected by qualified electrician
Phase rotation confirmed correct
Machine grounded correctly
Emergency stop tested and confirmed functional
Software Setup
Control system powered on without errors
Machine parameters loaded and verified
Homing sequence runs correctly on all axes
CAM software installed and post-processor configured
Spoilboard and Vacuum
Spoilboard installed and surfaced flat
Vacuum system connected and tested
Material hold confirmed on vacuum table
Calibration
X, Y, Z axis distances calibrated
Axis squareness verified
Z-axis repeatability confirmed
First Test Cut
Test file prepared and loaded
Work origin set correctly
Test cut completed on scrap material
Test cut dimensions measured and within tolerance
Edge quality inspected and acceptable
Operator Training
Daily startup procedure trained
Work origin setting procedure trained
Emergency stop procedure trained
Daily maintenance tasks trained
Conclusion
Setting up a CNC router for the first time is a process that rewards patience and attention to detail. Each step in this guide builds on the previous one — a machine that is properly leveled, correctly wired, accurately calibrated, and running on a flat spoilboard will produce accurate, consistent results from the very first production job.
The most common setup mistakes — rushing through leveling, skipping calibration, not surfacing the spoilboard, setting the work origin incorrectly — are all avoidable with a methodical approach. Take the time to do each step correctly, run the test cut before committing to production materials, and train your operators on the daily procedures that keep the machine running reliably.
If you encounter problems during setup that you cannot resolve, contact your machine supplier for remote technical support. A reliable manufacturer should be able to guide you through any setup issue via video call or messaging. If you purchased your machine from our wood CNC router range, our technical support team is available to assist you through every stage of installation and initial setup.
Once your machine is running correctly, the next step is building the production workflow that gets the most from your investment — the right tooling, the right software settings, and a consistent daily maintenance routine that keeps your machine accurate and reliable for years to come.
Frequently Asked Questions
How long does it take to set up a CNC router for the first time?
For a standard 1325 wood CNC router with a DSP controller, allow a full day for the complete setup process — positioning, leveling, electrical connection, software configuration, spoilboard installation and surfacing, vacuum system setup, calibration, and test cut. Rushing the process to save time typically creates problems that take longer to resolve than the time saved.
Do I need an electrician to connect my CNC router?
Yes. The main power connection for an industrial CNC router should be made by a qualified electrician. Incorrect wiring can damage the machine and create serious safety hazards. Confirm the machine's power requirements with your supplier before installation.
What is a spoilboard and why do I need to surface it?
A spoilboard is a sacrificial MDF sheet that sits on the machine table and protects the table surface during through-cutting operations. Surfacing the spoilboard creates a perfectly flat reference surface that ensures consistent cutting depth across the full working area. It is one of the most important setup steps for accurate panel production.
How do I set the work origin on a CNC router?
The work origin (also called the work zero or datum point) is the reference point from which all movements in the cutting program are measured. To set it, position the spindle over the reference point on the workpiece (typically a corner or the center), lower the spindle to just touch the material surface, and set this position as X0, Y0, Z0 in the control system. Setting the work origin incorrectly is the most common cause of the machine cutting in the wrong position.
What should I do if my test cut dimensions are wrong?
If the test cut dimensions are incorrect, recalibrate the steps-per-unit parameter for the affected axis. If the square diagonals are unequal, the axes are not square — adjust the gantry squareness. If cutting depth is inconsistent, recheck the spoilboard surface flatness and Z-axis calibration.
Can I get remote support from the manufacturer during setup?
Yes — a reliable CNC router manufacturer should provide remote technical support via video call, email, or messaging during the installation and setup process. When purchasing from our wood CNC router range, our technical team supports buyers through every stage of installation and initial production startup.
Just ordered your first CNC router and have setup questions?
Our technical support team is available to guide you through installation, software configuration, and your first test cut via video call or messaging. Contact us today.
