ATC CNC Router: The Complete Guide to Automatic Tool Changing for Woodworking

Introduction

Panel furniture manufacturing has evolved dramatically over the past two decades. What once required separate machines for drilling, routing, grooving, and cutting now happens on integrated CNC machining centers. At the heart of this transformation is the ATC CNC router—automatic tool changing technology that enables a single machine to perform multiple operations without manual intervention.

SUPERSTAR CNC, established in 2003, has manufactured over 10,000 CNC machines serving clients across 114 countries. Our ATC CNC routers power furniture factories from Southeast Asia to Europe, delivering the precision, speed, and versatility that modern production demands.

This guide explains everything you need to know about automatic tool changer technology and how to select the right machine for your woodworking operations.

What is an ATC CNC Router?

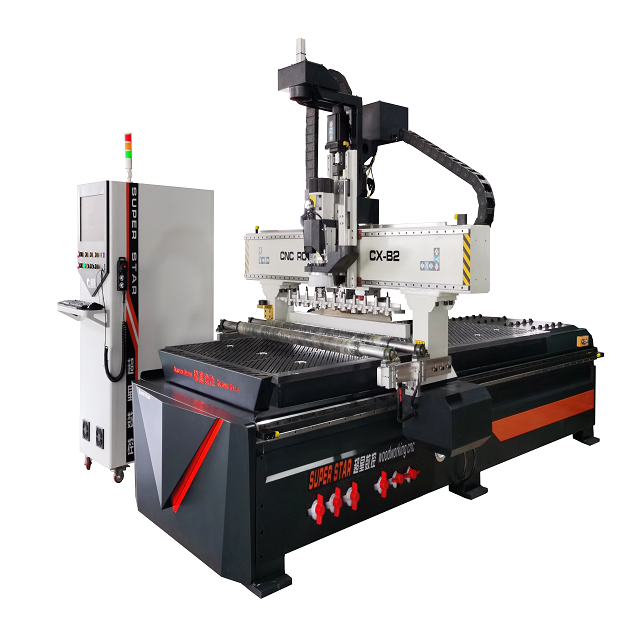

An ATC CNC router (Automatic Tool Changer router) is a computer-controlled machining center capable of automatically swapping between different cutting tools during a single operation. Unlike standard CNC routers requiring manual tool changes, ATC machines maintain continuous production while switching between drills, end mills, V-bits, and other tooling as programmed.

The automatic tool changer consists of a rotary carousel that holds multiple tools, a mechanical arm that extracts and inserts tools from the spindle, and intelligent software that coordinates tool selection with operation sequences.

Key Components of ATC CNC Router Systems

• Spindle Assembly: High-speed spindle with quick-release tool mount

• Tool Carousel: Rotary magazine holding 8-21 tools depending on configuration

• Tool Change Mechanism: Servo-driven arm for automatic tool exchange

• Tool Calibration System: Touch probe for automatic length offset measurement

• Control System: CNC controller managing tool sequences and operation logic

• Dust Collection System: Industrial-grade extraction maintaining clean work environment

Why Panel Furniture Manufacturers Choose ATC Technology

Eliminating Production Bottlenecks

Traditional workflows route workpieces between multiple machines—a gang rip saw for cutting strips, a boring machine for holes, a shaper for edge profiles, and a drill press for dowel holes. Each transfer creates handling time, alignment errors, and quality inconsistencies.

A single ATC CNC router performs all these operations in one clamping. Workpieces move from loading to finished parts without repositioning, dramatically reducing cycle times and labor requirements.

Precision and Consistency

Manual tool changes introduce variability. An operator might install a drill slightly off-center, resulting in hole position errors. Temperature changes affect cutting depths differently for various tools. ATC systems eliminate these variables through automated, repeatable tool changes with sub-millimeter precision.

Flexibility for Custom Orders

Modern furniture manufacturing increasingly involves customized dimensions, special edge profiles, and unique hole patterns. ATC CNC routers handle these variations effortlessly—simply modify the program, and the machine switches tools automatically to execute the new specification.

Technical Specifications and Capabilities

Spindle Power and Speed

SUPERSTAR CNC ATC routers feature premium spindles ranging from 7.5kW to 12kW power ratings. Speed options from 6,000 RPM to 24,000 RPM accommodate materials from hardwoods to engineered panels:

Working Area and Table Configuration

Panel furniture typically involves sheet sizes from 1220x2440mm to 2100x5600mm. SUPERSTAR CNC offers multiple bed sizes to match production requirements:

• Compact: 1300x2500mm for small workshops and sample production

• Standard: 1500x3000mm for typical panel furniture operations

• Large Format: 2000x4000mm for doors and architectural panels

• Extra Large: Custom sizes for specialized applications

Tool Carousel Capacity

The number of tools your machine can hold determines operation complexity without tool changes:

• 8-Tool Carousel: Suitable for basic operations—cutting, drilling, routing

• 12-Tool Carousel: Handles most furniture operations including V-carving

• 16-Tool Carousel: Complex operations including engraving and specialized profiling

• 21-Tool Carousel: Maximum flexibility for complex custom work

Applications in Panel Furniture Manufacturing

Cabinet Door Production

Cabinet doors require drilling for hinges, routing for door profiles, cutting to size, and sometimes V-carving for decorative details. An ATC CNC router performs all operations sequentially:

1. Rough cut to oversize

2. Profile all four edges

3. Drill hinge holes

4. V-carve decorative patterns

5. Finish cut to final dimension

The result: a complete door in one machine cycle with perfect alignment between all features.

Drawer Box Construction

Drawer manufacturing involves cutting sides, fronts, and backs; drilling pilot holes for connectors; and routing grooves for bottoms and dividers. ATC technology enables complete drawer production including:

• Panel cutting from sheet stock

• Groove routing for bottom panels

• Drilling for side-to-front connectors

• Through-hole drilling for handles

Edge Banding Preparation

While edge banding itself requires separate equipment, ATC routers prepare panels by routing chamfers and profiles that accommodate edge banding materials and create clean, finished appearances.

Furniture Components

Beyond panels, ATC routers produce custom furniture components including:

• Table legs and aprons

• Chair back posts and rails

• Curved moldings

• Three-dimensional carvings

• Engraved nameplates and decorative elements

SUPERSTAR CNC Advantages for Panel Furniture

Manufacturing Excellence

Our 86,000 square meter production facility in Jinan, China, combines advanced CNC machining, precision welding, and professional assembly. Every SUPERSTAR CNC machine undergoes rigorous testing before shipment, ensuring reliability from first power-on.

Global Service Network

With 12 overseas warehouses and service centers across Southeast Asia, the Middle East, Europe, and Americas, SUPERSTAR CNC provides rapid response support. Our multilingual technical team addresses questions in your language, reducing communication barriers that complicate international purchases.

Certified Quality

All SUPERSTAR CNC machines carry CE, ISO9001, and SGS certifications. These approvals confirm compliance with European safety standards, quality management systems, and third-party verification—essential for import clearance and customer acceptance.

Component Sourcing

We source premium components to ensure machine longevity:

• Spindles: Italian HSD or domestic premium brands

• Servo Motors: Panasonic, Yaskawa, or Delta systems

• Linear Guides: Hiwin, THK, or PMI rails

• Ball Screws: TBI or PMI precision screws

• Control Systems: Syntec, RichAuto, or Mach3 options

ROI Analysis for ATC CNC Router Investment

Understanding the financial impact helps justify your equipment purchase.

Production Efficiency Gains

Consider a cabinet factory producing 200 units monthly:

Payback Calculation

A mid-sized ATC CNC router typically costs $35,000-$55,000 depending on configuration. Monthly savings from reduced labor, increased output, and decreased waste often exceed $8,000-$15,000. Simple payback periods fall between 3-6 months for most operations.

Installation and Training

Site Preparation

Successful installation requires:

• Floor leveling: Concrete subfloor within 3mm across machine footprint

• Power supply: 380V three-phase, typically 30-50A depending on spindle size

• Compressed air: 6-8 bar supply for tool clamping

• Dust extraction: 2000-3000 m³/hr capacity rated for woodworking

• Environmental control: Temperature 5-40°C, humidity below 90%

SUPERSTAR CNC provides detailed installation guides and can arrange site surveys for larger installations.

Operator Training

All machine purchases include comprehensive training covering:

• Basic machine operation and daily procedures

• Program creation using standard CAD/CAM software

• Tool setup and calibration procedures

• Preventive maintenance schedules

• Troubleshooting common issues

Most operators achieve basic proficiency within 5-7 days of training.

Frequently Asked Questions

What is the difference between ATC and non-ATC CNC routers?

Non-ATC routers require manual tool changes—stopping production to exchange bits. ATC routers automatically swap tools from the carousel, maintaining continuous operation. For production involving more than two different operations, ATC provides significant efficiency advantages.

How long does tool changing take?

SUPERSTAR CNC automatic tool changers complete tool swaps in 3-8 seconds depending on carousel distance and tool weight. This automation occurs during program execution, so actual cycle time impact depends on how frequently tool changes occur in your specific programs.

What maintenance does the ATC mechanism require?

The tool change system requires periodic lubrication of the carousel bearings, inspection of the tool gripper mechanism, and regular cleaning of tool holders.SUPERSTAR CNC provides maintenance schedules and spare parts packages.

Can ATC routers handle nested-based manufacturing?

Yes. Modern ATC CNC routers excel at nested-based production where multiple parts cut from single sheets. The machine handles blank cutting, detail work, and finishing operations automatically as programmed.

Do you offer remote diagnostics and support?

SUPERSTAR CNC provides remote monitoring and diagnostic capabilities for connected machines. Our technical team can troubleshoot issues, optimize parameters, and provide guidance without requiring on-site visits.

What software works with SUPERSTAR CNC machines?

Our machines support standard CNC formats including G-code, M-code, and commonly used CAD/CAM outputs. Popular software packages including V carve, ArtCAM, Type3, and Aspire integrate seamlessly.

Conclusion

ATC CNC routers represent the standard for modern panel furniture manufacturing. The automatic tool changing capability eliminates production bottlenecks, enables complex operations, and delivers the consistency that customers demand.

SUPERSTAR CNC combines 20+ years of manufacturing experience, global service infrastructure, and proven reliability to support your investment. Our team helps you select the right configuration, configure your machine, and achieve production targets from day one.

Explore our complete range of ATC CNC routers and contact our sales team to discuss your specific requirements.
