When it comes to choosing a wood CNC router, one of the most significant decisions you will face is whether to invest in a 3-axis CNC router or a 4-axis CNC router. Both types of machines have their unique features and advantages, making them suitable for different applications and production needs.
In simple terms, a 3-axis CNC router is typically used for standard cutting, engraving, and shaping of flat materials, while a 4-axis CNC router adds an additional rotational axis, allowing for more complex shapes and intricate designs on cylindrical or irregular workpieces.
In this article, we will explore the key differences between 3-axis and 4-axis wood CNC routers, their applications, advantages, disadvantages, and which option is best suited for your specific woodworking projects.
A 3-axis CNC router operates on three linear axes: X, Y, and Z. This means it can move left and right (X-axis), forward and backward (Y-axis), and up and down (Z-axis).
Applications of 3-Axis CNC Routers
3-axis CNC routers are commonly used for:
Cutting flat sheets of wood, MDF, and plywood
Engraving and carving designs on flat surfaces
Producing furniture components and cabinetry
Creating signs and decorative items
Sample making and prototyping
Advantages of 3-Axis CNC Routers
Simplicity: Easier to operate and program, making it suitable for beginners.
Cost-Effective: Generally lower initial investment compared to 4-axis machines.
Versatility: Ideal for a wide range of woodworking applications, especially flat materials.
Space-Saving: Requires less workshop space than larger machines.
Limitations of 3-Axis CNC Routers
Limited Complexity: Cannot process cylindrical or irregularly shaped workpieces effectively.
Less Detail: May struggle with intricate designs that require multi-angle cutting.
If your primary work involves flat materials and standard cutting, a 3-axis wood CNC router can be a practical choice.
What Is a 4-Axis CNC Router?
A 4-axis CNC router operates on the same three linear axes as a 3-axis router but adds a fourth rotational axis (A-axis). This allows the machine to rotate the workpiece, enabling it to cut and engrave complex shapes and designs on cylindrical surfaces.
Carving and engraving on round or irregularly shaped objects
Producing intricate details on furniture legs, columns, and balusters
Creating custom molds and prototypes
Engraving designs on cylindrical surfaces, such as pipes and tubes
Advanced sign making with 3D lettering
Advantages of 4-Axis CNC Routers
Increased Complexity: Capable of producing more intricate designs and shapes.
Versatility: Ideal for both flat and cylindrical workpieces, expanding your production capabilities.
Higher Detail: Can engrave and carve complex patterns that are not possible with 3-axis machines.
Limitations of 4-Axis CNC Routers
Higher Cost: Typically more expensive than 3-axis routers due to the additional technology.
Complex Operation: Requires more advanced programming and operation skills.
If your business involves creating detailed designs on cylindrical parts or custom shapes, a4-axis wood CNC router may be the better investment.

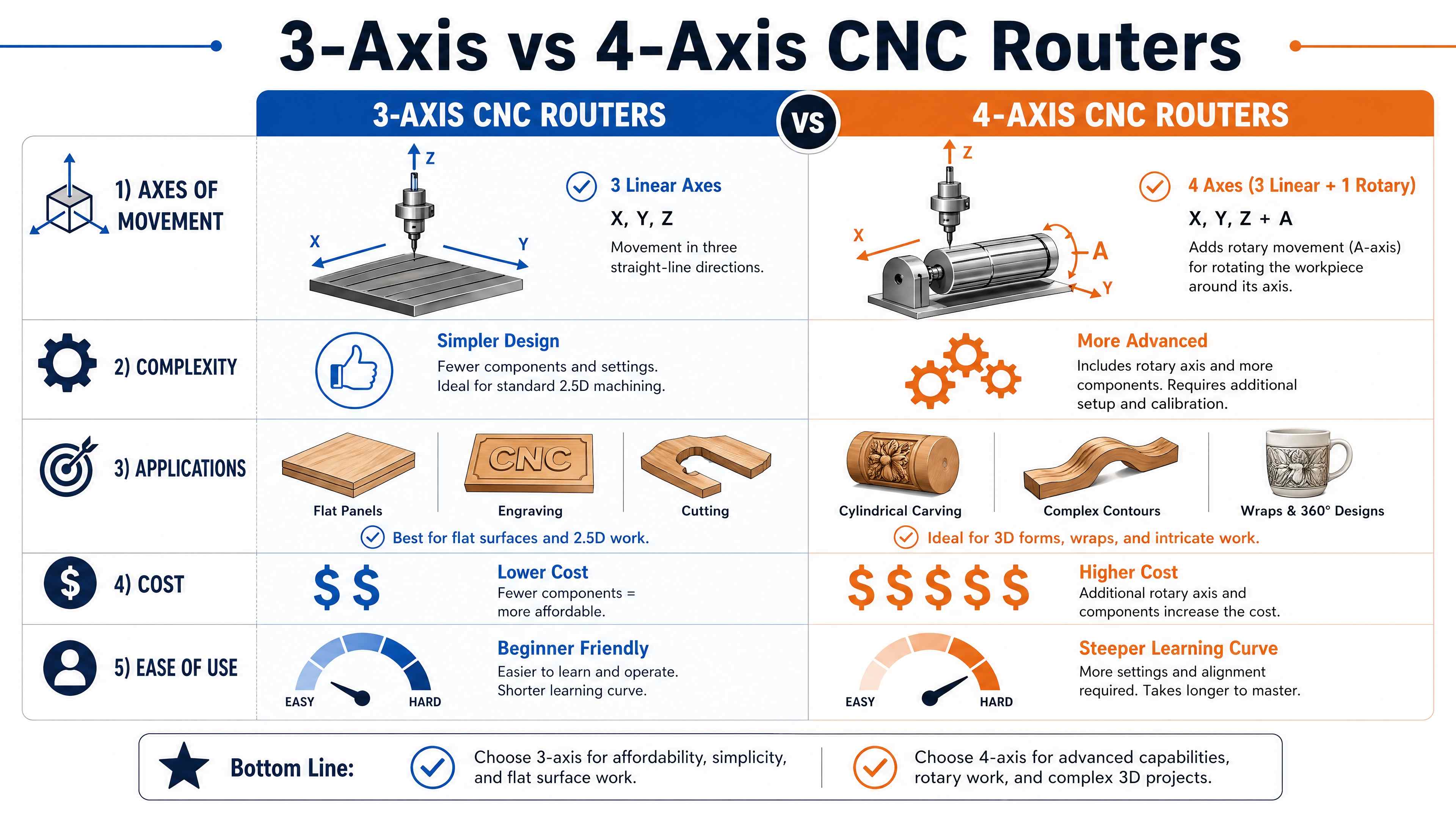

Key Differences Between 3-Axis and 4-Axis CNC Routers
Feature
3-Axis CNC Router
4-Axis CNC Router
Axes of Movement
X, Y, Z
X, Y, Z, A (rotational)
Complexity
Simpler designs
More complex shapes and designs
Applications
Flat materials, basic engraving
Cylindrical objects, intricate carvings
Cost
Generally lower
Typically higher
Ease of Use
Easier for beginners
Requires more advanced skills
Understanding these differences can help you make an informed decision based on your specific needs.
Which One Is Better for Your Applications?
Choose a 3-Axis CNC Router If:
You primarily work with flat materials such as MDF, plywood, or solid wood.
Your projects involve basic cutting, engraving, and shaping.
You are a beginner or operate a small workshop with limited budget and space.
Your production focuses on standard furniture components and simple designs.
Choose a 4-Axis CNC Router If:
You need to produce complex shapes and intricate designs.
Your work includes cylindrical parts, such as furniture legs or decorative columns.
You require higher detail in your engraving and carving work.
You have the budget and space for a more advanced machine.
If your business involves both flat and cylindrical work, a customized CNC router solution may be worth considering to meet all your production needs.
Cost Considerations: Which Is More Economical?
3-Axis CNC Router Cost
Generally lower initial investment
Fewer components and simpler technology
More affordable maintenance and operation costs
4-Axis CNC Router Cost
Higher initial investment due to advanced technology
More complex components and systems
Potentially higher maintenance costs
While the initial cost of a 3-axis router may be more attractive, businesses should consider long-term value and production needs when making a decision. A 4-axis router may provide greater returns on investment for companies that require advanced capabilities.

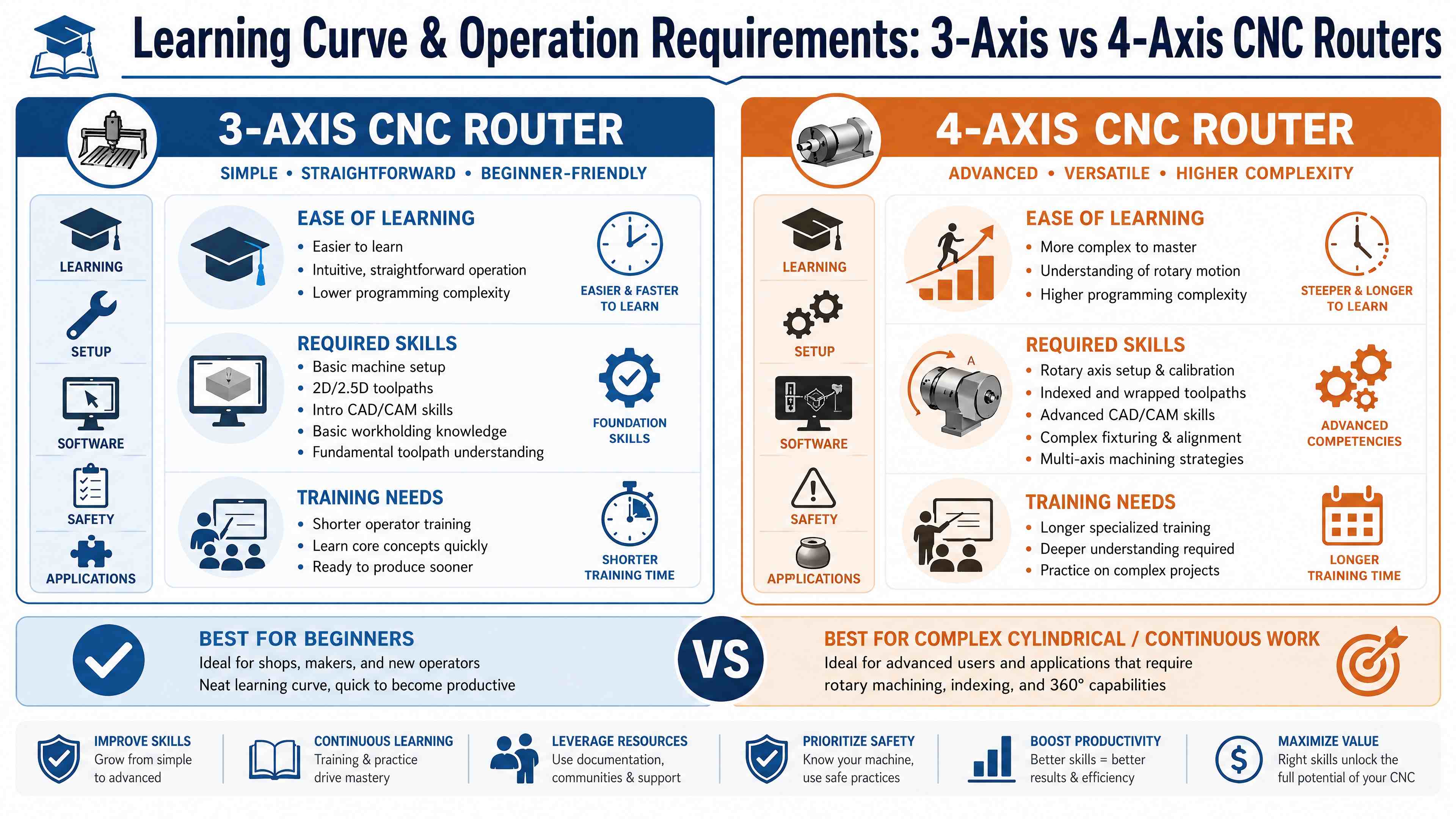

Learning Curve and Operation
3-Axis CNC Router
Easier to learn and operate
Suitable for beginners and those new to CNC technology
Basic programming and operation skills are usually sufficient
4-Axis CNC Router
More complex to operate and program
Requires additional training and experience
Better suited for users with a solid understanding of CNC processes
If your team is inexperienced with CNC technology, starting with a 3-axis wood CNC router can provide valuable experience before moving on to more complex machinery.
Space Requirements and Installation
3-Axis CNC Router
Smaller footprint, easier to fit into limited workshop spaces
Ideal for small shops, educational institutions, and hobbyists
4-Axis CNC Router
Requires more installation space due to additional components
Better suited for larger industrial workshops
Consider your workshop layout and available space when choosing between the two options. A4-axis wood CNC router may not be practical for very small shops.
Conclusion
So, which CNC router should you choose: a 3-axis or a 4-axis?
If your business focuses primarily on flat materials, basic cutting, and engraving, a 3-axis CNC router is often the better choice due to its simplicity, lower cost, and ease of use.
If your work involves complex shapes, cylindrical parts, and higher detail, a 4-axis CNC router may be the better investment, allowing you to expand your capabilities and take on more intricate projects.
Ultimately, the best choice depends on your specific applications, production needs, budget, and workshop conditions.
