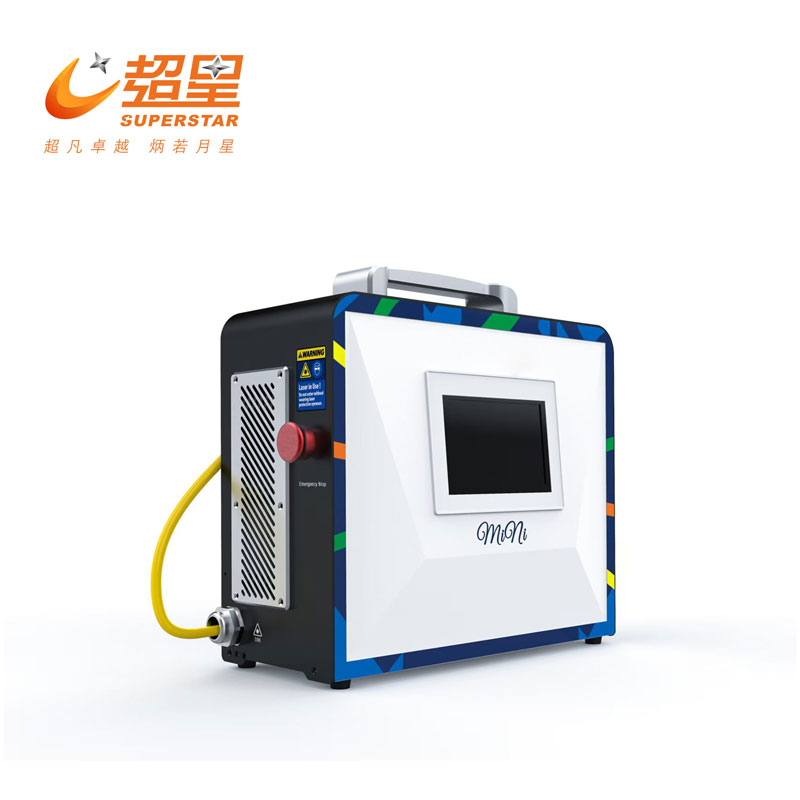

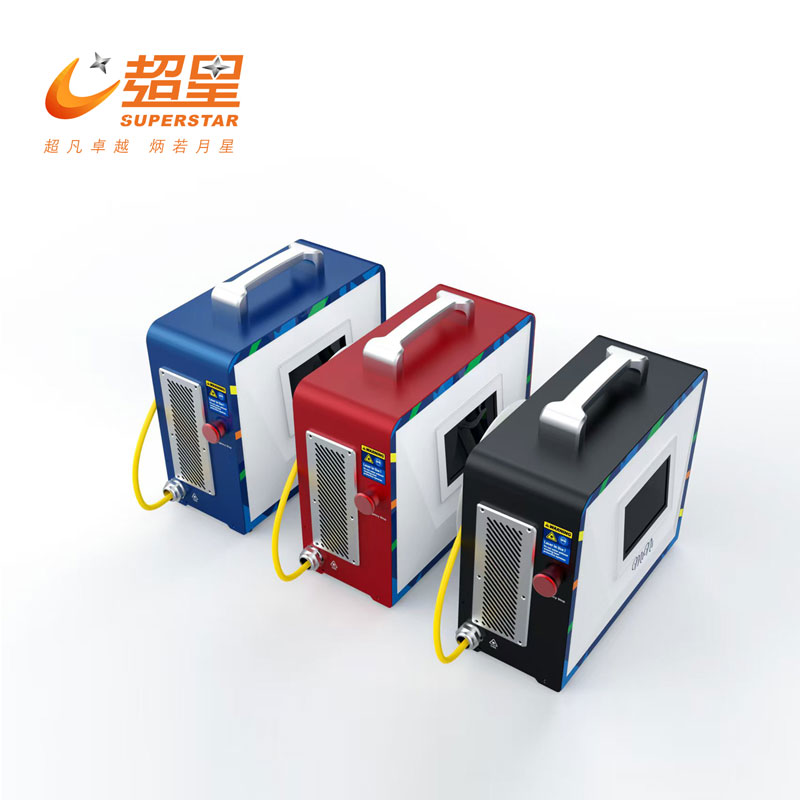

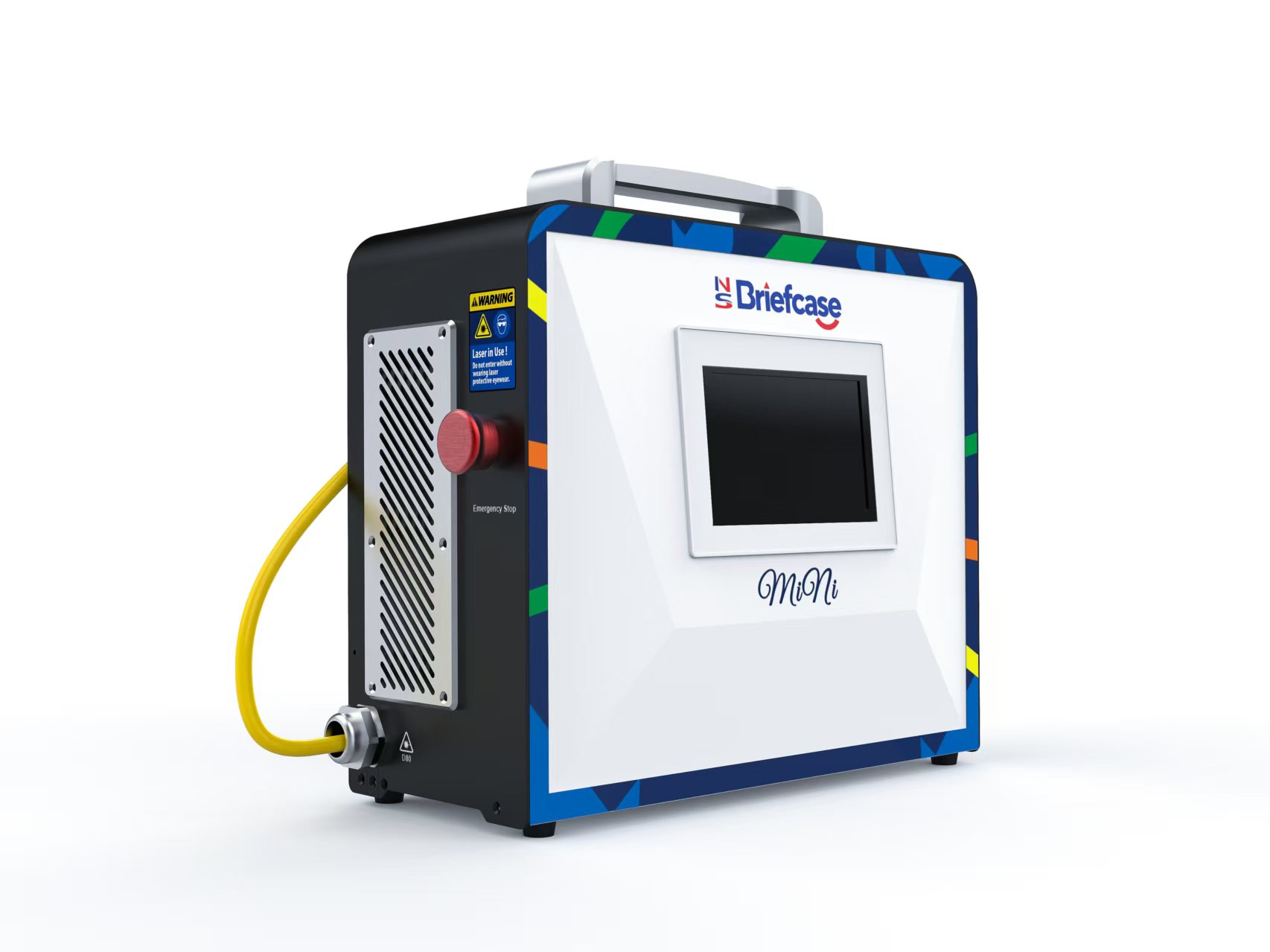

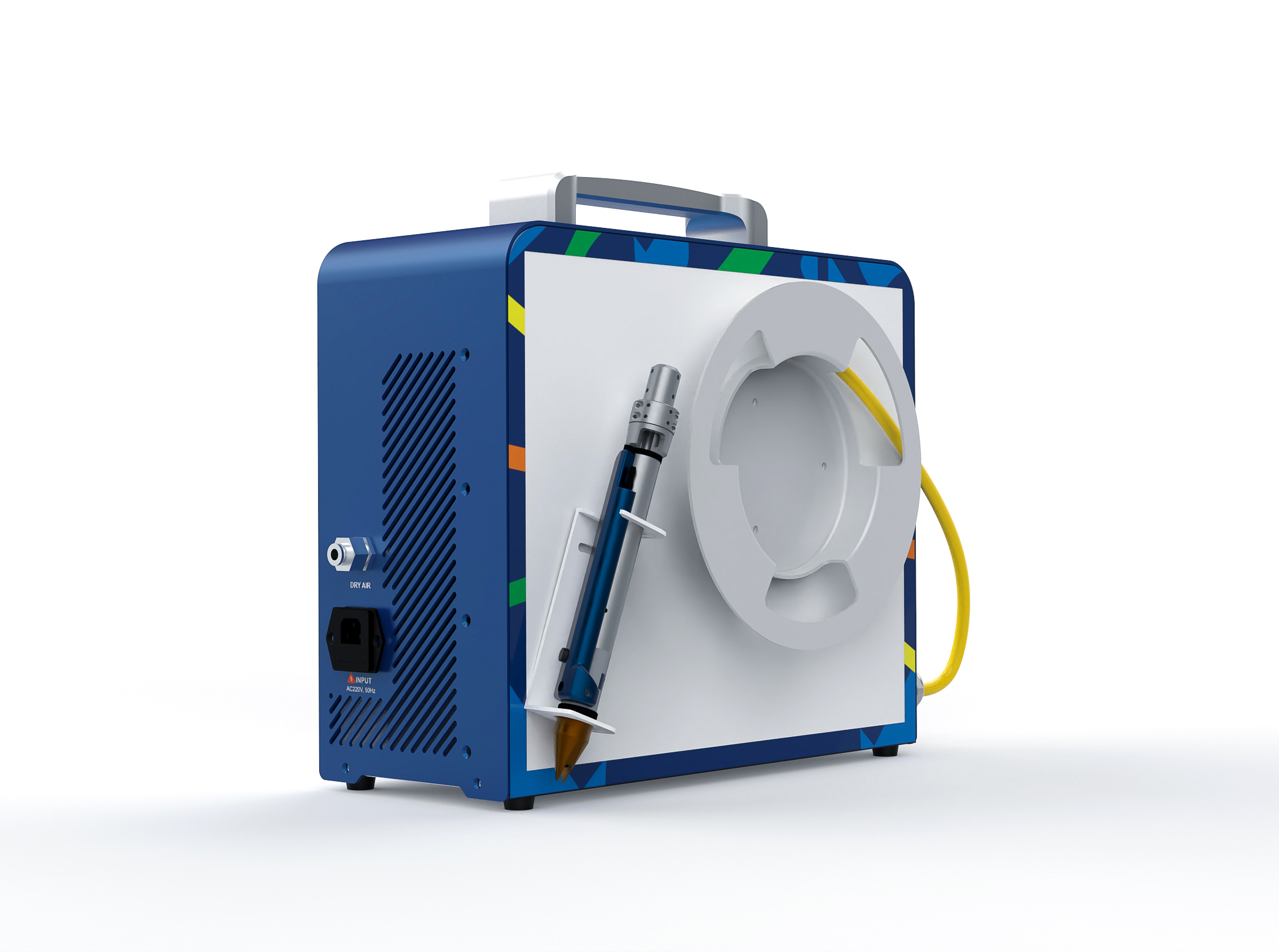

Superstar 300W Portable QCW Laser Spot Welding Machine

Product Overview

Traditional TIG and MIG welding methods frequently destroy ultra-thin metal parts through excessive heat input, warping, and burn-through. The Superstar 300W QCW Portable Laser Welder eliminates these problems by concentrating energy into precise pulses through a 100μm fiber core, enabling clean welds on sheets as thin as 0.1 mm.

At only 11.5 kg with dimensions of 374.5 × 191 × 330 mm, the machine is designed to go where the work is — whether that's a signage workshop, a lighting assembly line, or a field repair site. The QCW laser architecture provides 600W peak power from a 300W average-power source, delivering the burst energy needed for strong spot welds without the thermal damage of sustained high-power output.

Core Advantages

• Ultra-Thin Precision Welding: Welds 0.1 mm boards without burn-through. Solder joints are smooth, beautiful, and seamless — no post-weld grinding or finishing required.

• 24-Hour Continuous Operation: Supports long-term non-stop welding, doubling production efficiency compared to machines that require cooling breaks.

• One Machine, Full Range: From ultra-thin 0.1 mm precision parts to 1.5 mm sheet metal, various metals can be welded with a single unit.

• Zero Consumables: No welding wire, shielding gas bottles, or electrode tips to replace. Low energy consumption keeps overall operating costs minimal.

• Portable & Flexible: The 11.5 kg lightweight body is easy to move and suitable for various production scenarios.

Technical Parameters

Detailed Component Analysis

• QCW Fiber Laser Source: The quasi-continuous wave architecture stores energy between pulses and releases it in high-peak bursts (600W from a 300W source). This is what allows clean spot welds on ultra-thin material — each pulse delivers concentrated energy (up to 6J in 10ms) before heat can spread and cause warping or burn-through.

• 100μm Fiber Core: The tight 100 μm core diameter produces a highly focused beam spot, enabling the 0.1 mm minimum welding thickness and ensuring precise, narrow weld seams.

• Wide Pulse Frequency Range (1–300 Hz): The adjustable frequency from 1 to 300 Hz gives operators full control over heat input. Low frequencies suit thicker materials and deeper penetration; high frequencies deliver rapid, shallow spot welds for ultra-thin sheets.

• Extended Operating Temperature: The -20°C to 55°C range allows reliable operation in cold warehouses, hot factory floors, and outdoor environments.

Applicable Industries & Materials

• Thin Plate Fabrication: Precision welding of ultra-thin stainless steel, carbon steel, and aluminum enclosures, brackets, and housings from 0.1 mm to 1.5 mm.

• Advertising & Signage: Welding stainless steel channel letters, backlit sign frames, and decorative metal logos without visible distortion or discoloration.

• Lighting Products: Assembling thin metal lamp housings, reflector brackets, and LED fixture components where heat damage to nearby electronics must be avoided.

• DIY & Prototyping: Manual DIY projects, small-batch prototyping, and repair work where portability and precision matter more than high-volume throughput.

Why Choose Superstar CNC?

• No Consumables, No Hidden Costs: Unlike MIG/TIG systems that consume wire, gas, and electrodes, this laser welder operates with zero consumables, making total cost of ownership predictable and low.

• Compact Footprint, Full Capability: At 374.5 × 191 × 330 mm and 11.5 kg, it occupies less space than a desktop printer while covering a 0.1–1.5 mm welding range that would otherwise require multiple traditional machines.

Frequently Asked Questions (FAQ)

Q: Can it really weld 0.1 mm sheet without burning through?

A: Yes. The QCW pulse architecture delivers 600W peak power in controlled bursts (6J / 10ms), concentrating energy precisely at the weld point before heat can spread. This is what prevents burn-through on ultra-thin boards while still producing strong, seamless joints.

Q: Does it require welding wire or shielding gas?

A: No. The machine operates with zero consumables. The fiber laser beam fuses the base metals directly, eliminating ongoing costs for wire, gas, and electrodes.

Q: What metals can it weld?

A: It is described as capable of welding various metals across the 0.1–1.5 mm thickness range. Typical applications include stainless steel, carbon steel, and aluminum commonly found in signage, lighting, and thin-plate fabrication.

Q: Can it run all day on a production line?

A: Yes. It supports 24-hour continuous non-stop welding operation.
