Customer: 30-person wardrobe and kitchen cabinet manufacturer, Brazil
Machine: Superstar 2130 Linear ATC CNC Router (customized)
Delivery: May 2026
Result: Daily panel output increased 1.5× to 2× within the first month of production
Background: A Factory at a Growth Crossroads
Not every production bottleneck looks like a crisis. Sometimes it looks like steady growth — more orders coming in, the team working harder, the machine running longer hours — and yet output is not keeping pace with demand.
That was the situation facing a 30-person wardrobe and kitchen cabinet factory in Brazil when they first contacted us. The business was doing well. Their reputation for quality fitted wardrobes and custom kitchen cabinets had built a reliable customer base, and order volumes had been climbing consistently for two years.
The problem was their CNC router.
Their existing standard 3-axis machine was capable — it had served them well in the early years. But as their product range expanded and job complexity increased, the machine's limitations were becoming a daily constraint. Every cabinet door with a decorative chamfer, every wardrobe panel with a full hardware hole pattern, every kitchen cabinet carcass requiring both profile routing and hinge drilling meant multiple manual tool changes per panel.
The factory's production manager put it plainly in our first video call:
"We have good orders. We have good people. But the machine stops too many times every shift. The operator is changing tools, re-zeroing, restarting — again and again. We cannot grow the output without solving this problem."
They were not looking for a marginal improvement. They needed a machine that could handle their full production workflow — wardrobe panels, kitchen cabinet components, hardware hole drilling — in a single uninterrupted program cycle, on the large-format sheets their production was built around.
The Core Problem: Manual Tool Changes Were Consuming the Shift
To understand the scale of the problem, consider what a typical wardrobe panel job looked like on their standard machine.
A single wardrobe side panel required:
Compression spiral bit — full-sheet nesting cut and panel profile routing
35mm hinge cup bit — concealed hinge drilling (typically 2–4 cups per panel)
5mm drill bit — shelf pin hole rows (typically 10–16 holes per panel)
V-bit — decorative chamfer on visible edges
Four tools. Four manual stops. Four collet changes. Four Z-axis re-zeros. Four restarts.
At a realistic 3 to 4 minutes per manual tool change — accounting for spindle stop, collet loosening, bit swap, re-tightening, Z re-zero, and program restart — each panel carried 12 to 16 minutes of non-cutting dead time.
With a daily production target of 20 wardrobe and cabinet panels per shift, that added up to 4 to 5 hours of lost machine time every single day — time the machine was stopped, not cutting, not producing.
For a 30-person factory where every hour of machine time has a direct impact on order fulfillment, that dead time was the single biggest constraint on growth.
Why a Standard 1325 Machine Was Not the Answer
The obvious upgrade path — replacing the old machine with a newer standard CNC router — would not have solved the core problem. Manual tool changes on a new standard machine are still manual tool changes. The bottleneck would remain.
What the factory needed was an Automatic Tool Changer (ATC) CNC router — a machine that stores multiple tools in an onboard magazine and switches between them automatically in seconds, without any operator intervention.
But there was a second requirement that complicated the search: sheet size.

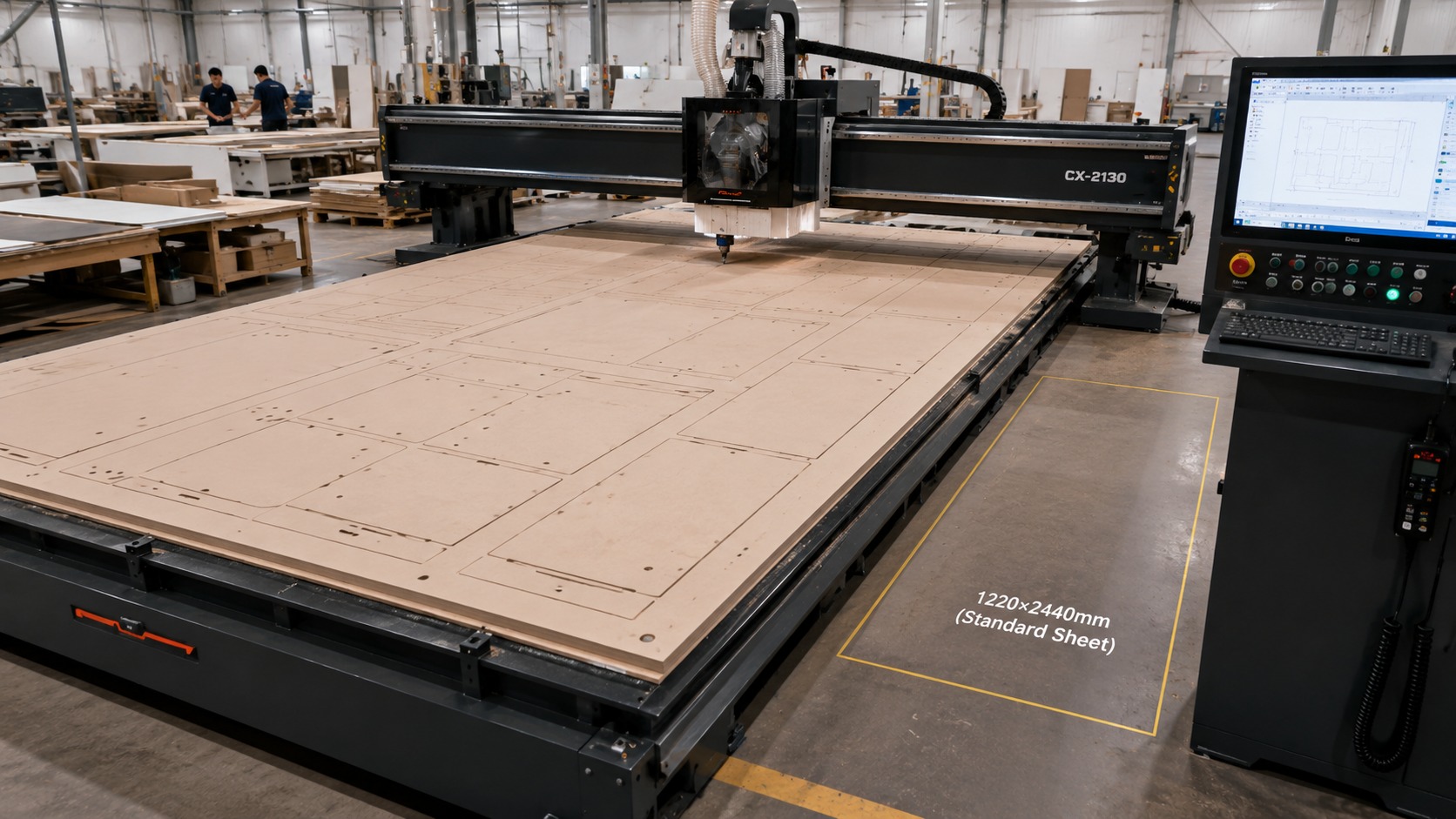

The factory's production workflow was built around 2100×3000mm large-format panels — a sheet size common in the Brazilian market that offers significantly better nesting yield for wardrobe and kitchen cabinet components than the standard 1220×2440mm sheet. A standard 1325 machine (1300×2500mm working area) could not accommodate these sheets.
They needed a 2130 ATC — a machine with a 2100×3000mm working area and a full automatic tool changer. This is a non-standard configuration that requires custom frame engineering and is not available off the shelf from most suppliers.
After evaluating several options — including local Brazilian distributors and European brands — they contacted us. Our ability to engineer and build a custom working area on our proven ATC platform, combined with our experience in configuring machines for the Brazilian electrical standard, was what brought the conversation forward.

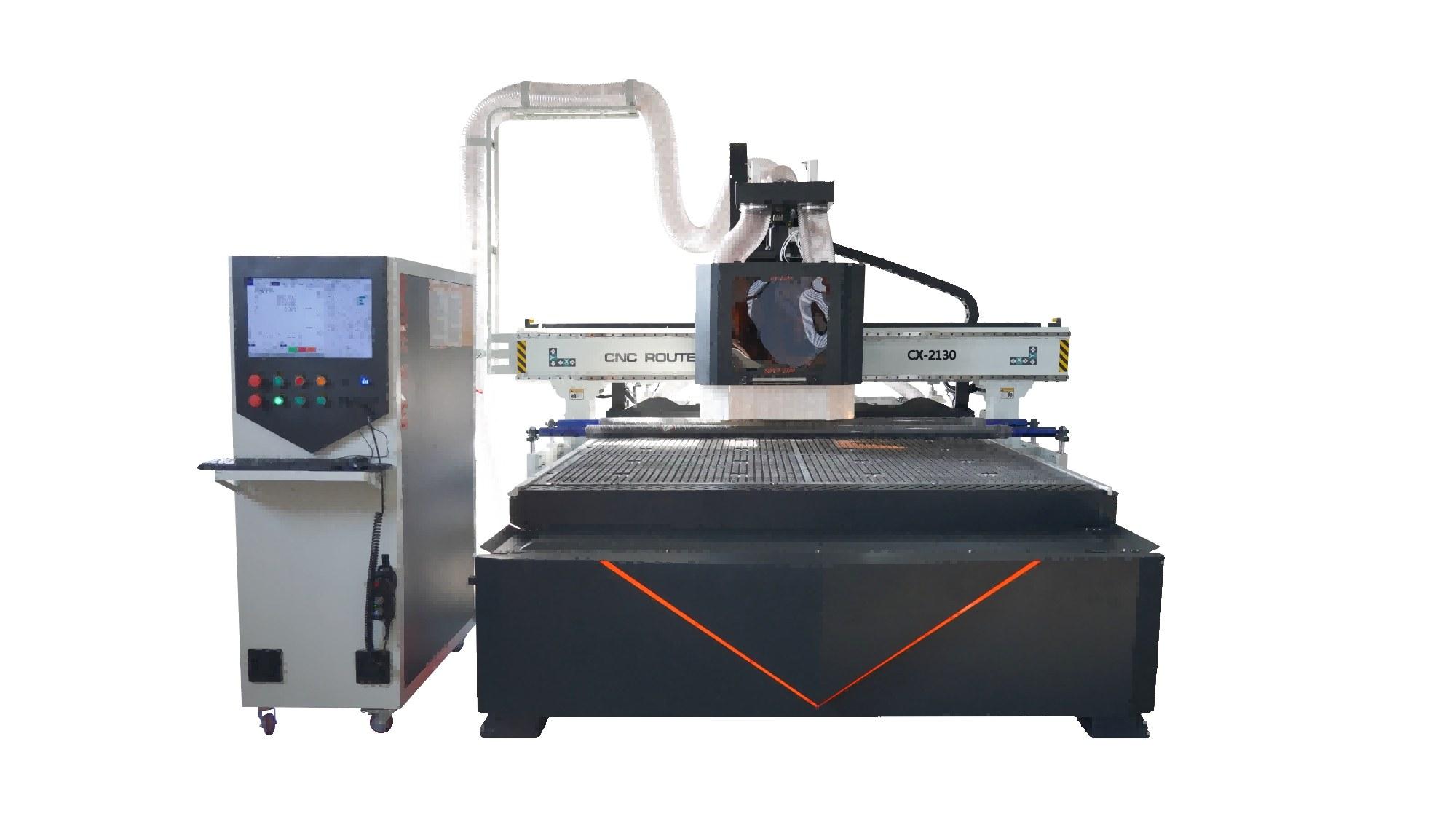

Our Solution: A Factory-Configured Superstar 2130 Linear ATC CNC Router
Following a detailed technical consultation, we proposed a customized Superstar 2130 Linear ATC CNC Router — an extension of our proven CX-1325 B2 Linear ATC platform, scaled and configured specifically for this customer's production requirements.
What Made This Configuration Right for a Wardrobe and Cabinet Factory
12-slot linear tool magazine
Twelve tool positions comfortably cover the full toolset required for wardrobe and kitchen cabinet production — compression spiral bits in multiple diameters, hinge cup bits, shelf pin drill bits, V-bits for chamfering, and groove cutters for back panel dadoes — with spare positions for job-specific tools. The linear magazine design was selected for its higher tool capacity compared to a standard 8-position disc changer, and for its straightforward maintenance access — an important consideration for a 30-person factory without a dedicated maintenance engineer.
9KW ATC spindle
The 9KW air-cooled spindle provides the cutting force needed for full-depth nesting cuts through 18mm and 25mm melamine-faced particleboard and MDF at production feed rates. Air cooling eliminates the water chiller circuit required by water-cooled spindles, reducing daily maintenance complexity.
1.5KW closed-loop servo drives
Unlike stepper motors that can lose positioning accuracy under heavy cutting loads, the closed-loop servo system maintains ±0.05mm repositioning accuracy consistently across a full production shift. For wardrobe and kitchen cabinet production where hinge cup positions and shelf pin hole rows must land in exactly the correct location on every panel, this accuracy is not a specification detail — it is a direct production quality requirement.
Double-deck vacuum table with 7.5KW pump
The double-deck vacuum table design provides uniform suction pressure distribution across the full 2100×3000mm working area. The 7.5KW water-ring vacuum pump delivers the airflow volume needed to hold large-format melamine panels securely without mechanical clamps — including smaller offcut pieces that remain on the table after nesting cuts. For a production workflow built around full-sheet nesting, reliable vacuum hold-down across the entire table is essential.
Taiwan Syntec controller
The Syntec control system was selected for its robust compatibility with professional nesting software — the control system the customer's design team was already using for their wardrobe and cabinet CAD/CAM workflow. No software migration was required; the new machine integrated directly into their existing design-to-production process.
The Customization Details That Mattered
Beyond the core machine specification, three specific customizations were critical to making this order work correctly for a Brazilian customer.
Custom 2130 Frame Engineering
The 2130 working area is not a standard catalog size. Scaling from 1325 to 2130 requires engineering the frame, gantry beam, guide rail spans, rack-and-pinion drive lengths, cable chain, and vacuum table zones to the larger dimensions while maintaining the structural rigidity of the standard platform.
The extended frame was built using the same heavy-duty welded steel construction and high-temperature tempering process as our standard machines — a process that relieves internal stresses in the steel and ensures the bed maintains its geometry under the dynamic loads of high-speed production operation. The gantry beam was engineered to the extended 2100mm span without deflection under the weight of the spindle assembly and the cutting forces of full-depth passes through dense panel materials.
60Hz Electrical Configuration
Brazil operates on 380V/60Hz/3-phase power — a specification that differs from the 50Hz standard common in China and Europe. Every electrical component in the machine was specified and configured for 60Hz operation:
Spindle inverter: programmed for 60Hz base frequency, ensuring correct spindle RPM calibration
Servo drives: motor parameters configured for 60Hz supply
Vacuum pump motor: 60Hz specification confirmed with the pump manufacturer
Control cabinet wiring: confirmed for 380V/60Hz input
This is a customization that is frequently handled incorrectly by suppliers without genuine export experience. A machine with 50Hz-configured components running on a 60Hz supply will have incorrect spindle speeds, reduced motor efficiency, and potentially shortened drive component life. We provided the customer with full electrical documentation confirming the 60Hz configuration — documentation they could present to their electrician and their import agent.
Nesting Software Integration
The customer's design team used a specific CAD/CAM nesting software platform for their wardrobe and kitchen cabinet production. Before finalizing the machine specification, we confirmed that the Syntec controller's post-processor was compatible with their software's output format, and provided the correct post-processor configuration file.
This step — which takes less than a day on our side but can take weeks to resolve after delivery if overlooked — meant the customer's operators could run their first production program on the new machine without any software reconfiguration or compatibility troubleshooting.
From Order Confirmation to Delivery: The Process
Technical Consultation and Specification (Week 1–2)
The technical consultation covered every aspect of the machine configuration — working area, tooling requirements, electrical specification, software compatibility, and workshop installation requirements. Our technical team prepared a full specification document, dimensional drawings for workshop space planning, and an electrical schematic confirming the 60Hz configuration.
The customer's production manager and their electrician reviewed the documentation before order confirmation. Questions were answered via video call and written response. The specification was confirmed without changes.
Production and Quality Control (Weeks 3–8)
Machine production followed our standard manufacturing sequence: frame fabrication and tempering, mechanical assembly, electrical installation, and pre-shipment testing.
Pre-shipment testing covered:
ATC cycle test: All 12 tool positions cycled through complete automatic tool change sequences. Tool change time confirmed ≤5 seconds. Tool holder seating repeatability confirmed across 10 consecutive changes per position.
Axis accuracy test: 500×500mm square cut on MDF. Both sides confirmed within ±0.05mm. Diagonals confirmed equal — axes square within tolerance.
Vacuum table test: Full 2100×3000mm MDF sheet held under production vacuum. Hold-down confirmed across full table area including corner zones.
Full production program test: A representative wardrobe panel nesting program — four tool operations, full-sheet nesting, hardware hole drilling — run at production feed rates. Cut quality, hole position accuracy, and ATC sequencing all confirmed.
Electrical test at 60Hz: All components tested at 380V/60Hz. Spindle speed calibration confirmed. Servo performance confirmed.
The complete test run was recorded on video and shared with the customer before shipment. The customer's production manager reviewed the video and confirmed the machine performance matched the specification.
Export Documentation
Our export team prepared a complete documentation package for Brazilian customs clearance:
Full English-language operator and maintenance manual
First-year recommended spare parts list with part numbers
The customer's import agent confirmed the documentation package was complete and correctly formatted. Customs clearance proceeded without delays.

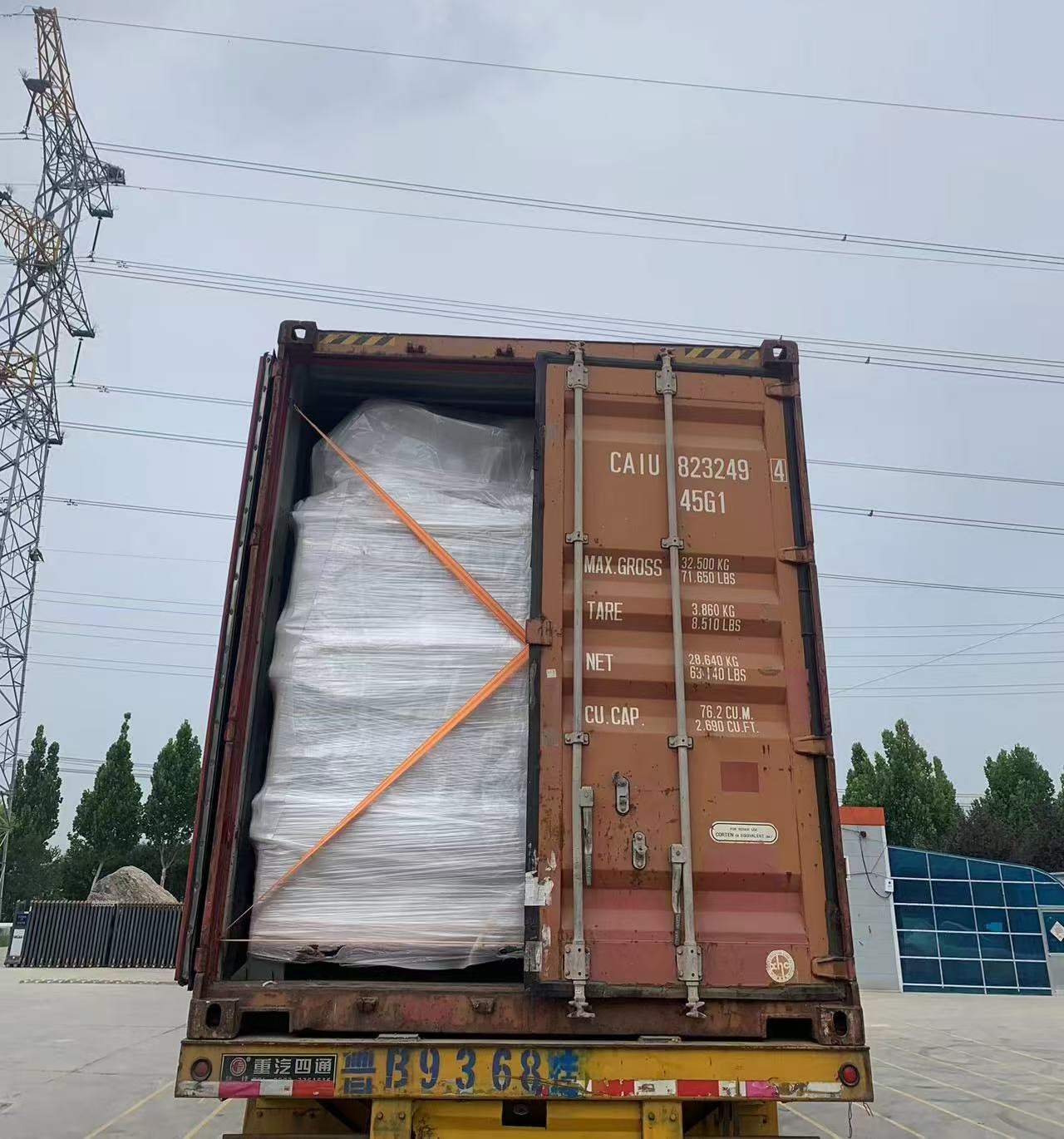

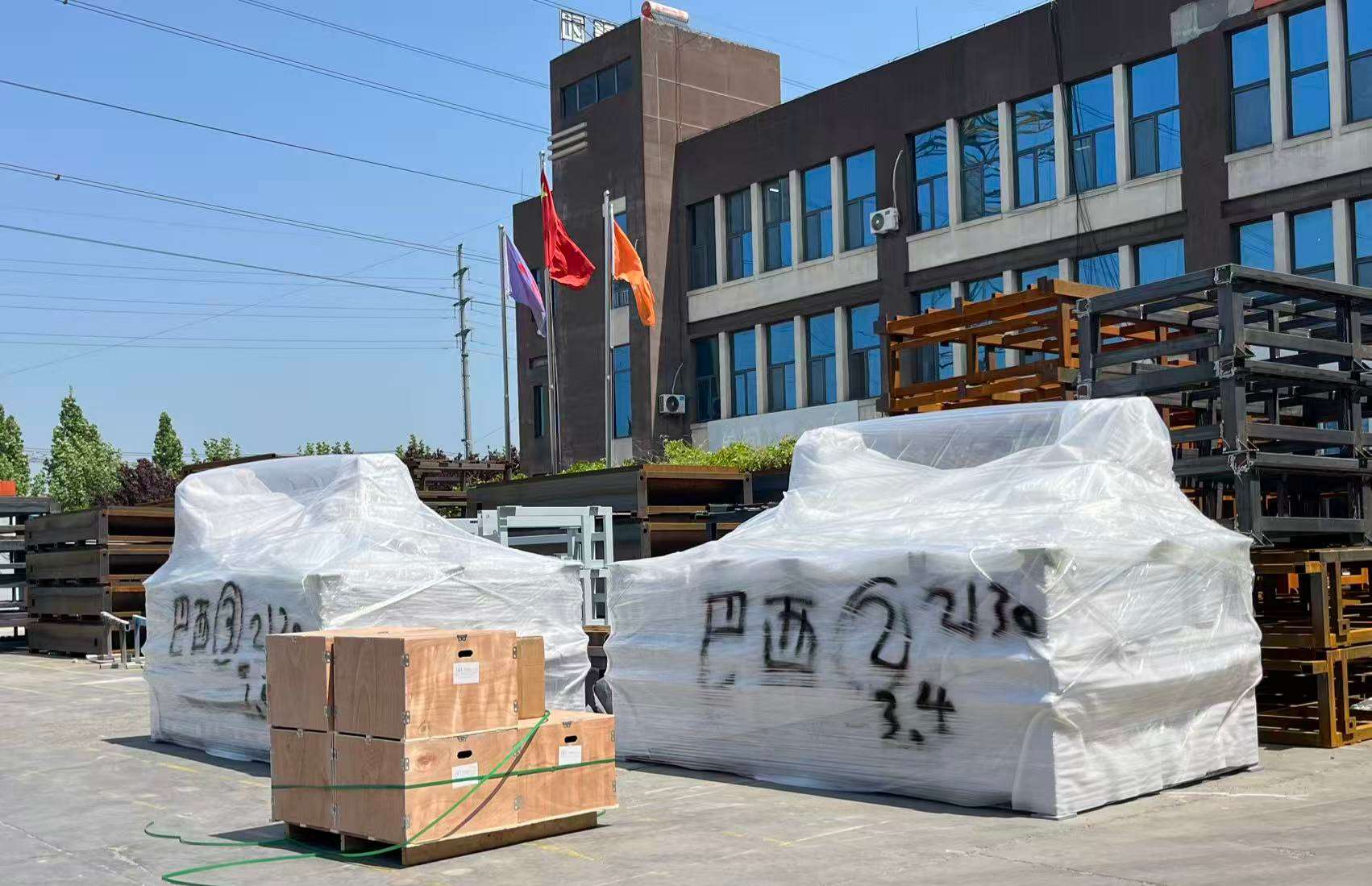

Export Packaging
The machine was disassembled into shipping sections and packed in reinforced wooden crates with moisture-barrier wrapping on all machined surfaces and guide rails, foam padding on precision components, anti-vibration blocking, and assembly sequence labeling on all crates.
Delivery: May 2026
The machine shipped from Qingdao port and arrived at the customer's facility in May 2026, on schedule.
Installation: Up and Running in Two Days
Installation was completed by the customer's own engineering team with remote support from our technical team via video call. The installation process — from uncrating to first production run — was completed in two days.
Day 2: Spoilboard installation and surfacing, ATC system setup, tool magazine loading, tool length measurement calibration, first production test run.
The machine was running wardrobe panel production jobs by the afternoon of Day 2 — ahead of the customer's planned timeline.
Our installation support process is designed for international buyers installing without an on-site engineer. For a detailed walkthrough of the full setup process, see our guide on how to set up your CNC router for the first time.
Results: Output Up 1.5× to 2× Within the First Month
Within the first month of production operation, the factory reported measurable improvements across every key production metric.
Tool Change Time: From 12–16 Minutes to Under 30 Seconds
The most immediate transformation was the elimination of manual tool change time. The same four-operation wardrobe panel job that previously required 12–16 minutes of manual stops now completes all four automatic tool changes in under 30 seconds total.
Across a production shift of 20 panels, the time previously lost to manual tool changes — 4 to 5 hours — was recovered as productive cutting time.
Daily Output: 1.5× to 2× Increase
With recovered machine time now available for additional panel production, and with the larger 2130 working area enabling better nesting yield from large-format sheets, the factory's daily wardrobe and cabinet panel output increased by 1.5 to 2 times within the first month compared to their previous machine.
The factory manager confirmed the result:
"In the first month, we are making in one shift what used to take us almost two shifts. The ATC is the difference. The machine changes the tool by itself and keeps cutting. We don't stop. The output is much higher and the quality is very consistent."
Output Consistency: Hardware Holes in the Right Place, Every Panel
With ATC tool changes replacing manual collet swaps, the small but persistent variability in hinge cup depth and shelf pin hole position that had been a quality issue on the previous machine was eliminated. Hardware holes now land in the correct position consistently across every panel in a production run — reducing fitting time on the assembly floor and eliminating the rework that had previously been required for misaligned hinge cups on wardrobe carcasses.
Operator Workflow: From Machine Attendant to Production Manager
With the machine handling all tool changes automatically, the operator's role changed fundamentally. Instead of standing at the machine through every tool change, the operator now loads a sheet, starts the program, and manages other production tasks — preparing the next sheet, checking completed panels, coordinating material flow — while the machine runs uninterrupted.
For a 30-person factory where every team member's time has direct production value, this shift in operator workflow is as significant as the raw output increase.
Why This Customer Chose Superstar CNC
When we asked the customer what had made the difference in their supplier selection, the answer covered the full range of factors that matter to a factory buyer making a significant equipment investment.
Product: The Right Machine for the Application
The 2130 working area was a hard requirement that eliminated most standard machine suppliers from consideration immediately. Our ability to engineer and deliver a custom working area on a proven ATC platform — not a compromise or an adaptation, but a properly engineered machine at the required size — was the foundation of the decision.
For buyers comparing ATC configurations, our ATC CNC Router range covers standard and custom working area options for furniture and cabinet production.
Design: Proven Platform, Custom Scale
The CX-B2 platform's track record in panel furniture production across multiple markets gave the customer confidence that the 2130 scaling was built on a validated design, not an experimental one. The machine's core architecture — tempered steel frame, helical gear rack drive, Syntec controller, 12-slot linear magazine — is the same proven system at every working area size.
Customization: 60Hz Electrical Done Correctly
The 60Hz electrical configuration was a specific technical requirement where the customer had encountered problems with other suppliers. Our detailed electrical documentation — provided before order confirmation, not after delivery — gave them the confidence that the machine would work correctly on their power supply from the first power-on.
This is a detail that separates suppliers with genuine export experience from those who treat all markets as identical. For buyers evaluating Chinese CNC router suppliers, our guide on what to check before buying a CNC router from a Chinese manufacturer covers the key questions to ask about electrical configuration and export capability.
Quality Control: Pre-Shipment Testing with Video Evidence
The full pre-shipment test run — documented on video and shared with the customer before shipment — addressed the most common concern of international buyers: receiving a machine that performs differently from what was specified. Seeing the machine run a representative wardrobe panel production program, with all four ATC tool changes completing in under 5 seconds and the finished panel dimensions confirmed on camera, gave the customer the assurance they needed.
Export Documentation: No Customs Delays
The complete, correctly formatted export documentation package — including the 60Hz electrical compliance documentation that Brazilian customs required — meant the machine cleared customs without delays or additional requests for documentation. For a factory that had planned their production schedule around the delivery date, this was a practical and valued outcome.
After-Sales Support: Remote Installation in Two Days
The availability of our technical team for real-time remote support during installation — via video call, in English — meant the customer's engineering team could resolve questions immediately rather than waiting for email responses. The machine was in production within two days of arrival.
For ongoing maintenance guidance, our CNC router maintenance tips guide covers both standard and ATC-specific maintenance schedules to keep the machine running at peak performance.
Price: Factory-Direct Value Against European Alternatives
As the original manufacturer, we delivered a machine with a 9KW ATC spindle, 12-tool linear magazine, 1.5KW servo drives, Syntec controller, 7.5KW vacuum pump, and custom 2130 frame — fully configured for the Brazilian electrical standard — at a price point the customer confirmed was significantly below comparable European brands.
"The specification is better than what European suppliers offered us, and the price is much more competitive. The quality is exactly what was shown in the specification and the pre-shipment video. We are very satisfied with the machine and with the service."
Key Takeaways for Furniture and Cabinet Factories Considering ATC
This case study reflects a production situation that is common across wardrobe and kitchen cabinet factories at a certain stage of growth. If your factory is experiencing similar constraints, the following points from this case are directly relevant.
Manual tool changes are a scalable bottleneck.
At low production volumes, manual tool changes are a manageable inconvenience. As volume grows and job complexity increases, they become the primary constraint on output. ATC eliminates this bottleneck permanently — the time saving compounds across every shift, every day.
Large-format sheets require a custom working area.
If your production is built around sheets larger than 1220×2440mm, a standard 1325 machine is not the right tool. Custom working area configurations are available — but require a supplier with the engineering capability to build them correctly.
Electrical specification is not a minor detail.
For buyers in 60Hz markets — Brazil, the United States, Canada, Mexico, Japan, and others — correct electrical configuration is a fundamental requirement, not an afterthought. Confirm it in writing, with documentation, before order confirmation.
Pre-shipment testing protects your investment.
A machine that has been tested at full production parameters before shipment — with video documentation shared with the buyer — is a machine you can receive with confidence. Ask for this as a standard part of the purchase process.
