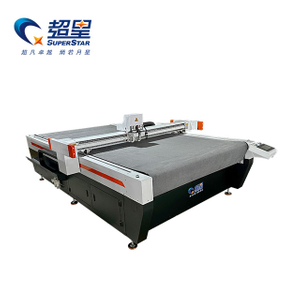

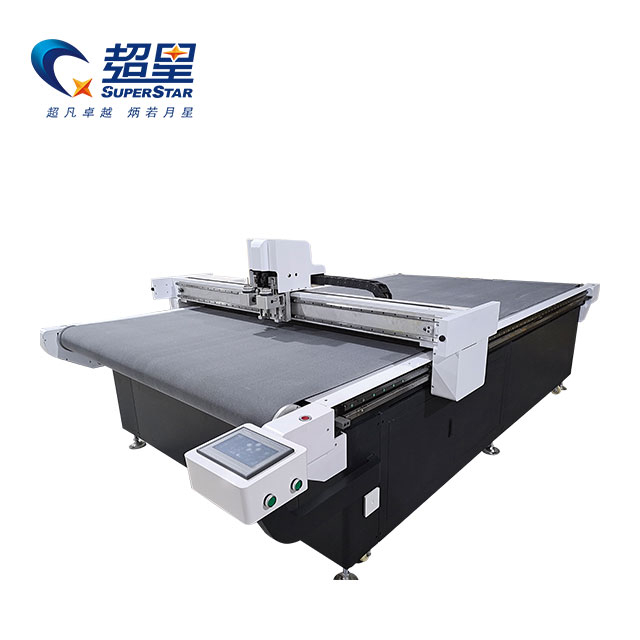

1625S Vibrate Knife Cutting Machine


SKU:
Availability:



Inquire

1625S vibrate knife cutting machine is widely used for cutting fabrics and fibers. The signal line is placed in the crossbeam of the nose, so the machine runs more stably. Circular knife cutting the fabric improves the efficiency of traditional manual marking, ruler adjustment, material layout, and cutting rate, precise cutting.

Model:
CX-1625S
Brand:
Superstar CNC

Working Video

Product Description

Leather Cutting Machine Feature:

Laser emergency stop device, four laser beams, as long as the laser beam is blocked, the machine automatically stops working, to avoid the human body being touched by the moving tool head or cardboard raised and stuck the tool head. The signal line is placed in the crossbeam of the nose, so the machine runs more stably.

Taiwan imported linear guideway with belt drive ensures high-speed operation of the machine while cutting smoothly to achieve rapid and accurate cutting.

The steel frame designed by the machine adopts high density steel plate, which is not easy to deform, and the weight of the whole machine is increased. It ensures the stability of the machine and the better effect when the machine is cut.

The cabinet is structured and wiring is clear, which can prevent the interference of strong electricity and weak points and maintain the stability of the machine.

Motors and drives adopt Taiwan Delta driver and all motors are fully digital.

With modular working cylinder, the table surface has strong adsorptive force.

Specification

NO.	Formation	Brand and standards	Performance Overview
1	Bed body	5mm steel pipe welded bed body	Bare weight 450kg, sufficient weight, high rigidity, no deformation
2	Vacuum adsorption platform	42mm aluminum bellows platform	Permanent non cracking and non deformation
3	Servo motor	Y750W/X400W/Z100W	High torque, fast response speed, stable performance, and good anti-interference ability
4	Reducer	NEWGEAR	High torque and precision
5	Rail	CSK	High wear resistance accuracy, good noise reduction effect, easy maintenance
6	Bearing	NSK	High wear resistance and precision, quiet operation
7	Panzer chain		Silent and highly flexible tank chain
8	belt	BOAOCD	Low noise, buffering and vibration absorption
9	switch power supply	MEAN WELL	Adequate current output, stable continuous operation
10	relay	CHINT	High response frequency and long lifespan
11	Leakage protector	CHINT	Stable and durable
12	motor protector	DELIXI	Effectively protect the voltage and current of the vacuum pump to prevent pump burnout
13	felt	4mm felt
14	vacuum pump	7.5kw/three phase 380V vacuum pump
15	cable	Industrial high flexibility cable	Stretching exercise, resistant to bending and not easily broken
16	Processing format	Horizontal 1600mm x longitudinal 2500mm
17	Machining accuracy	±0.02mm
18	repeatability	±0.05mm
19	Processing speed	50mm/s-1800mm/s	Depending on the thickness of the material
20	power	9.5kw
21	Cutting system	Shenzhen RUIDA
22	material height	30mm
23	cutting tool	Round knife+paint brush	Cutting fabrics and leather with a round knife, writing with a paintbrush
24	Digitizer	Optional
25	Scheduling software	Optional
26	Fabric roll bracket	A simple fabric roll bracket
27	Machine dimension weight	L3700mmx W2200mmxH1300mm/900kg
28	Wooden case	3800mm2300mm1300mm/1000kg
