Mastering CNC Tooling: Selection & Management Guide for ATC Routers

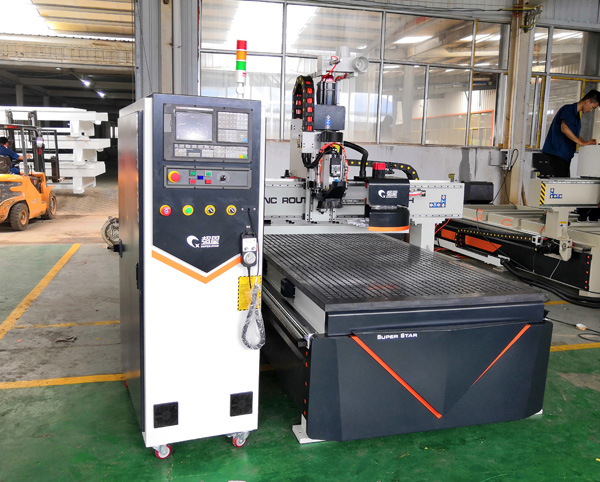

You can have the most expensive, heavy-duty ATC CNC Router on the market, but if you equip it with the wrong tool, your results will be mediocre at best.

The cutting tool (bit) is the only part of the machine that actually touches the material. It determines the edge finish, the cutting speed, and ultimately, the profitability of the job. For ATC users, managing a library of 8, 12, or even 20 tools adds another layer of complexity.

In this guide, we break down the science of tool selection and the art of tool management to help you get the perfect cut every time.

The Arsenal: Common CNC Bit Types & Applications

Understanding geometry is key. Here are the must-have tools for any professional shop.

1. Compression Bits (The "Nesting King")

• Geometry: Features both an up-cut and a down-cut spiral.

• Best For: Plywood, Melamine, and Laminated Particle Board.

• Why: The up-cut bottom pulls chips out, while the down-cut top pushes the laminate down. This prevents chipping on both the top and bottom surfaces of the sheet.

2. Down-Cut Spirals

• Geometry: Pushes chips down into the cut.

• Best For: Small parts, thin materials, and finishing passes.

• Why: The downward pressure helps hold the part in place, reducing the reliance on vacuum hold-down. Warning: Poor chip evacuation in deep cuts.

3. O-Flute (Single Flute)

• Geometry: A single, polished flute with a large gullet.

• Best For: Plastics (Acrylic/Plexiglass) and Aluminum.

• Why: Plastics melt if they get hot. A single flute removes the chip (which carries the heat) instantly, preventing re-welding.

4. V-Bits & Ball Nose

• Best For: Sign making, 3D carving, and chamfering edges.

• Why: Essential for adding artistic detail or folding Aluminum Composite Panels (ACP).

The Selection Logic: Matching Tool to Material

How do you choose? It comes down to Chip Load.

The Golden Rule: Heat is the Enemy

Friction creates heat. If your tool is rubbing instead of cutting, it will burn the wood and dull the edge.

• Hard Woods / Plywood: Use a 2-Flute bit. Run at 16,000-18,000 RPM with a feed rate of 12-15m/min.

• Soft Plastics / Aluminum: Use a 1-Flute bit. You need to clear chips fast. Slow down the RPM (12,000-14,000) but keep the feed rate high to eject the heat.

Pro Tip: If the chips are dust, you are cutting too slow (rubbing). If the chips are actual flakes/curls, you are cutting correctly.

ATC Specifics: Tool Holder & Collet Maintenance

On an ATC CNC Router, the tool is mounted in a holder (ISO30 or BT30). This introduces new maintenance requirements.

1. Clean the Taper (Cone)

The metal cone of the tool holder must be spotless. Even a speck of sawdust or a layer of oil can cause the tool to sit unevenly in the spindle.

• Consequence: "Run-out" (wobble). This vibrates the cutter, causing poor edge finish and breaking tools.

• Action: Wipe the taper and the spindle inside with a clean cloth and specialized cleaner weekly.

2. Collets are Consumables

Collets (ER32, ER25) lose their elasticity over time.

• Lifespan: In a production shop, replace collets every 4-6 months.

• Sign of Wear: If a bit slips or if you see fret marks (bronzing) on the tool shank, the collet is dead.

3. Torque it Right

Do not over-tighten! Use a torque wrench if possible. Over-tightening distorts the collet, increasing run-out.

Conclusion: Quality Starts at the Tip

Investing in high-quality industrial tooling and maintaining your tool holders is the cheapest way to upgrade your machine's performance. A sharp, well-selected tool allows your ATC CNC Router to run faster, quieter, and cleaner.

Don't let a $50 worn-out bit ruin a $50,000 machine's potential.

FAQ: Frequently Asked Questions

Q1: Why is my router bit burning the wood?

A: Burning is caused by friction. You are likely spinning the RPM too fast or moving the machine too slow (Feed Rate). Try increasing your travel speed or lowering the spindle RPM.

Q2: Can I use a drill bit in my CNC router?

A: Generally, no. Standard drill bits are designed for low RPM and vertical force. CNC routers run at high RPM. Use a "Boring Bit" or a "Mill-Drill" designed for CNC use, or use an end mill to spiral-bore the hole.

Q3: What is the difference between Up-Cut and Down-Cut?

A: Up-Cut pulls chips UP (good for deep cuts, bad for top finish). Down-Cut pushes chips DOWN (good for top finish, bad for deep cuts). Compression bits do both.

Q4: How do I know when to change the tool?

A: Listen to the sound. A sharp tool makes a crisp "hum." A dull tool makes a loud "screech" or "rumble." Also, check the edge finish—if it feels fuzzy, the tool is dull.
