Wood CNC Router

ATC CNC wood router is a type of wood CNC machine suitable for carpentry, wooden doors, furniture, cabinets, molds, etc. The carving material including wood sheet, MDF, hard wood, acrylic sheet, PVC foam sheet, PCB sheet,ABS double color sheet, aluminum, brass, gold, silver, etc.

ATC CNC cutting machine can process cabinet furniture, solid wood furniture, and interior composite doors. It has automatic tool changing, cutting, milling, hollowing, grooving, punching, etc.

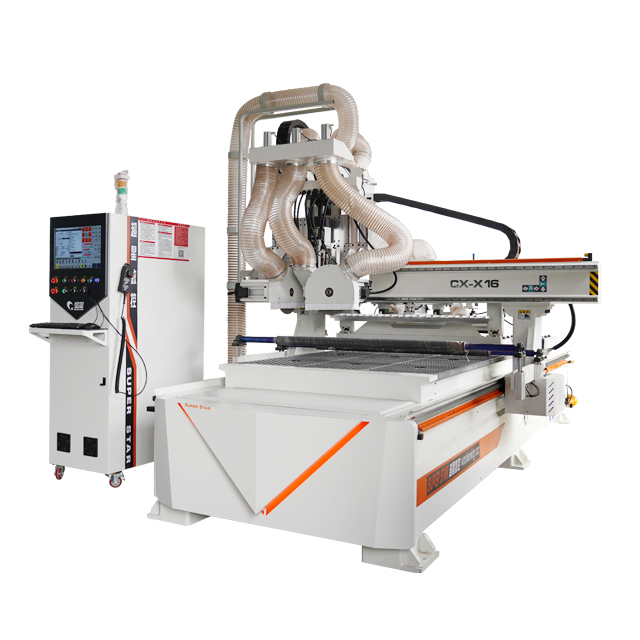

The 2026 Next-Gen Superstar ATC CNC Router is our most advanced industrial machining center to date, engineered for the high-efficiency demands of modern furniture manufacturing. Replacing older models, this 2026 edition features an upgraded Linear Automatic Tool Changer (12-slot capacity) that swaps tools in under 5 seconds, enabling seamless drilling, profiling, and cutting. Powered by a massive 9.0KW Air-Cooled Spindle and the latest Syntec Intelligent Control System, it delivers optimized torque for nesting full sheets of MDF and plywood at speeds exceeding 25m/min. It is the ultimate future-proof investment for automated cabinet production.

The spindle speed of this machine is up to 18,000 rpm, and the engraving surface is smooth. The servo tool changer can automatically switch 8 tools. The optimized current loop design makes the driver have the characteristics of high dynamic response, extremely short setting time, stable operation, and small vibration when stopping.

Superstar CNC 1200Y small woodworking single head cylinder machine，Is a simple operation of the single cylinder engraving machine, small convenient, automatic processing.

This carving machine is a unique design model, designed for the three-dimensional relief carving of mahogany and classical furniture. It has high precision and fast speed, which fully meets the requirements of carving.Combined with the structure of high-speed rack machine, the carving speed can be effectively improved under the premise of ensuring the accuracy.

The Superstar CX-3D 4-Axis CNC 90-Degree Rotary Engraving Machine is an advanced 3D fabrication center designed for artists, mold makers, and custom furniture workshops. Unlike standard 3-axis routers that cut only from the top, the CX-3D features a Swing Spindle Head (B-Axis) that rotates ±90 degrees, allowing the cutter to attack the workpiece from the side. This capability is essential for carving complex undercuts, curved furniture parts (like chair backs), and 3D statues without multiple setups. It combines the precision of a gantry router with the multi-dimensional flexibility of a robotic arm.

The Superstar CX-1325 Woodworking Side Cylindrical Engraving Machine is the ultimate dual-purpose solution for workshops that process both flat boards and 3D round parts. Based on the robust 1300x2500mm platform, this model integrates a removable Rotary Axis (4th Axis) mounted on the side or table surface. This allows you to carve intricate 3D statues, stair balusters, and table legs without sacrificing the main working area for flat sheet cutting. It transforms a standard 3-axis router into a versatile 4-axis production center.

This engraving machine is specially designed for three-dimensional relief carving of mahogany and classical furniture. High precision and fast speed, fully meeting the requirements of engraving.

This cnc engraving machine the maximum rapid traverse speed can reach 25m/min, and it can cooperate with the powerful cutting spindle to increase the rapid traverse speed. Optional imported NSK bearing spindle, high-speed 2.2KW water-cooled spindle, stable performanc.


CX-1200Y woodworking single-head cylinder machine is small and convenient, with automated processing. Mainly aimed at the relief furniture industry multi-functional processing functions, round wood relief technology. Carving 360° human bodies, Buddha statues, sculptures, handicrafts, furniture, etc.

The Superstar CX-1325 is a multi-spindle woodworking CNC router built for panel furniture production. It uses a 1300mm × 2500mm × 200mm working area and a vacuum adsorption table with clamping wheels for stable sheet processing. With HQD air-cooling spindles (4.5KW×2 + 6KW×2) and Taiwan LNC 2200 control, it supports fast switching between engraving, drilling, cutting, and slotting in one workflow.
