The article mainly introduces what to do when the cnc woodworking engraving machine crashes and there is a problem after it is turned on?

The crash of the woodworking engraving machine is due to voltage fluctuations. This crash caused by voltage fluctuations is mainly manifested in the following four situations:

(1) The prompt on the screen is normal, but the value stops changing and pressing any key does not work.

(2) The screen prompts "Entering the power-off protection state, it may be that your power-off protection does not match the voltage".

(3) When operating manually, the screen prompts "Entering the power-off protection state, it may be that your power-off protection does not match the voltage".

(4) The screen prompts the status prompt of the current operation, and pressing any key will not work.

fcd2cf83fbdf74ec7bbbe265ebfdb76

The above situations will occur when the voltage fluctuates, which is similar to the situation of power failure protection (sudden power failure during processing). Only when the voltage fluctuation is small, there is a screen prompt, and when the voltage fluctuation is too large, the screen cannot be displayed due to the reset circuit action of the power management chip inside the control card. The above situation can basically be solved after adjusting the working voltage of the control card to 5.3V.

What should I do if the woodworking engraving machine crashes during processing, and the handle prompts "Is the power down to restore?" after re-powering it?

Next, Superstar CNC will analyze and solve the situation for you:

(1) The wiring of the machine in the control box is chaotic, due to the interference of the mixed wiring of the strong and weak current lines, and the lines are arranged to separate the strong and weak currents.

(2) There is a problem with the quality of the 5V switching power supply used in the control system, and the scope of application of the switching power supply is narrow. When the power grid fluctuates, the 5V voltage is unstable and causes a crash. Replacing a high-quality 5V power supply can solve the problem

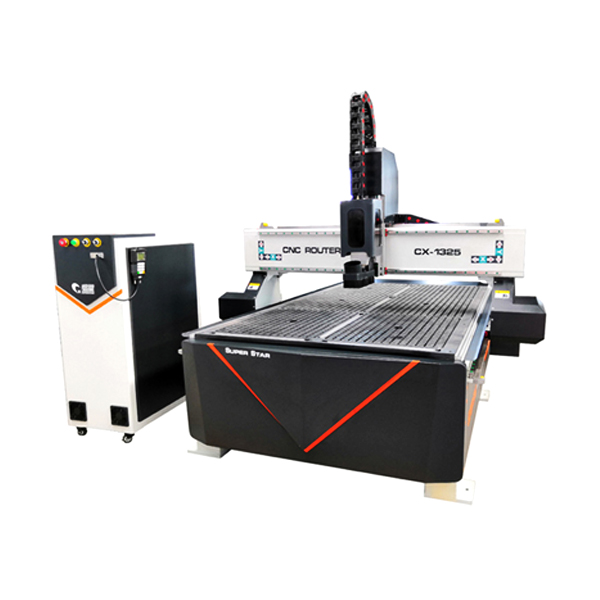

CNC Wood Working Machine

(3) The capacity of the plug at the inlet end of the power supply of the control box is not enough. When two or three axes are linked, the power supply of the driver draws a large current from the high-voltage end at the same time, causing the voltage in the control box to drop suddenly. Switch to a high-capacity plug or use a direct power supply instead of a plug.

The above points are the solutions to the crash phenomenon of the cnc router woodworking machine analyzed for you by Superstar CNC. If you have any human body on the machine, please contact us~
