CNC Wood Router vs Stone Router: Key Differences Explained
Author: Aileen Xe Publish Time: 2026-04-14 Origin: Site

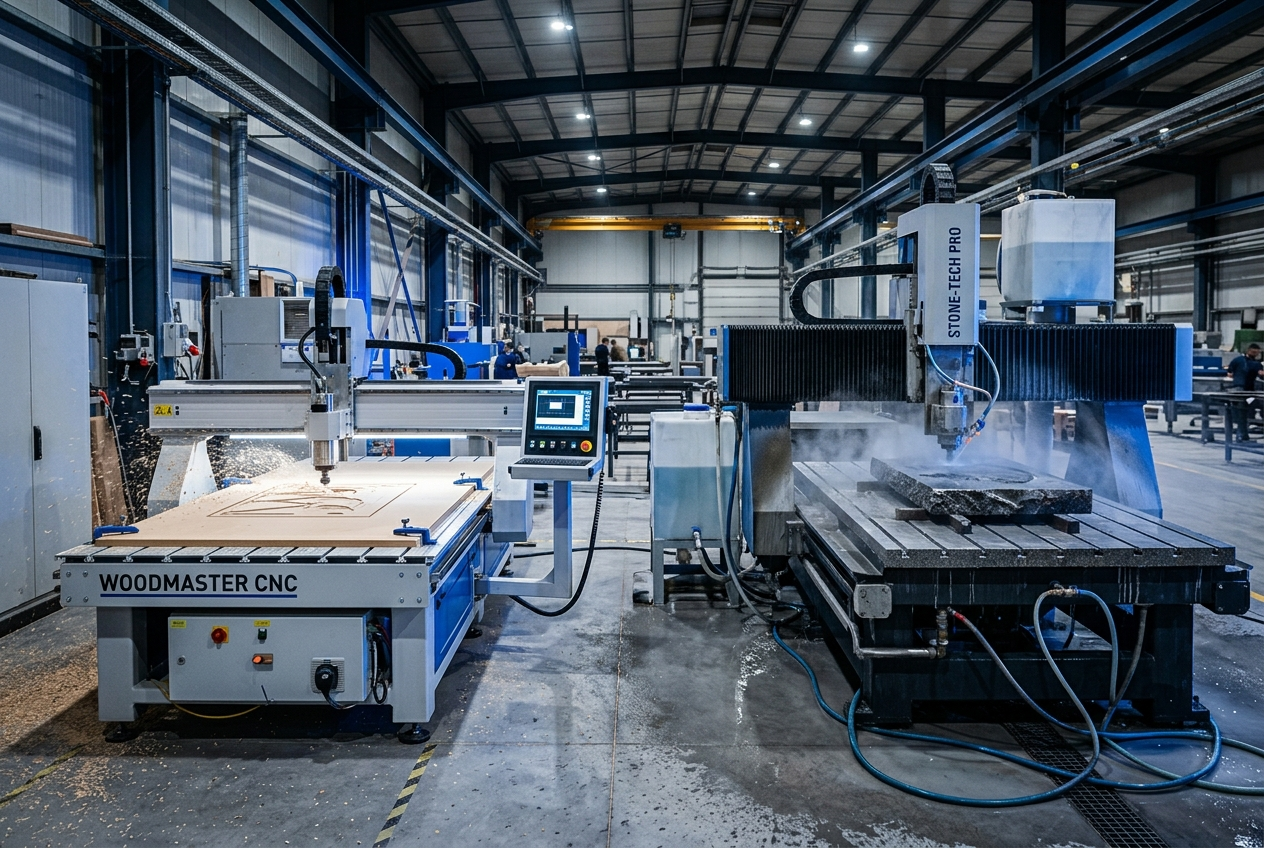

Introduction: The Material Question
Last month, I had two conversations within the same week.
The first was with Ahmed, a cabinet maker in Cairo. He was confused by a sales pitch recommending a "heavy-duty stone-class machine" for cutting MDF panels. The salesman claimed the extra power would make his cuts faster.
The second was with Maria, who runs a granite countertop shop in Lisbon. She was considering a woodworking router to save money, thinking "a router is a router."
Both were about to make expensive mistakes based on the same fundamental misunderstanding: that CNC routers are interchangeable regardless of application.
The truth is that CNC wood router vs stone router represents two entirely different machine categories. A machine optimized for one material will underperform—and potentially fail—when applied to the other. This guide breaks down every meaningful difference so you can make the investment that matches your actual business needs.
At SUPERSTAR CNC, we manufacture both categories from the same factory floor. We've shipped thousands of woodworking routers and stone processing machines to 114 countries. This article draws on that experience to give you honest guidance, not sales pressure.
Chapter 1: Understanding the Material Challenge
1.1 Wood as a Machining Material
Wood is relatively forgiving compared to stone. It cuts cleanly with sharp tools, produces manageable chips rather than abrasive dust, and doesn't immediately destroy misaligned cuts. Wood's cellular structure allows some tool deflection without catastrophic damage, and wood shops can typically absorb minor precision errors.
However, wood varies enormously. MDF cuts easily but releases hazardous dust. Hardwoods like maple or oak demand more power than softwoods. Plywood's layers can delaminate under aggressive feed rates. Composites introduce adhesives that gum up cutting edges.
Woodworking CNC routers must handle this variation while delivering clean surfaces that require minimal finishing. Speed matters too—wood shops often cut hundreds of identical parts where cycle time directly impacts profitability.
1.2 Stone as a Machining Material
Stone presents the opposite challenge. Granites, marbles, and engineered quartz don't yield—they fracture. Every cut applies tremendous mechanical stress that would destroy woodworking spindles and bend light machine frames.
Stone dust is not merely annoying; it's hazardous. Crystalline silica in granite dust causes respiratory disease. According to the Occupational Safety and Health Administration (OSHA), silica exposure controls are mandatory in stone fabrication environments.
Temperature management becomes critical. Stone cutting generates tremendous heat. Coolant systems that would rust woodworking equipment are mandatory for stone machines. Skip adequate cooling, and thermal expansion ruins precision within minutes.
Chapter 2: Structural Differences Between CNC Wood Router vs Stone Router
2.1 Frame Construction
The machine frame must resist deflection under cutting forces. This is where CNC wood router vs stone router differences become immediately apparent.
Woodworking Router Frames
Woodworking machines typically use tubular steel frames with wall thicknesses of 3-6mm. This provides adequate rigidity for wood cutting forces while keeping machine weight manageable. SUPERSTAR CNC woodworking routers feature:
Steel tube frames with 6-8mm wall thickness
Precision-machined mounting surfaces for component alignment
Total machine weights ranging from 800kg (1,200mm × 2,400mm) to 2,500kg (2,000mm × 4,000mm)
Stone Router Frames
Stone machines require industrial-grade construction. The cutting forces involved in granite machining exceed wood cutting by 10-20×. SUPERSTAR CNC stone processing centers feature:
Heavy steel plate construction with 10-15mm wall thickness
Stress-relieved welds to prevent frame distortion over years of operation
Total machine weights from 3,500kg (standard bridge saws) to 15,000kg (large-format machining centers)
The weight difference isn't incidental—it reflects structural engineering necessary for stone operations.
2.2 Gantry and Drive Systems
Woodworking gantry systems prioritize speed. Traverse rates of 12,000-25,000mm/min enable rapid repositioning between cuts. SUPERSTAR CNC woodworking routers use:
Aluminum or lightweight steel gantry bridges for reduced moving mass
Precision ball screw drives for fast, accurate positioning
Servo or stepper motors sized for rapid acceleration
Stone gantry systems prioritize strength over speed. Stone cutting doesn't require rapid traverse—cutting forces would cause vibration-induced errors at high speeds anyway. Typical stone machine traverse rates run 3,000-6,000mm/min. SUPERSTAR CNC stone machines feature:
Heavy steel gantry construction rated for continuous cutting loads
Rack and pinion drives or heavy-duty ball screws for durability
High-torque servo motors designed for sustained cutting rather than rapid positioning
2.3 Table Design
Woodworking tables emphasize material access and clamping flexibility. Vacuum tables dominate because they secure flat panels without mechanical clamps, allowing operators to maximize material utilization. SUPERSTAR CNC woodworking tables feature:
Aluminum vacuum table sections with grid-pattern T-slots
Built-in vacuum pumps sized for simultaneous clamping across multiple zones
Integrated hold-down clamps for irregularly shaped stock
Stone tables must support immense loads. A full granite slab can exceed 500kg, and the table must maintain flatness despite this weight plus cutting forces. SUPERSTAR CNC stone machine tables include:
Reinforced steel tube grid construction
Heavy-duty bridge supports for sag-free operation
Roller conveyor sections for loading and unloading heavy stone pieces
Optional automatic loading systems for production environments
Chapter 3: Spindle and Power Systems
3.1 Woodworking Spindle Specifications
Woodworking spindles prioritize RPM range and run-time reliability. Higher RPM enables finer surface finishes and smaller cutting tools for detailed work. SUPERSTAR CNC woodworking machines typically feature:
Spindle power: 1.5kW to 9kW depending on application
Speed range: 0-18,000 RPM or 0-24,000 RPM
Cooling: Air-cooled (1.5-4.5kW) or water-cooled (5-9kW)
Collet systems: ER11 to ER32 depending on tool requirements
Air-cooled spindles work well for most woodworking applications. They're simpler, require less maintenance, and don't risk coolant leaks on wood materials.
3.2 Stone Spindle Specifications
Stone spindles prioritize sustained power delivery under extreme cutting loads. High RPM matters less than torque and thermal stability. SUPERSTAR CNC stone processing equipment typically features:
Spindle power: 5kW to 15kW (continuous duty rated)
Speed range: 0-6,000 RPM (higher torque at lower speeds)
Cooling: Water-cooled with heat exchangers or chiller systems
Tool interfaces: Custom stone tooling holders (not standard ER collets)
The water cooling isn't optional. Stone cutting generates enough heat to seize bearings and destroy spindle motors within hours without proper thermal management.
3.3 Tool Holding Differences
Woodworking routers use standard ER collet systems. Tools change manually or via automatic tool changers (ATC). Typical wood router tooling includes:
Spiral compression bits for clean edge routing
V-groove bits for sign carving
Ball nose end mills for 3D profiling
Drill chucks for boring operations
Stone routers require diamond-tipped tooling specifically rated for stone machining. Tools include:
Diamond saw blades for straight cutting
Profile wheels for edge shaping
Router bits with diamond cutting edges
Carbide-tipped engraving tools for monument work
Stone tooling costs substantially more than wood tooling, and wear rates vary significantly by material. Granite cuts faster than marble but wears tools more quickly.
Chapter 4: Dust Collection and Environment
4.1 Woodworking Dust Systems
Wood dust is combustible and hazardous to breathe. Proper dust collection protects operator health and prevents fire risks. SUPERSTAR CNC woodworking installations typically include:
Dedicated dust collectors with cyclone separators
4-6 inch ducting from machine enclosure to collector
Downdraft tables for hand-finishing operations
HEPA filtration for fine particle control
Dust collection adds to the total system cost but is non-negotiable for responsible operation.
4.2 Stone Processing Environment
Stone machining generates two challenges: silica dust and water slurry. CNC wood router vs stone router dust systems represent fundamentally different approaches:
Wet cutting systems suppress dust by flooding the cutting zone with water. This eliminates airborne silica but creates slurry that must be contained and managed. SUPERSTAR CNC stone machines feature:
Integrated water tanks and recirculation systems
Splash guards and containment curbing
Sludge removal and settling systems
Water filtration for extended coolant life
Ventilation systems supplement wet cutting for additional protection. Heavy-duty exhaust fans, dust hoods, and respirator requirements vary by jurisdiction.
The water requirements alone can dictate workshop layout—stone machines need floor drains, water supply, and slurry management that woodworking setups simply don't face.
Chapter 5: Precision and Tolerances
5.1 Woodworking Tolerances
Woodworking accuracy requirements are moderate but still demanding for production work. SUPERSTAR CNC woodworking routers achieve:
Positioning accuracy: ±0.05mm (±0.002")
Repeatability: ±0.03mm (±0.001")
Surface finish: Clean enough for direct finishing in most applications
These tolerances suffice for cabinet construction, furniture components, and architectural woodwork. The natural variation in wood materials typically exceeds machine precision anyway.
5.2 Stone Fabrication Tolerances
Stone tolerances are wider due to material challenges but still precision work. SUPERSTAR CNC stone processing centers achieve:
Countertop fabrication demands attention to complex geometry—angled cuts for mitered edges, precise sink cutouts, and seamless joining of multiple pieces. Stone machines must handle this complexity despite the challenging cutting environment.
Chapter 6: Software and Control Differences
6.1 Woodworking CAM Software
Woodworking toolpaths can be aggressive—higher feed rates, deeper cuts, and complex 3D surfaces. Common woodworking CAM software includes:
Vectric Aspire and VCarve for sign making and 3D carving
Fusion 360 for integrated CAD/CAM workflows
RhinoCAM for complex surfacing operations
MeshCAM for mesh-to-toolpath conversion
SUPERSTAR CNC machines support all standard woodworking CAM output formats including G-code, HPGL, and proprietary DSP file formats.
6.2 Stone Processing Software
Stone toolpaths must account for diamond tool wear, coolant management, and material-specific cutting parameters. SUPERSTAR CNC stone machines support:
Type3 for stone-specific toolpath optimization
ArtCAM Stone Edition with wet cutting optimizations
Generic G-code with machine-specific post-processors
Stone software often includes material libraries with pre-configured cutting parameters for common stones—granite, marble, limestone, engineered quartz. This simplifies setup for operators less familiar with stone-specific machining.

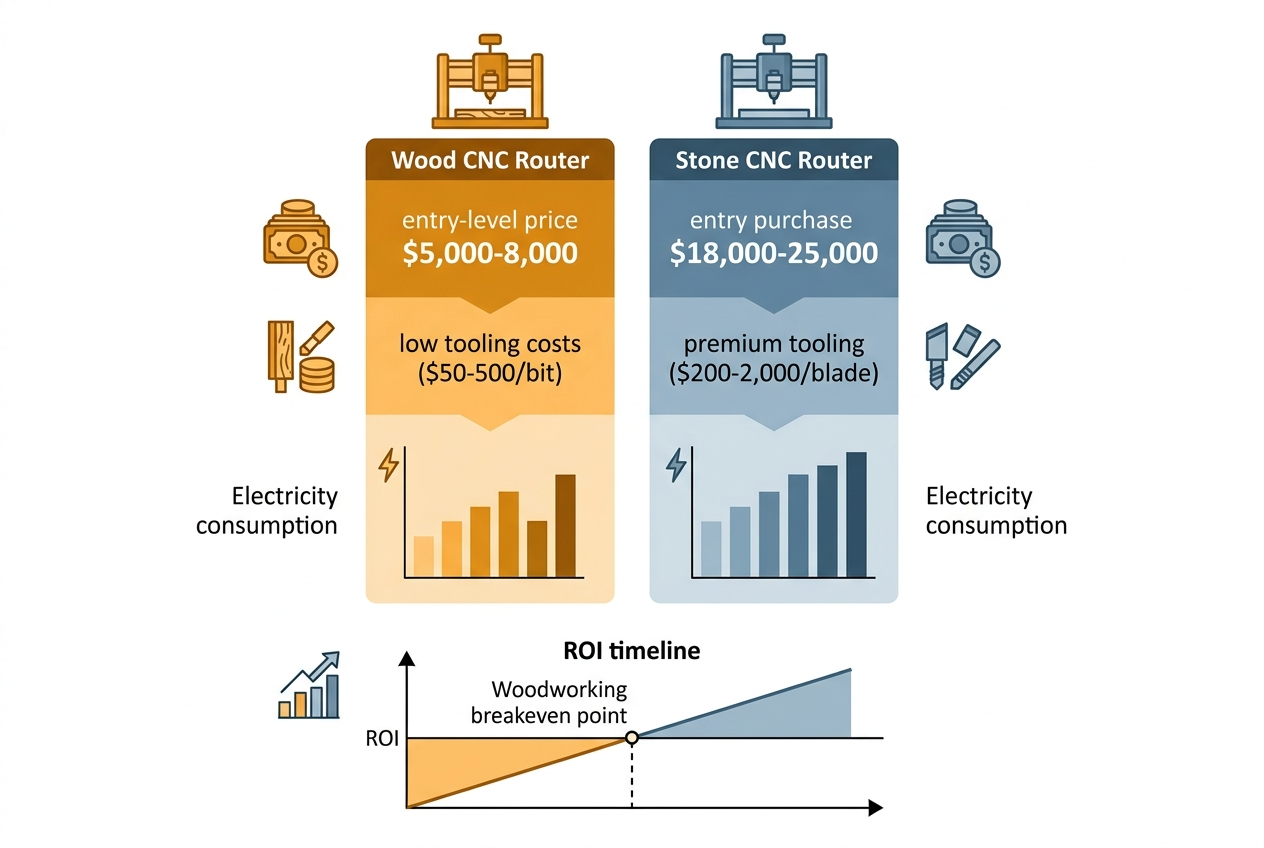

Chapter 7: Cost Comparison
7.1 Entry-Level Machine Costs
Woodworking CNC routers start around $5,000-8,000 for basic 3-axis machines suitable for small shops. Mid-range production routers with automatic tool changers range $20,000-50,000. SUPERSTAR CNC woodworking routers begin at competitive prices with full warranty coverage.
Stone CNC routers start significantly higher due to required structural reinforcement. Basic stone bridge saws begin around $18,000-25,000. Full stone machining centers with 4+ axes and automatic tool changes range $50,000-150,000.
7.2 Operating Cost Differences
Beyond purchase price, CNC wood router vs stone router operating costs differ substantially:
Woodworking operating costs:
Electricity: Moderate (3-6kW spindle consumption)
Tooling: Low to moderate ($50-500 per bit, depending on quality)
Maintenance: Regular cleaning, bearing replacement every 2-3 years
Consumables: Cutting fluid, filter elements
Stone processing operating costs:
Electricity: High (10-20kW continuous consumption)
Tooling: High ($200-2,000 per diamond blade/wheel)
Maintenance: Regular coolant system service, frequent bearing replacement
A realistic estimate: stone processing operating costs run 3-5× higher than equivalent woodworking operations.
7.3 Return on Investment Considerations
Woodworking typically offers faster ROI for shops with sufficient order volume. Lower machine costs, faster cycle times, and reasonable tooling expenses accelerate payback.
Stone fabrication ROI depends heavily on local market pricing. High-value countertop installations in markets with limited competition can justify substantial equipment investments. The margin per square meter of installed stone often exceeds equivalent wood product margins.

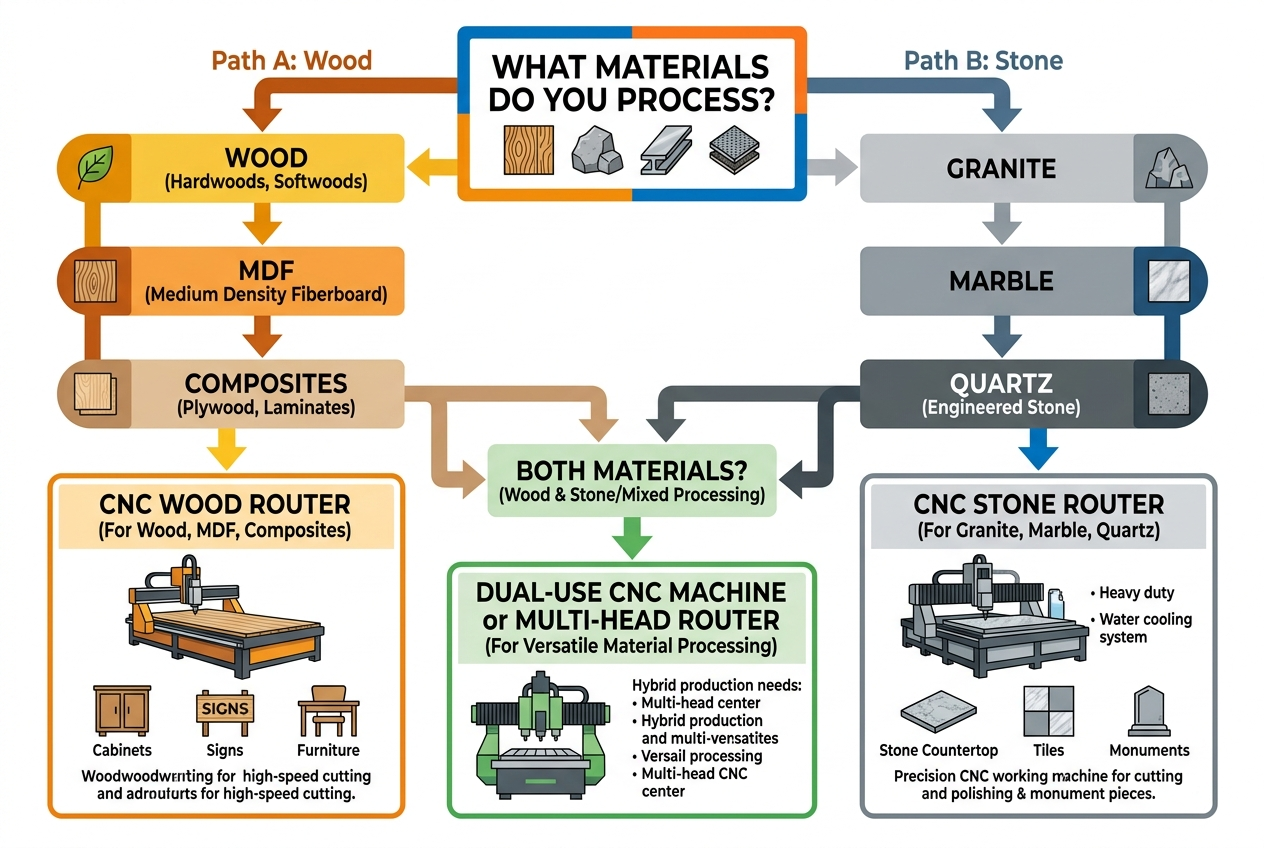

Chapter 8: Making the Right Choice for Your Business
8.1 Choose a Woodworking CNC Router If:
Your primary materials are wood, MDF, plywood, or composites
You need fast cycle times for high-volume production
Your precision requirements are ±0.05mm or looser
Your budget is under $30,000 for primary equipment
You lack infrastructure for water management and slurry disposal
8.2 Choose a Stone CNC Router If:
Your primary work involves granite, marble, quartz, or engineered stone
You fabricate countertops, monuments, or architectural stone elements
Your precision requirements are ±0.1mm or tighter
You have infrastructure for water supply, drainage, and slurry management
Your market allows pricing that justifies higher operating costs
8.3 Consider Both If:
Some businesses genuinely need both capabilities. SUPERSTAR CNC offers combination solutions and advises customers honestly about when dual-machine purchases make sense versus when hybrid machines compromise performance.
Typical scenarios for both machines:
Monument companies that also produce wood signs
Architectural firms with in-house fabrication capabilities
Custom builders working across materials
Salvage and restoration businesses
Chapter 9: The Hybrid Question
9.1 Can One Machine Handle Both?
The market offers "combination" machines marketed as handling wood and stone simultaneously. SUPERSTAR CNC advice: be skeptical.
True combination machines must compromise. The frame must be heavy enough for stone, which means slower traverse and higher inertia for wood. The spindle must have stone-level power, which means overkill for most wood applications and higher operating costs.
The exceptions:
Foam and polystyrene cutting (light duty, low forces)
Composite materials that behave like stone in cutting (some engineered products)
Shops with occasional stone work that don't require production-level precision
For serious stone fabrication, dedicated stone equipment is non-negotiable.
9.2 When Two Machines Makes Sense
Most shops that work extensively in both materials eventually purchase dedicated equipment. The productivity gains from optimized machines for each material typically justify the floor space and additional capital.
SUPERSTAR CNC has helped many businesses transition from combination machines to purpose-built equipment. The typical feedback: "We wish we'd done this years ago."
Chapter 10: Frequently Asked Questions
What is the main difference between a wood CNC router and a stone CNC router?
The primary difference is structural rigidity and spindle power. Stone machines have heavy-duty frames and high-torque water-cooled spindles designed for the extreme forces involved in granite and marble machining. Woodworking routers prioritize speed and typically use air-cooled spindles with lighter frames.
Can I use a woodworking CNC router for stone?
No. A woodworking router lacks the structural strength to handle stone cutting forces. The frame would flex, the spindle would overheat, and the machine would likely suffer catastrophic failure. Additionally, woodworking spindles aren't designed for wet cutting, which is essential for stone dust management.
Can I use a stone CNC router for wood?
Technically yes, but it's inefficient. Stone machines run slower, cost more to operate, and require water cooling that creates moisture issues with wood materials. A dedicated woodworking router delivers better results at lower cost for wood applications.
How much does a stone CNC machine cost compared to a wood CNC router?
Stone CNC machines typically cost 2-5× more than equivalent-size woodworking routers. Entry-level stone bridge saws start around $18,000-25,000, while woodworking routers begin around $5,000-8,000. Full stone machining centers with advanced features can exceed $100,000.
What maintenance does a stone CNC router require?
Stone machines require regular coolant system maintenance including filter changes and pH monitoring, frequent diamond tool inspection and replacement, regular frame and guide cleaning to prevent abrasive buildup, and periodic calibration checks. Budget 30-60 minutes daily for maintenance tasks.
Which machine offers better ROI for a small shop?
For most small shops, woodworking routers offer faster ROI due to lower acquisition costs, faster cycle times, and manageable operating expenses. Stone fabrication ROI depends on local market conditions—high-value installations in competitive markets can generate strong returns despite higher equipment costs.
Conclusion: Match Machine to Mission
The CNC wood router vs stone router decision isn't about finding the "better" machine—it's about matching equipment to your actual applications.
Woodworking routers deliver speed, precision, and efficiency for wood and composite materials. Stone processing machines provide the heavy-duty construction necessary for granite, marble, and quartz fabrication.
Choose based on your materials. Choose based on your production requirements. Choose based on your infrastructure capabilities.
SUPERSTAR CNC manufactures both categories from the same engineering standards and quality controls. Our team provides honest recommendations based on your actual needs—not inflated promises designed to close a sale.
If you're unsure which machine fits your business, contact our sales engineers. We'll ask about your materials, volumes, and workspace before recommending anything.
The right machine transforms your capabilities. The wrong machine empties your account while gathering dust.
Written by Aileen Xe, Applications Engineer Manager
With over 12 years of experience in CNC applications engineering and customer consultation, Aileen Xe has guided hundreds of businesses through the CNC router selection process. As Applications Engineer Manager at SUPERSTAR CNC, she leads a team of technical specialists who help customers match machine specifications to real-world production requirements. Her expertise spans material analysis, tooling optimization, and workflow integration across woodworking, stone fabrication, and specialty applications.
