Precision at Every Angle: How We Supplied a 45° Sliding Table Panel Saw to a Pakistani Furniture Factory — CX-MJ45 Export Case Study

A Note Before We Begin

Not every export project is complicated — but the ones that teach you the most are the ones where the client really knows what they want, and pushes you to deliver it exactly right. This Pakistan project was one of those.

The client needed a 3-meter-class sliding table panel saw capable of 45° bevel cuts, built for daily factory production, and shipped to a country where after-sales service from overseas suppliers is notoriously hard to come by. What followed was a project that tested our product knowledge, our customization capability, and our commitment to standing behind every machine we ship.

Here is the full story.

1. The Client's Real Situation

The client runs a panel furniture workshop in Pakistan producing custom cabinets, wardrobes, and interior doors. When they contacted us, they had already been using a basic table saw for years — and had hit a wall with it:

• Chipping on melamine boards: Every cut left torn, splintered edges on the bottom face of their laminated panels. Clients were rejecting finished pieces, and sanding the edges manually was eating into margins.

• No bevel cutting capability: Their existing machine was fixed at 90°. Any angled joint — cabinet door frames, chamfered edges, decorative trims — had to be done by hand or outsourced entirely.

• Sliding table too short: Their current saw's sliding table couldn't handle full 2440mm × 1220mm sheet goods in a single pass, forcing operators to reposition panels mid-cut and introducing alignment errors.

• Operator fatigue and inconsistency: Heavy panels were difficult to feed smoothly, and cut quality varied from operator to operator.

These are not unusual problems. In fact, they describe the production ceiling that most mid-sized Pakistani furniture workshops hit when they try to scale up quality without scaling up their equipment.

2. Why We Recommended the CX-MJ45

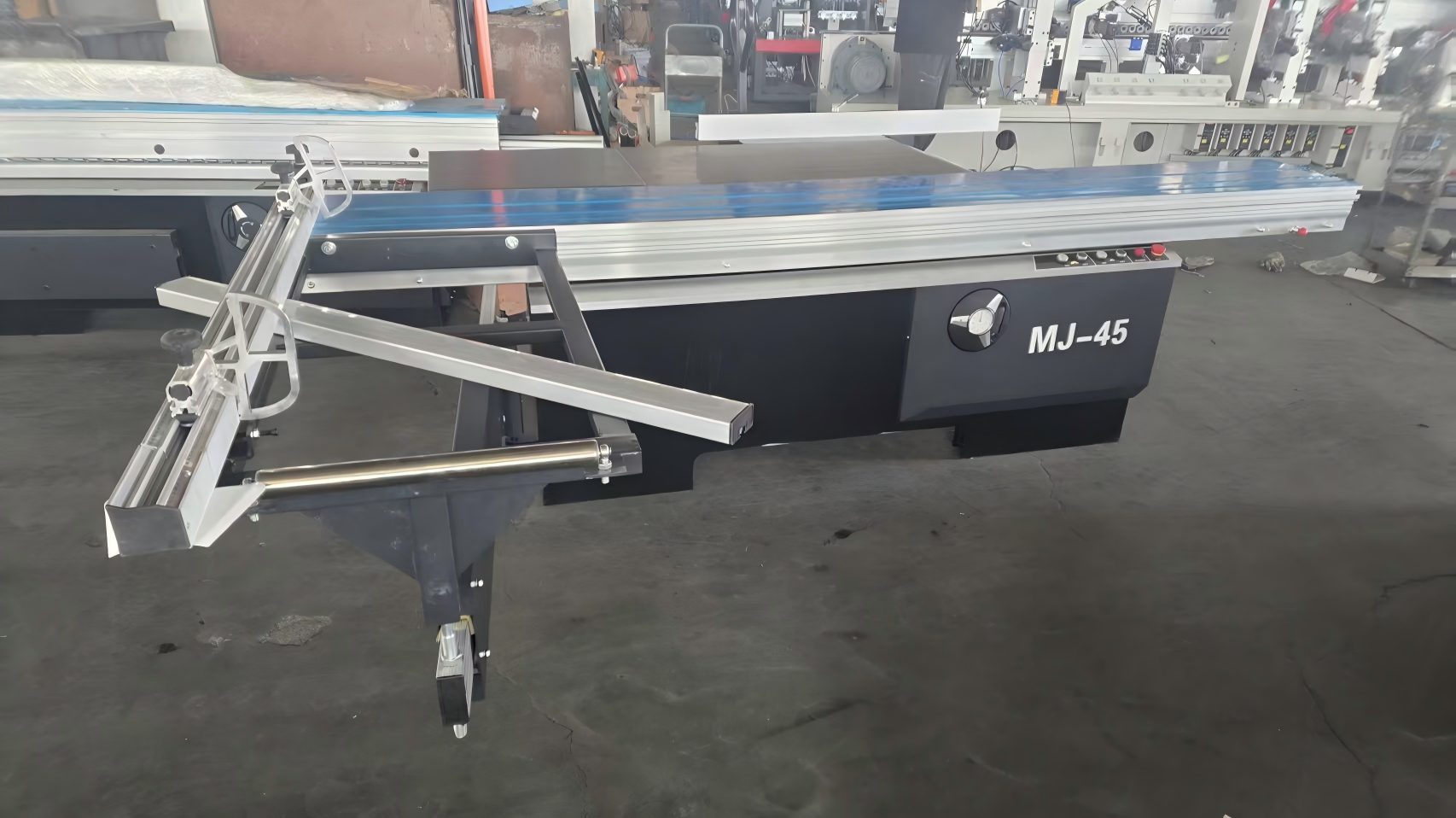

After a detailed consultation — during which we asked the client to share photos of their current setup, their most common panel sizes, and the types of cuts they needed most — we recommended the Superstar CX-MJ45 Wood Sliding Table Panel Saw. Here is why this model was the right fit.

Dual Saw System — The End of Chipping

The CX-MJ45 uses a two-saw architecture that most budget machines simply do not have:

• The 120mm scoring saw (1.1KW, 8000 RPM) runs first, cutting a shallow groove in the bottom face of the panel

• The 300mm main saw (5.5KW, 4000/6000 RPM) then completes the full cut from above

The result: zero tear-out on double-sided melamine, laminate, and veneered boards — even at high feed speeds. For a factory whose biggest quality complaint was chipped edges, this alone justified the investment.

True 45° Bevel Cutting — Electrically Controlled

Unlike manual tilt mechanisms that rely on operator feel, the CX-MJ45 features an electric blade lift and tilt system with a digital angle display. The blade tilts from 0° to 45° with precision and repeatability — every bevel cut lands exactly where it should, regardless of which operator is running the machine.

This opened up an entirely new product category for the client: chamfered cabinet doors, mitered frames, and angled decorative panels — all producible in-house for the first time.

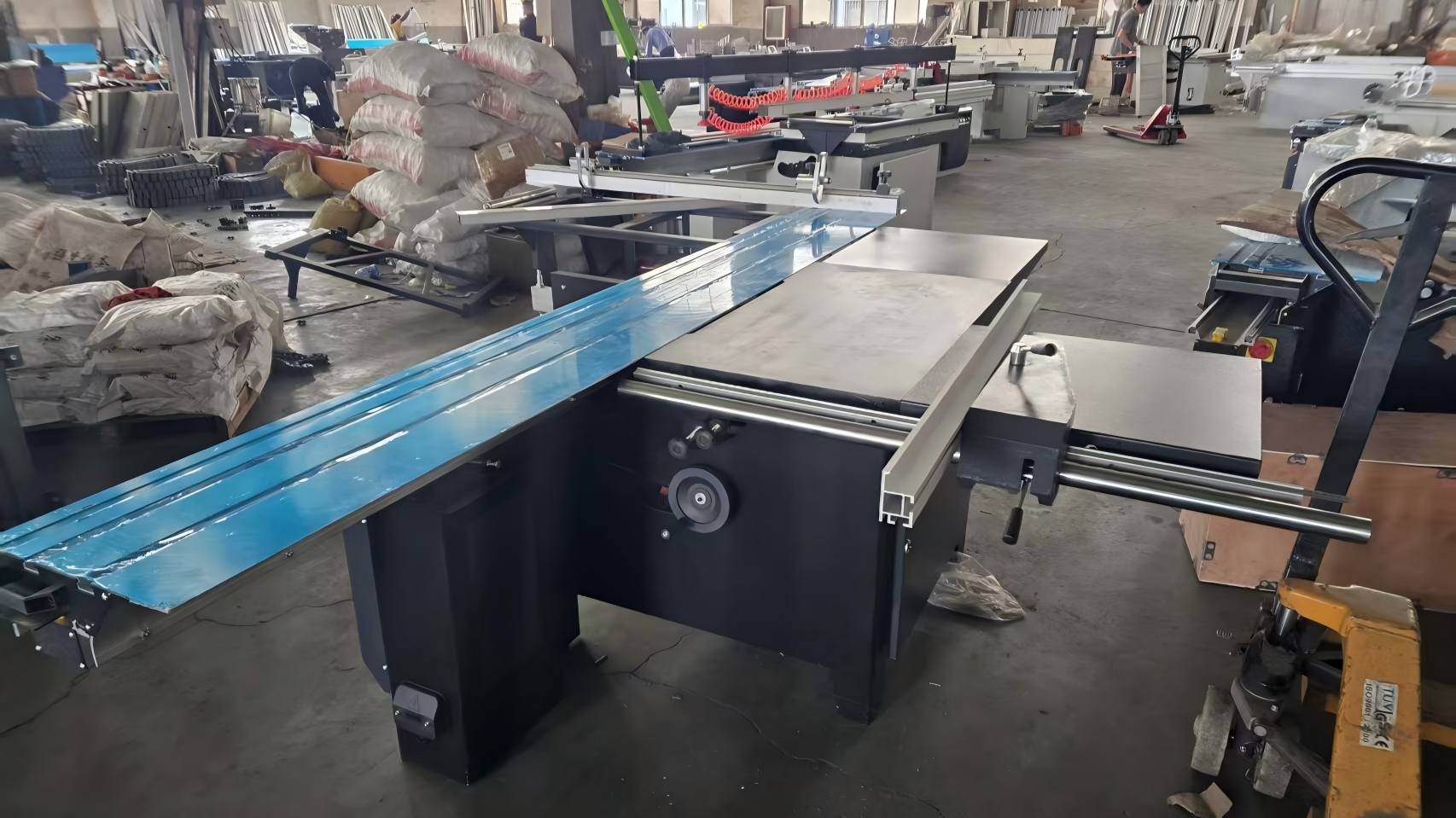

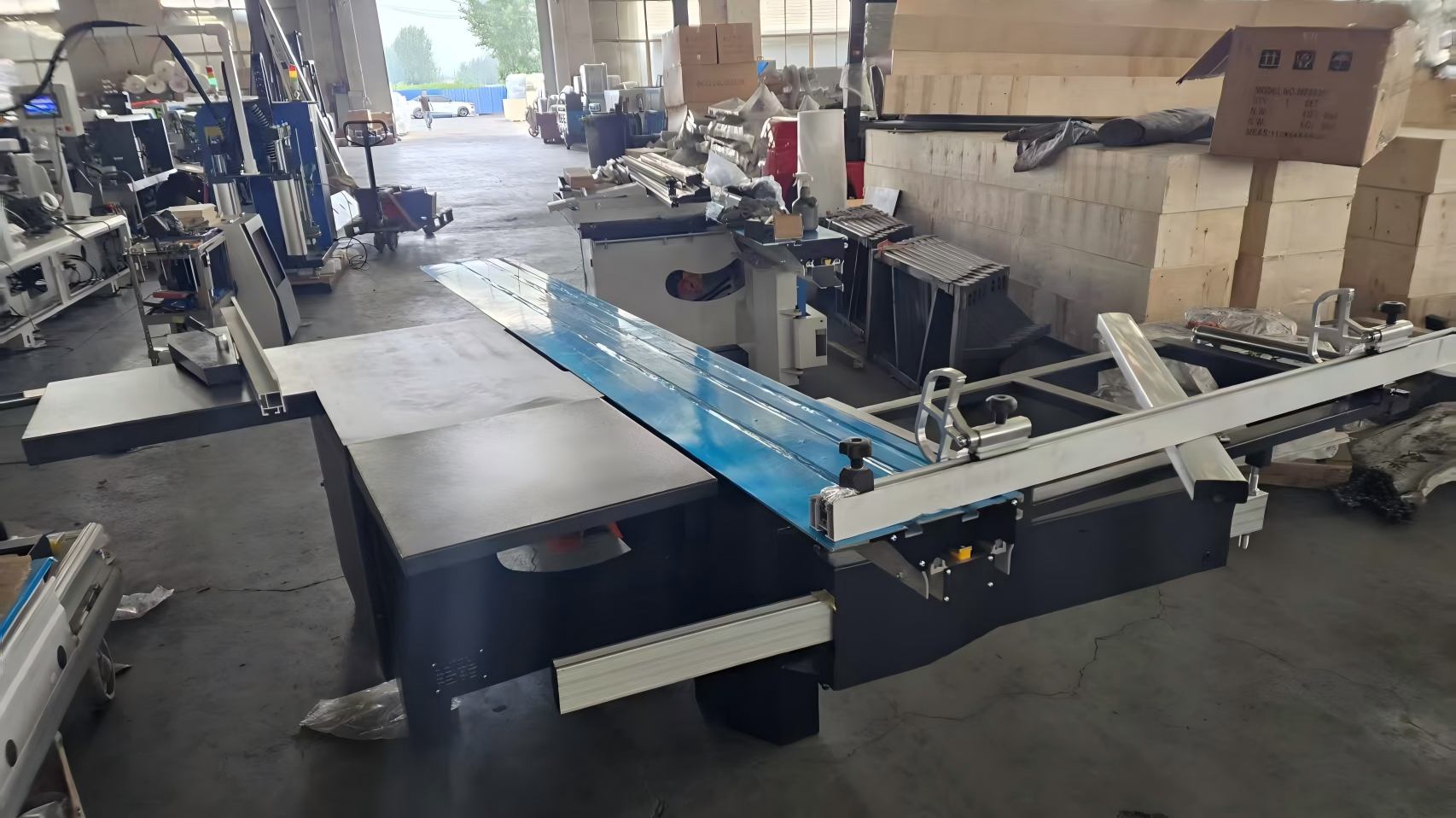

3200mm Sliding Table — Full Sheet in One Pass

The 3200mm duralumin sliding table runs on double-thickened chrome round-bar rails, allowing even a fully loaded 4' × 8' sheet to be fed through in a single, smooth pass. The low-friction rail system means operators can push heavy MDF boards with one hand — reducing fatigue and improving cut consistency across shifts.

Built for Factory Rigors

At 650kg, the CX-MJ45's heavy-duty steel frame absorbs vibration during high-speed cuts. The cast-iron trunnion housing the motor assembly is dynamically balanced, ensuring that cut quality does not degrade over time — even under continuous production loads.

Full Technical Specifications

3. Customization: The Details That Made the Difference

We do not ship standard machines to non-standard situations. For this client, we made the following project-specific adjustments:

① Fence Scale in Metric + ImperialThe client's workshop uses both metric and imperial measurements depending on the project. We confirmed that the precision crosscut fence — fitted with a large-format aluminum ruler — carries dual metric/imperial graduation markings with flip-stops for rapid repeated cuts. No conversion charts, no measurement errors.

② Dust Extraction Port ConfirmationPakistan's workshop environments tend to accumulate sawdust quickly, which clogs rails and shortens machine life. We confirmed the machine's dual dust extraction ports (upper and lower) were correctly sized for the client's existing dust collector hose diameter, and included connection adapters in the shipment.

③ Voltage and Phase VerificationThe CX-MJ45 runs on 380V 3-phase power. Before confirming the order, we asked the client to verify their factory's power supply with their electrician. They confirmed 380V 3-phase availability — and we documented this in the order file to avoid any on-site surprises at installation.

④ Blade and Tooling PackageWe included a starter blade set — main saw blade and scoring blade — pre-matched to the client's primary cutting materials (melamine-faced particleboard and MDF). This meant the machine was ready to cut on day one, without the client needing to source compatible blades locally.

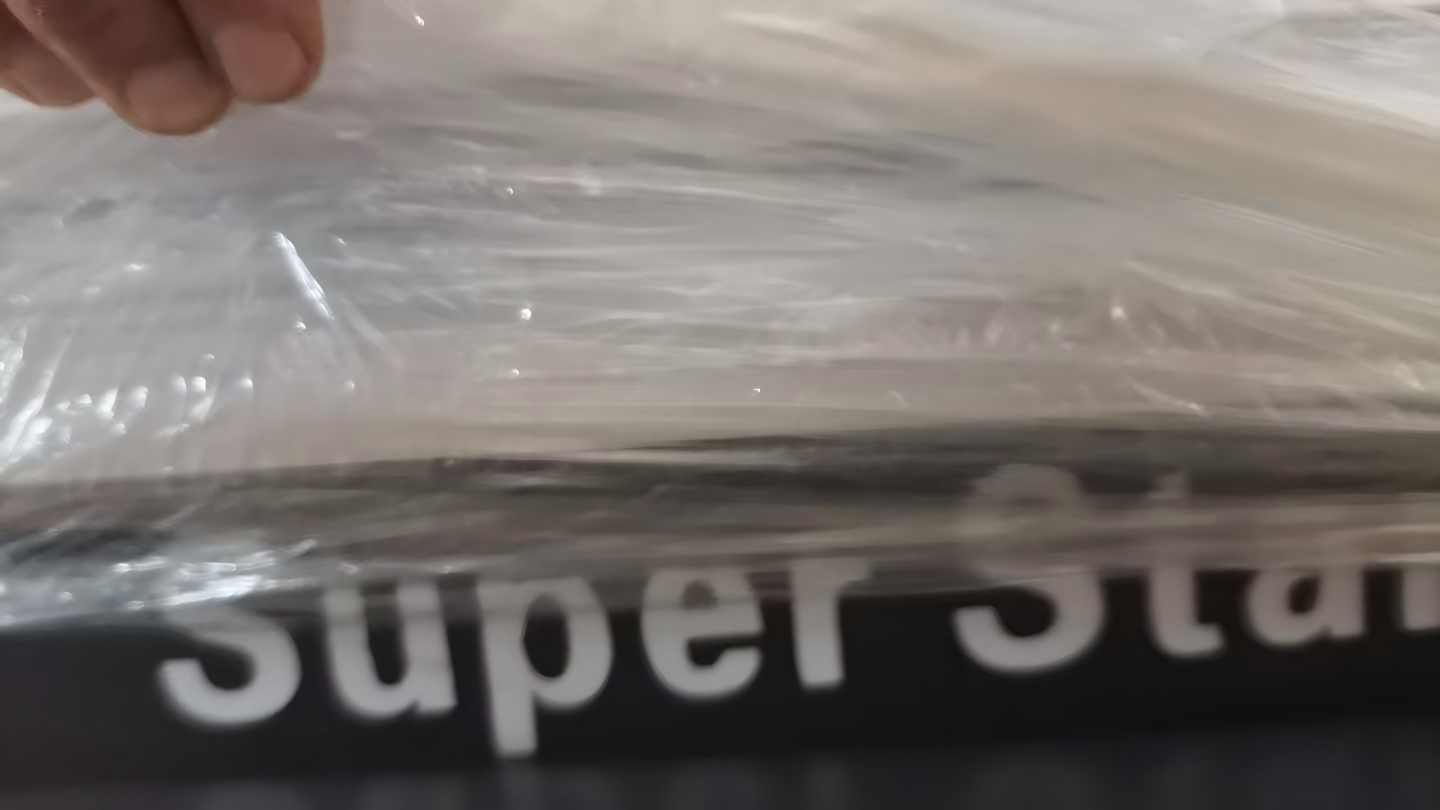

⑤ Export Packaging for Long-Haul FreightAt 650kg, this machine ships as heavy freight. We secured the sliding table carriage, wrapped the chrome rails in protective film, and bolted the machine to a reinforced timber export pallet. The outer crating was braced at all four corners with steel angle brackets, and the crate was clearly marked with weight, center of gravity, and lifting points.

4. Quality Inspection: What We Checked Before It Left Our Factory

Every CX-MJ45 goes through a structured pre-shipment inspection. For this order, the checklist included:

• Geometric accuracy test: We verified that the sliding table runs perfectly parallel to the main saw blade across the full 3200mm travel — tolerance within 0.1mm

• Bevel angle calibration: We tested blade tilt at 15°, 30°, and 45°, confirmed digital display accuracy, and documented the results

• Scoring saw alignment: Confirmed that the scoring blade is precisely centered on the main blade kerf line

• Motor run-in test: Both motors ran under load for 2 hours prior to packaging

• Safety system check: Overload protection, emergency stop, and blade guard function all verified

The client received a video of the final test cuts — including a 45° bevel cut on a melamine board — before we began packaging. They approved the shipment the same day.

5. The Service Journey: From Inquiry to First Cut

Days 1–3 Needs assessment: current setup, panel sizes, cut types, power supply confirmed

Days 4–5 Solution proposal submitted; CX-MJ45 selected; customization details finalized

Days 6–8 Contract signed; production and configuration scheduled

Days 9–25 Machine assembled, calibrated, and run-tested

Days 26–30 Pre-shipment inspection completed; test video sent to client and approved

Days 31–35 Machine packed, palletized, and shipped; full document set dispatched

(Commercial Invoice, Packing List, Bill of Lading, QC Report, Operation Manual)

Days 36–45 Machine arrived at client's factory in Pakistan

Days 46–47 Remote video commissioning via WhatsApp — installation, alignment, first cuts

Day 48 Client in full production

The remote commissioning session was the moment I always find most satisfying. We watched through the client's phone camera as the first full sheet of melamine board slid through the machine — clean, square, chip-free on both faces. The client held the cut edge up to the camera. No words needed.

6. The Value We Delivered

7. What This Case Means for Factories Like Yours

If you are running a furniture or cabinetry workshop and considering upgrading your panel cutting capability, here is what this project can teach you:

✅ Chipping is a machine problem, not an operator problemIf your current saw tears out the bottom face of melamine boards, no amount of operator skill or blade sharpening will fix it permanently. The solution is a scoring saw. The CX-MJ45 has one built in — and it eliminates the problem completely.

✅ 45° capability unlocks new product linesA machine that can only cut at 90° limits what you can make. Adding bevel cutting capability — especially with electric precision control — opens up chamfered doors, mitered frames, and angled joinery that command higher prices in the market.

✅ Sliding table length determines your sheet handling efficiencyIf your sliding table is shorter than your panels, you are introducing error every time you reposition a board mid-cut. A 3200mm table handles standard 2440mm sheets with room to spare — and the chrome rail system makes pushing a 40kg sheet feel effortless.

✅ Verify your power supply before you orderThe CX-MJ45 requires 380V 3-phase power. This is standard in most industrial workshops, but it is worth confirming with your electrician before placing an order. We can help you check — just share your factory's power specifications with us.

✅ Remote commissioning works — if the supplier is committedWe have heard from clients who were nervous about buying a 650kg machine from China without an engineer on-site. Our experience is that a well-prepared remote commissioning session — with the right documentation, a clear checklist, and a patient engineer on video call — gets the machine running just as effectively. The key is that we do not consider the job done until you make your first good cut.

Final Thoughts

This project was a reminder of why we do what we do. A furniture workshop in Pakistan, trying to make better products and grow their business, needed a machine that could keep up with their ambitions. We found the right model, configured it for their specific situation, packed it for a 6,000-kilometer journey, and stayed on the line until the first panel came out clean.

That is the standard we hold ourselves to — not just for Pakistan, but for every client in every country we serve.

If your workshop is ready to cut cleaner, faster, and at any angle — let's talk.
