Product Overview

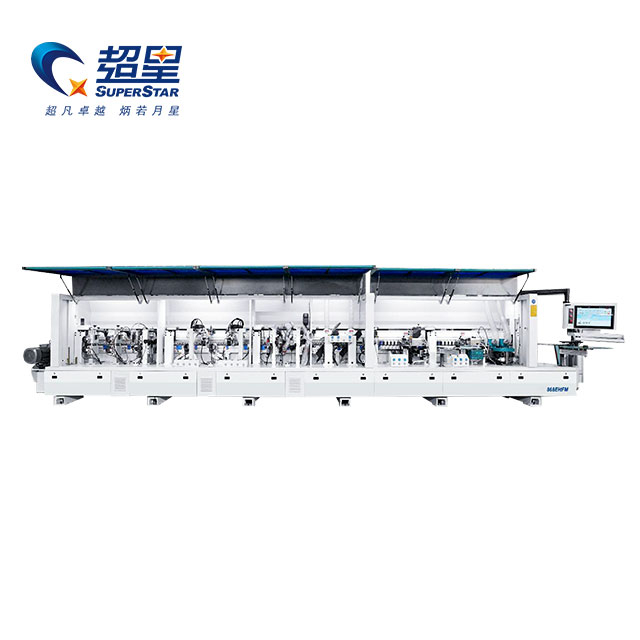

The Superstar CX-668E (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is built for factories that demand high throughput without sacrificing finish quality. Standard edge banders max out around 15m/min, causing bottlenecks in high-volume cabinet and wardrobe production lines. The 668E solves this with a robust 18.47kw power system that drives the conveyor at speeds up to 25m/min.
Beyond speed, this machine features a highly intelligent control system and is constructed using premium brand configurations. It is specifically engineered to adapt to both high and low-temperature climates, ensuring stable glue application and consistent mechanical performance regardless of your factory's geographic location.
Core Advantages
Ultra-High Production Speed: With adjustable feed speeds of 18, 23, and 25 meters per minute, the 668E drastically reduces cycle times, making it the perfect centerpiece for mass-production furniture lines.
Complete 13-Step Functional Workflow: From initial separation and pre-milling to double-buffing and diamond tool finishing, this machine handles every aspect of edge preparation and finishing in a single pass.
Double-Track Three-Motor End Trimming: Ensures a perfectly flush cut at both the leading and trailing edges of the board, even when operating at maximum feed speeds.
Intelligent Tracking Chamfer: Automatically tracks the corners of the workpiece to create a smooth, rounded profile, eliminating the sharp edges that require manual sanding.
Technical Parameters
Feature | Specification |
Model | CX-668E |
Brand | Superstar CNC |
Motor Power | 18.47 kw |
Feed Speed | 18 - 23 - 25 m/min |
Panel Thickness | 10 ~ 55 mm |
Panel Width | ≥ 60 mm |
Edge Tape Thickness | 0.4 - 3 mm |
Edge Tape Width | 15 ~ 65 mm |
Overall Size (L×W×H) | 9500 × 900 × 1700 mm |
Detailed Operational Process
The CX-668E utilizes a highly advanced, multi-station workflow to guarantee perfect edge adhesion and a seamless finish:
Separation & Pre-Milling: Sprays a release agent and mills the raw board edge to eliminate saw marks and chipping.
Gluing: Applies hot melt adhesive evenly to the board.
Double Track Three-Motor End Trimming: High-speed saws perform precision flush cuts on the front and back ends.
Rough & Fine Trimming: Removes excess top and bottom tape overhang.
Paring-Off & Tracking Chamfer: Profiles the corners to a smooth radius.
Scraping & Cleaning: Removes machining lines from the PVC and cleans off residual glue.
Buffing 1 & Buffing 2: Dual cloth wheel stations polish the edge to restore the tape's original color and shine.
Digital Display Precision Adjustment: Utilizing diamond tools, operators can make micrometer-level adjustments instantly.
Applicable Industries & Materials
Target Industries: Mass production of custom cabinetry, wardrobes, office desks, commercial displays, and high-end panel furniture.
Compatible Panels: MDF, Particleboard (Chipboard), Plywood, Blockboard, and Solid Wood.
Compatible Edge Tapes: PVC, ABS, Acrylic, Melamine, and Wood Veneer.
Why Choose Superstar CNC?
Industrial Heavyweight Design: Weighing in as a massive 9.5-meter long machine, the heavy steel frame absorbs the vibrations created by the high-frequency trimming motors, guaranteeing long-term precision.
Climate Resilient: Specially designed gluing and pneumatic systems ensure the machine performs flawlessly whether your factory is in a humid tropical zone or a cold northern climate.
Comprehensive Turnkey Setup: Jinan Jinshengxing Machinery provides full installation guidance, English manuals, and software integration to ensure the 668E syncs perfectly with your existing CNC nesting routers.
Frequently Asked Questions
Q: Why is Pre-Milling important?
A: When panel saws cut melamine boards, they often leave micro-chips or a slightly uneven edge. The pre-milling station uses diamond cutter heads to shave off a tiny fraction of the board right before gluing, ensuring a perfectly flat, chip-free surface for maximum glue adhesion.
Q: Can I adjust the speed for different materials?
A: Yes. The machine features a variable speed drive (18m, 23m, and 25m/min). You can slow the machine down for very thick 3mm PVC tape or run it at maximum speed for thin 0.4mm melamine tape.
Q: Does it require a specialized dust collection system?
A: Yes, with 13 working stations generating PVC shavings and wood dust at high speeds, the machine requires connection to an industrial dust extraction system to keep the sensors and motors clean.
Maximize Your Panel Furniture Output
Eliminate production bottlenecks and deliver flawless cabinet edges. Upgrade to the Superstar 668E Automatic High-Speed Edge Banding Machine.
Request a Factory-Direct Quote Today
